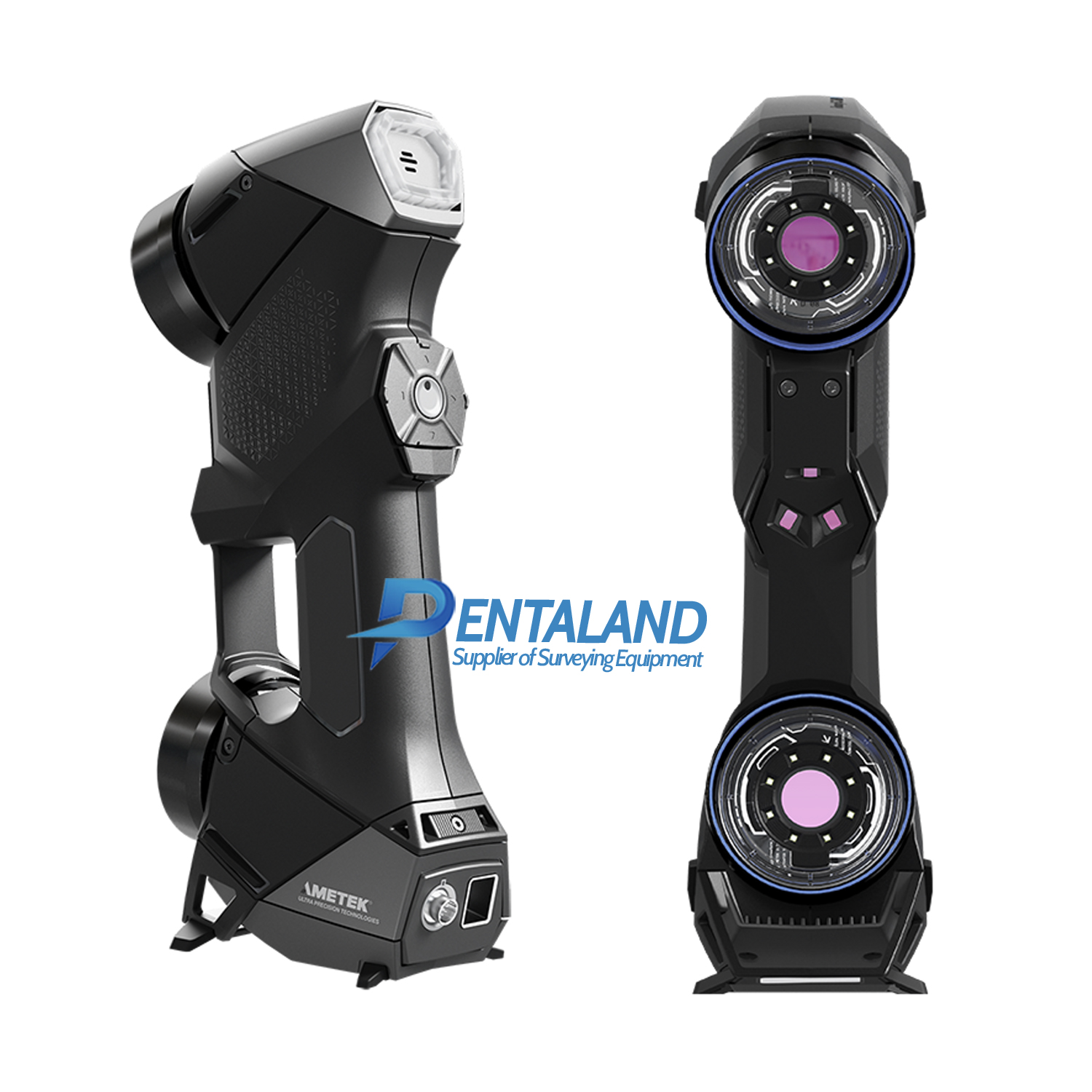

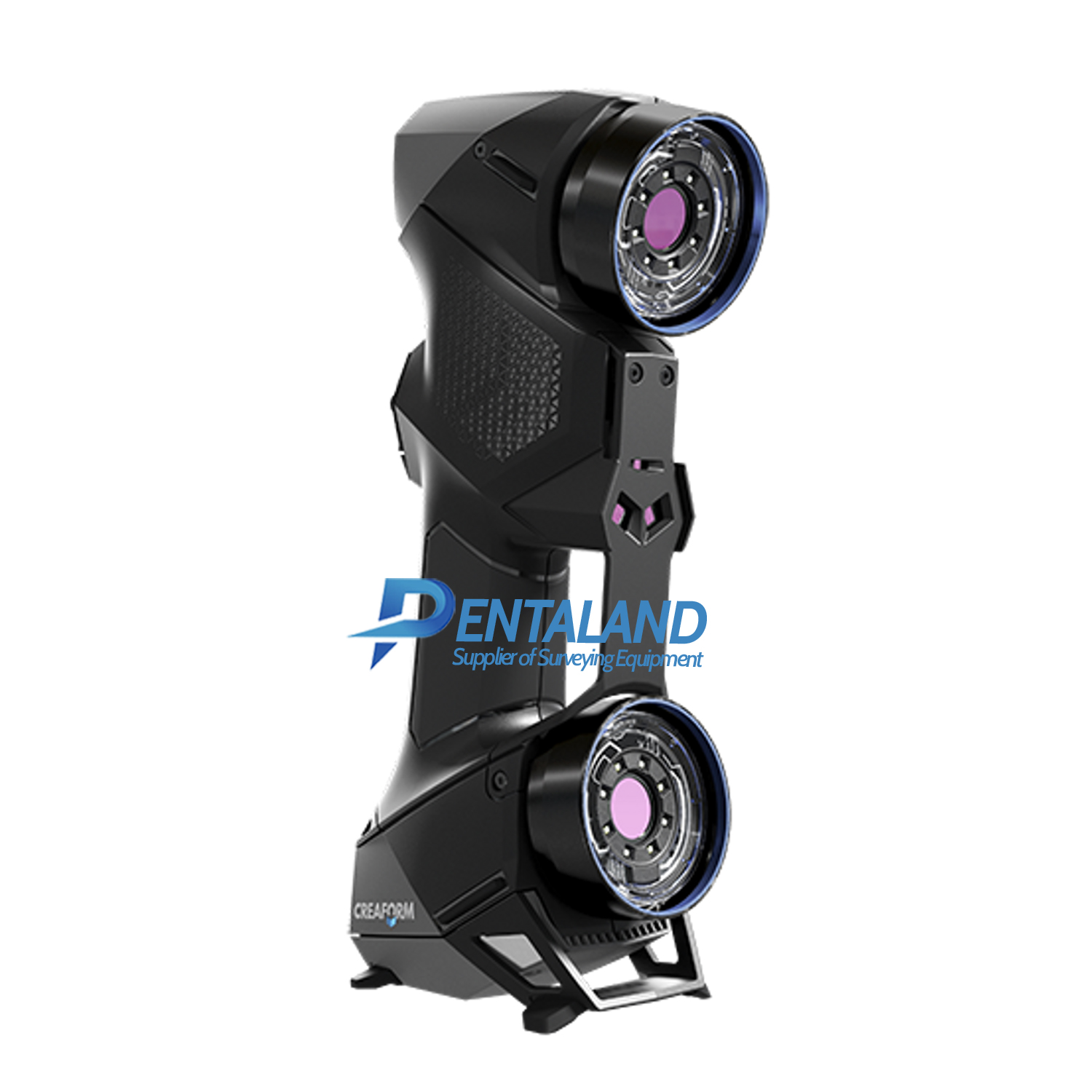

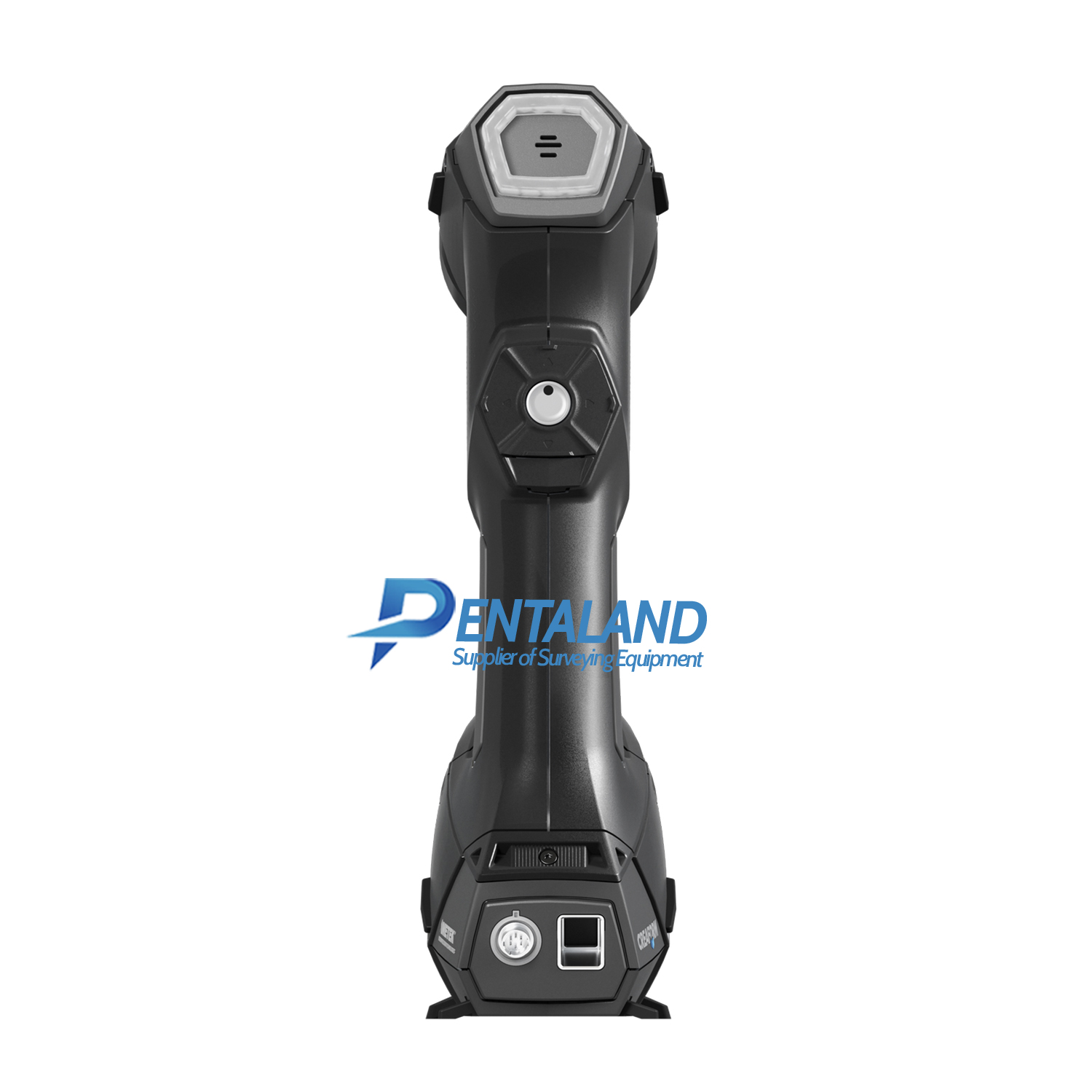

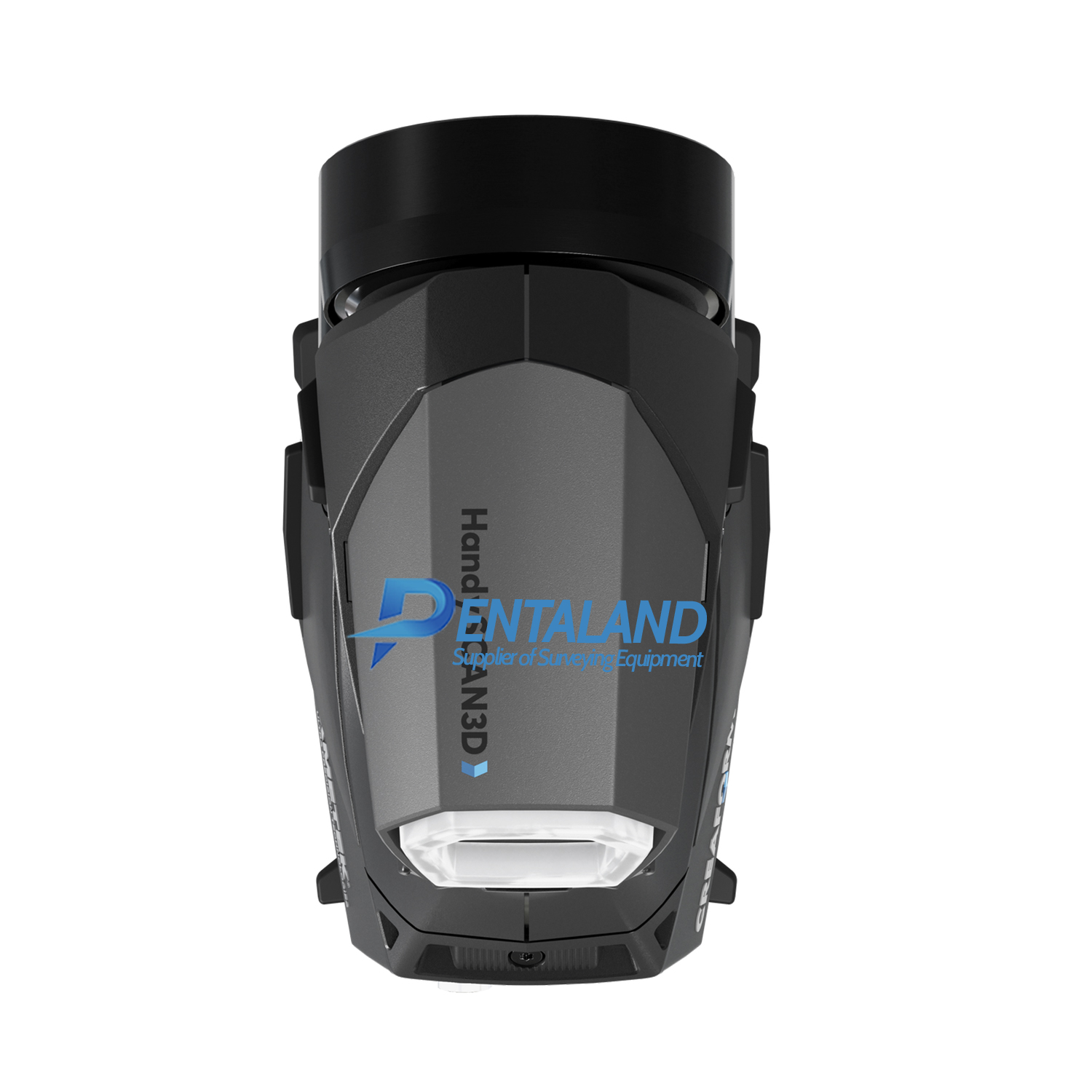

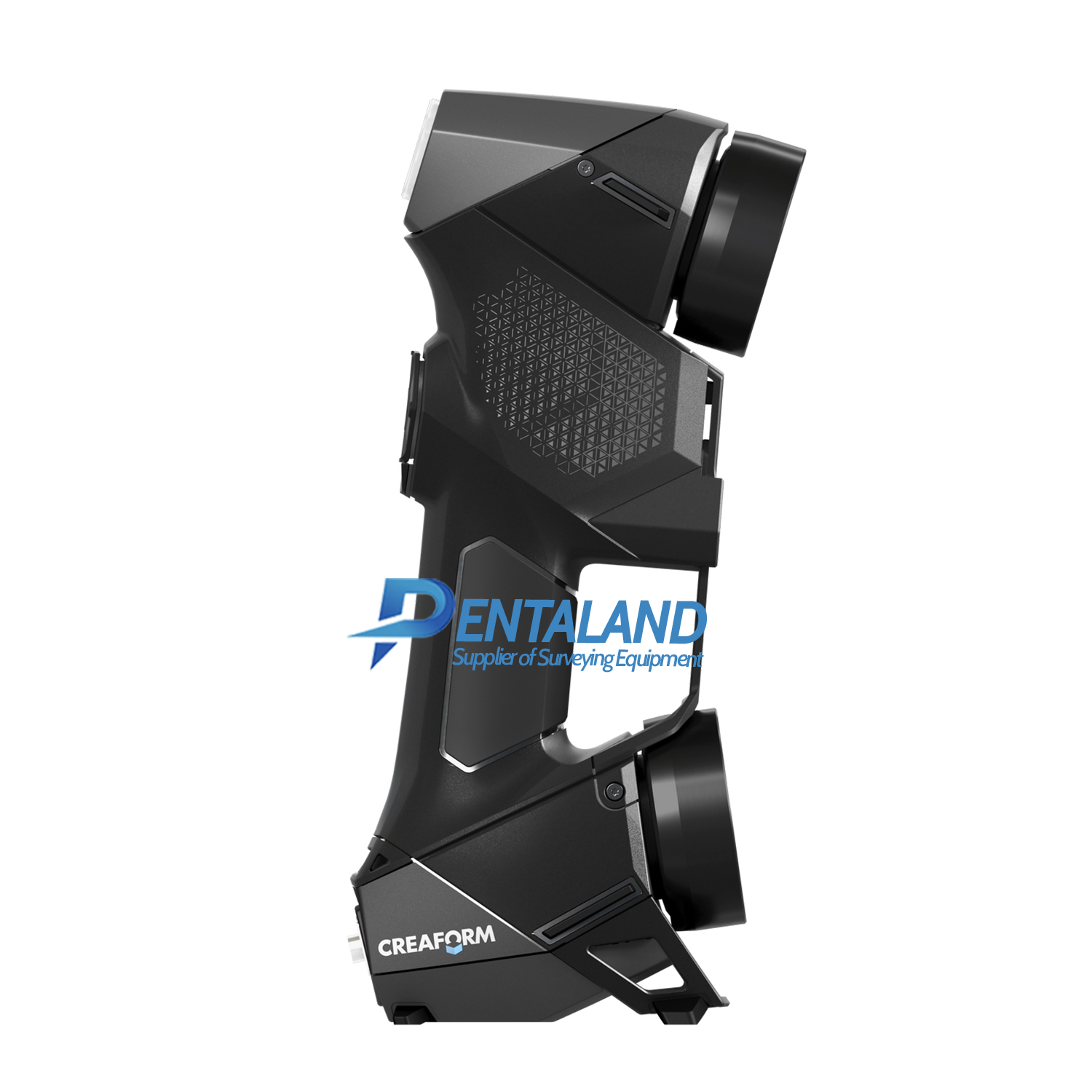

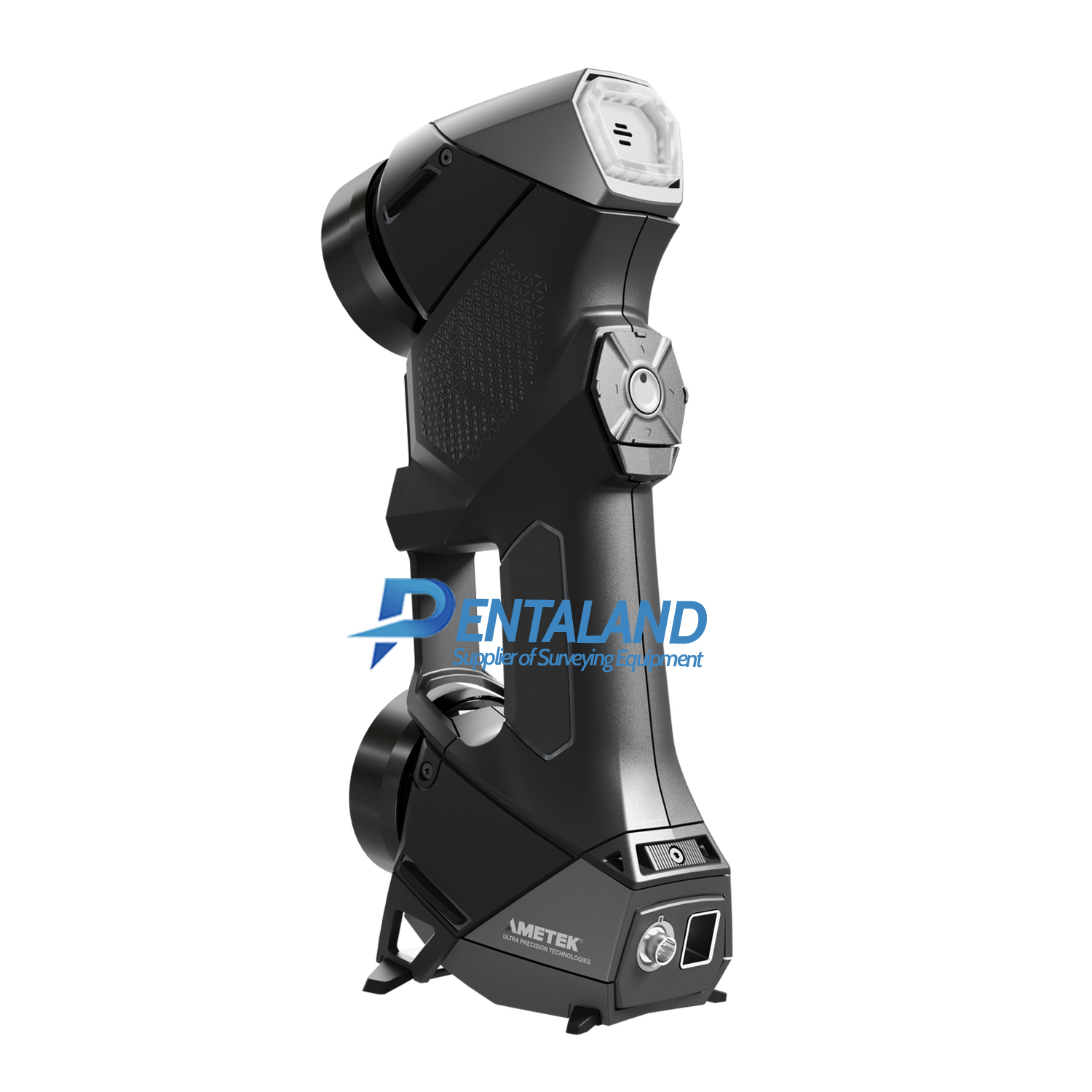

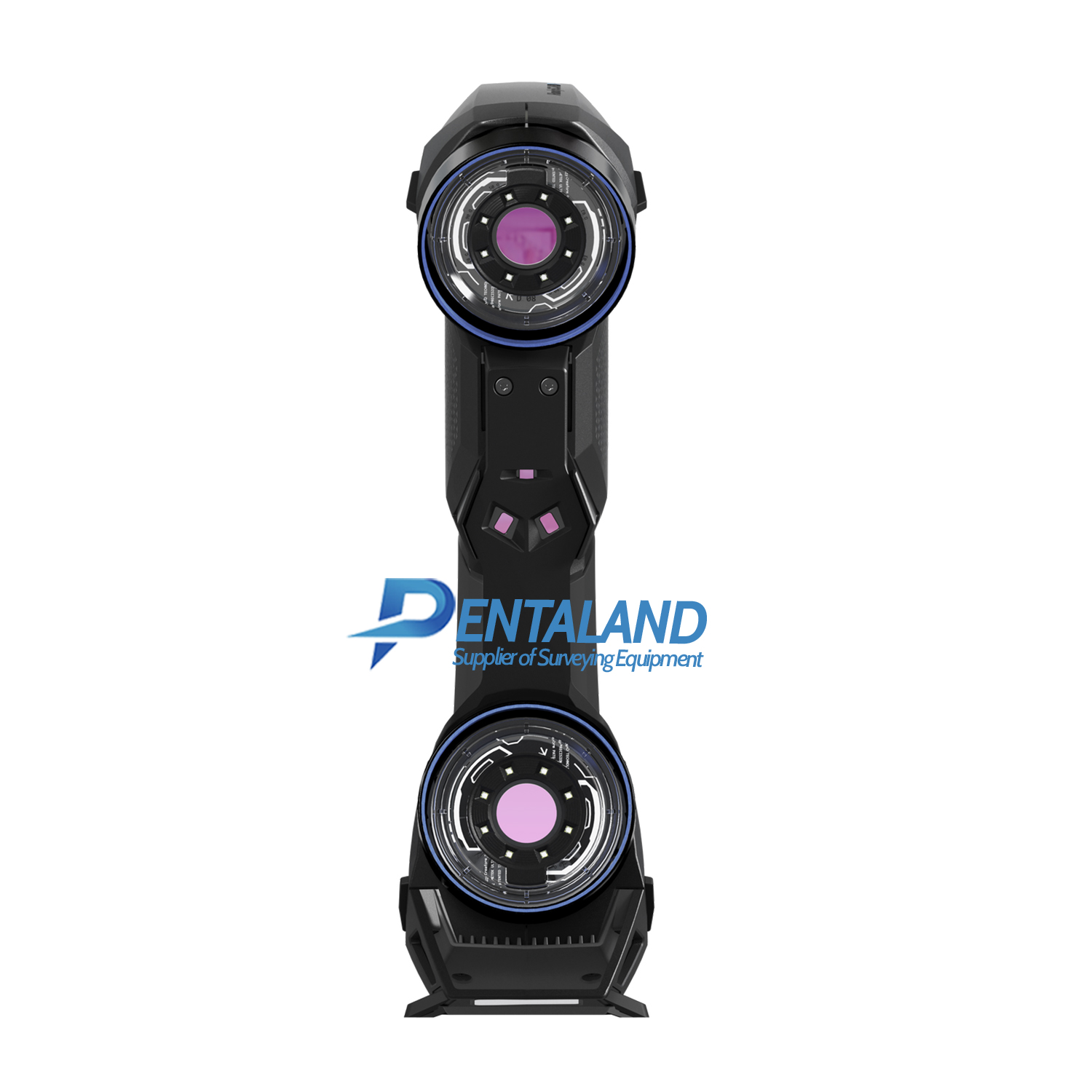

Creaform HandySCAN BLACK Elite LIMITED

$50,900

For sale Creaform HandySCAN BLACK Elite LIMITED 3D Scanner, Faster 3D Scanning Process is easy-to-use and generates highly accurate and repeatable results

Share on:

For sale the new Creaform HandySCAN BLACK Elite LIMITED 3D Scanner

The new Creaform HandySCAN BLACK Elite LIMITED 3D Scanner, Faster 3D Scanning Process.
BLACK Series is the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere.
Multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file!

  •     Ready-to-use files
  •     High measurement rate - Up to 1,300,000 measurements/s
  •     Large scanning area of 11 laser crosses
  •     Quick setup - Up-and-running in less than 2 minutes

Product Includes:
    HandySCAN Black Elite Limited Portable 3D Laser Scanner
    VXelements data acquisition software
    Carrying Case
    4 Meter Custom USB Cable
    Power Supply
    Calibration Plate
    2,000 Reflective Adhesive Scanning Targets
    Interactive E-learning Subscription
    12-month Customer Care Program

WHEN YOU ARE LOOKING FOR THE MOST ACCURATE PORTABLE 3D MEASUREMENT SOLUTION ON THE MARKET
The HandySCAN BLACK|Elite Limited has been designed
specifically to address the needs of the most demanding
dimensional metrology professionals in the industrial
and manufacturing sectors. It can tackle any quality
control or product development applications where
tolerances require increased accuracy, while remaining
portable and flexible.
Creaform has been able to pinpoint and identify
key factors, from the assembly methods to a
dedicated calibration cell, that allows for optimized
manufacturing and calibration processes. Combined
with the HandySCAN 3D|BLACK Series integrated
photogrammetry capabilities, this enables Creaform’s
flagship metrology-grade 3D scanners to deliver
12 microns accuracy, setting a new industry standard
for handheld devices.
ACCURACY OF 0.012 mm
Powered by Smart resolution that highlights fine details
and high curvature
Integrated photogrammetry
ISO 17025 accredited calibration, based on VDI/VDE part 3
standard
PORTABILITY
Lightweight, take it anywhere you need
It is perfect for on the go scanning in any environmental conditions
SIMPLICITY & VERSATILITY
Scan various object sizes and surface types in real-time—all with
the same device
Ideal for Creaform application software, such as: VXmodel module,
VXinspect module and VXintegrity
SPEED
Large scanning area of 11 laser crosses
(+ 1 extra line for hard to reach area)

Simplicity and Versatility
With its user-friendly interface and ergonomic design, this 3D measurement solution is easy-to-use and has a short learning curve. Its versatility gives the opportunity to scan various object sizes and surface types in real time—all with the same device.

VXelements
The HandySCAN 3D comes with VXelements, which powers our entire suite of 3D scanning and measurement technologies. It combines all the essential tools you need from data acquisition to CAD Software, in a user-friendly, simplified and sleek working environment.

Software Optional:
VXelements (INCLUDED)
VXmodel
VXinspect
VXmodel / VXinspect Bundle
DezignWorks for SolidWorks
DezignWorks for AutoDesk Inventor

Accuracy: 0.012mm (0.0005”)
Light Source: 11 blue laser crosses (+ 1 extra line)
Color Capture: No
Accuracy Certification: ISO 17025
Scanning Speed: 1,300,000 measurements per second
Scanning Area: 11 laser crosses

HandySCAN BLACK Elite Limited Brochure
