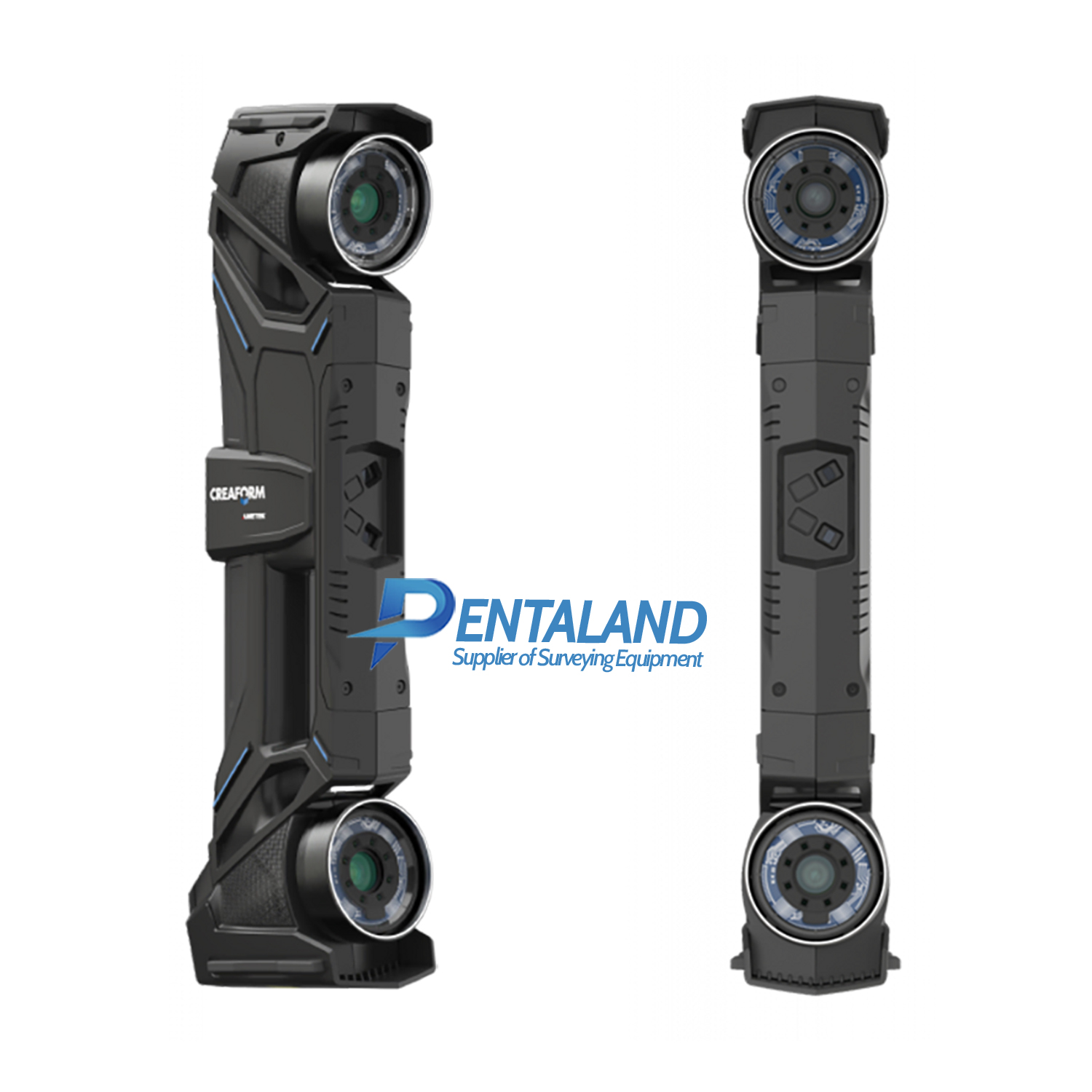

Creaform HandySCAN MAX Elite 3D Scanner

For sale the new Creaform HandySCAN MAX Elite 3D Scanner

The new Creaform HandySCAN MAX Elite 3D Scanner, the reference in portable metrology‑grade 3D scanner.

Combining the effect of portability, accuracy, speed, and simplicity, which are inherent to the HandySCAN 3D line-up, the new MAX Series is optimized to acquire highly accurate 3D measurements on large and complex parts typically present in the aerospace, transportation, energy, mining, and heavy industries.

Engineered to capture fine details and scan large volumes equally well, the HandySCAN 3D|MAX Series enables professionals to measure large parts and assemblies in a simpler scanning process, resulting in high-quality 3D scans in just a matter of minutes.

• Accuracy(1)  0.075 mm(0.0030 in)
• Volumetric accuracy(2)  0.100 mm + 0.015 mm/m (0.0039 in + 0.00018 in/ft) (based on part size)

Product Includes:
    HandySCAN MAX Elite Portable 3D Laser Scanner
    VXelements data acquisition software
    Carrying Case
    8 Meter Custom USB Cable
    Power Supply
    2 Calibration Ball Bars
    Reflective Adhesive Scanning Targets
    Interactive E-learning Subscription
    12-month Customer Care Program

Software Optional:
VXelements ( INCLUDED)
VXmodel
VXinspect
VXmodel / VXinspect Bundle
DezignWorks for SolidWorks
DezignWorks for AutoDesk Inventor

Accuracy: 0.075mm (0.0030”)
Probing: No
Light Source: 38 Blue Laser Crosses
Color Capture: No
Accuracy Certification: ISO 17025
Scanning Speed: 2,250,000 measurements per second

*HandySCAN MAX 3D Scanner w/ VXelements ($29,200)
Accuracy: 0.150mm (0.0059”)
Probing: No
Light Source: 38 Blue Laser Crosses
Color Capture: No
Accuracy Certification: ISO 17025
Scanning Speed: 2,250,000 measurements per second
