RESEPI Hesai XT32 Single Antenna Receiver

$19,900

for sale RESEPI Hesai XT32 Single Antenna Receiver Lidar with camera

Share on:

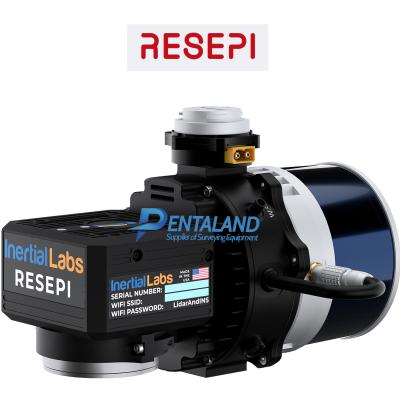

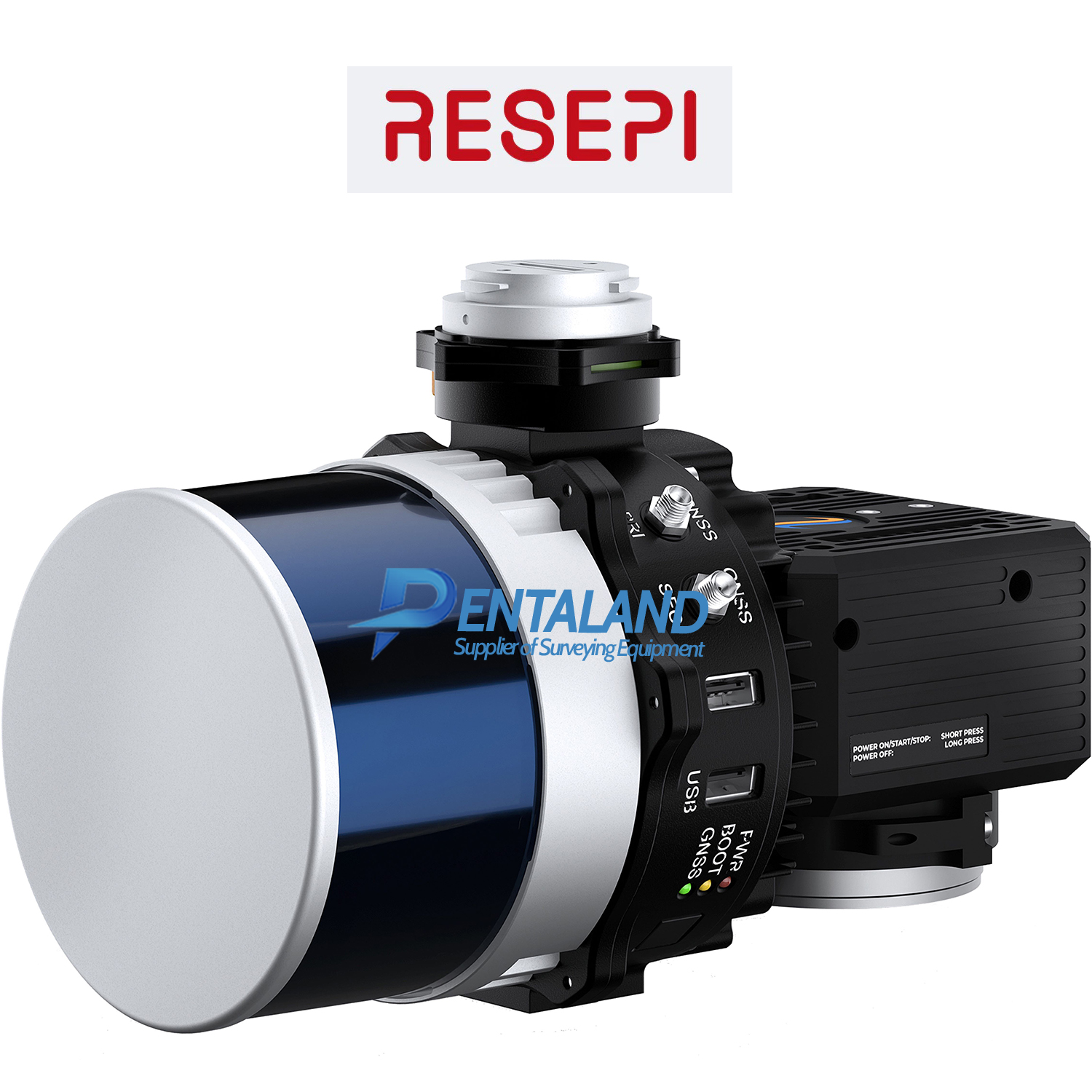

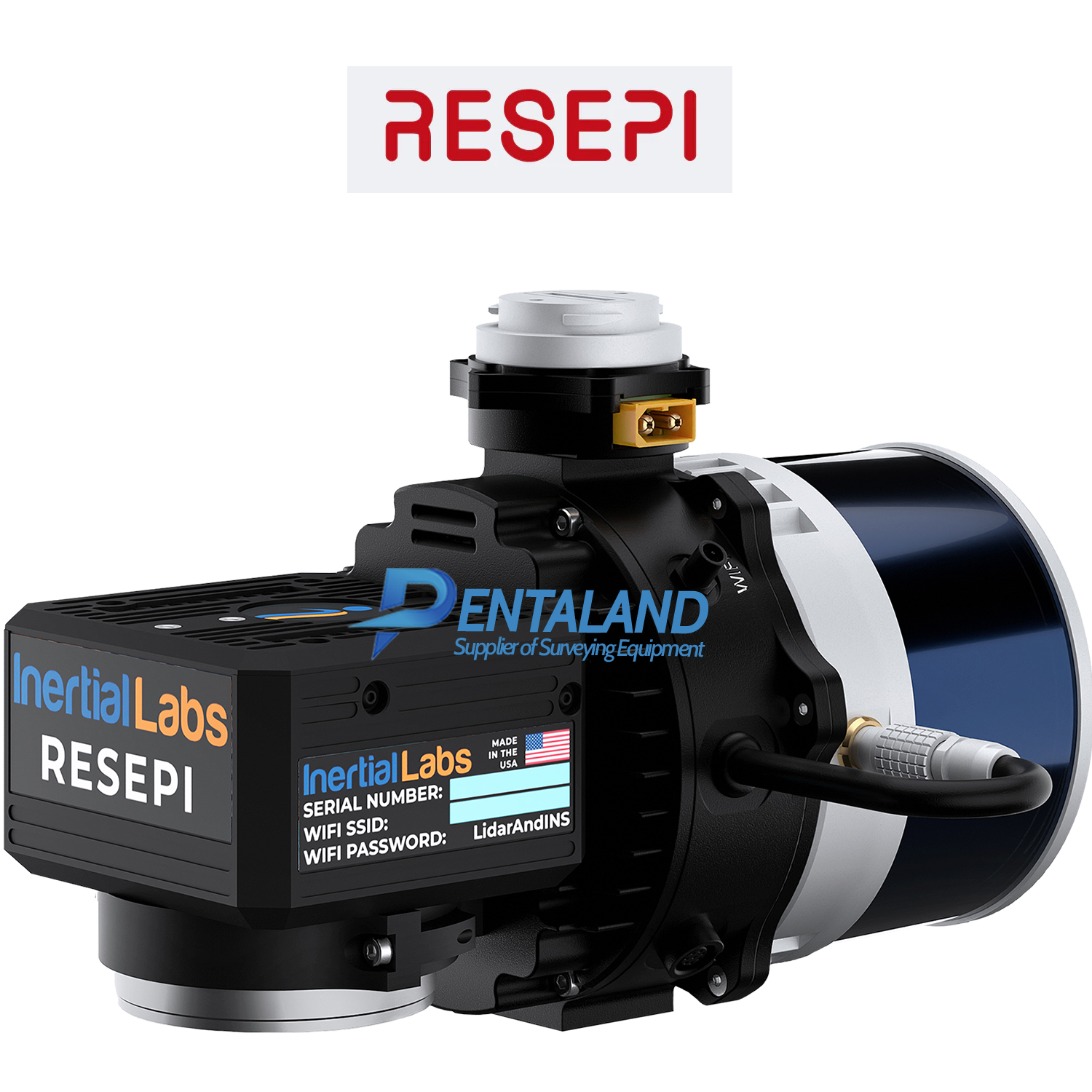

For sale the new RESEPI Hesai XT32 Single Antenna Receiver Lidar

The new Hesai XT32 Single Antenna Receiver Lidar Unit comes Full Kit with Camera

W/ RESEPI Lidar PC Master Pro Data Processing Software Annual

Product Includes:

  • 270 Degree Field of View + Fewer Total Passes Required to Collect Data, Less Flight Time
  • Hesai XT32 Single Antenna Receiver
  • The Single Antenna Receiver is designed for Drone mounting lidar data collection.
  • Camera, Lens, USB hub, wall plug and barrel adapter
  • RESEPI Lidar PC Master Pro Data Processing Software Annual
  • RESEPI Lidar Hard Case

*Vehicle mounted collection would require a dual antenna receive version of the unit.


Product Details:

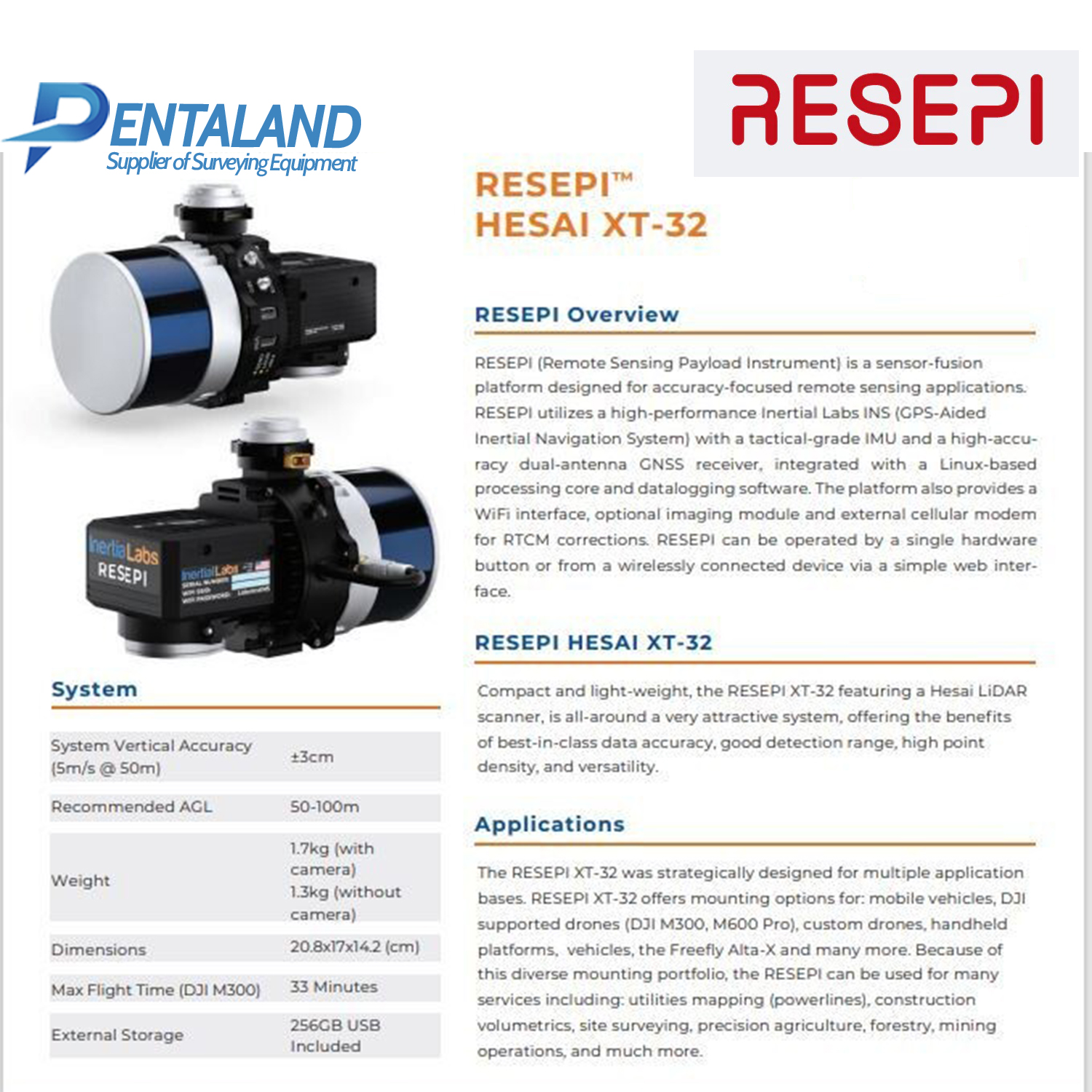

The Hesai XT32 RESEPI (Remote Sensing Payload Instrument) is a sensor-fusion platform designed for accuracy-focused remote sensing applications. RESEPI utilizes a high-performance Inertial Labs INS (GPS-Aided Inertial Navigation System) with a tactical-grade IMU and a high-accuracy dual-antenna GNSS receiver, integrated with a Linux-based processing core and datalogging software. The platform also provides a WiFi interface, optional imaging module and external cellular modem for RTCM corrections. RESEPI can be operated by a single hardware button or from a wirelessly connected device via a simple web interface.

This XT32 LiDAR Scanning & Mapping Solution Compact and light-weight, is all-around a very attractive system, offering the benefits of best-in-class data accuracy, good detection range, high point density, and versatility.

System Vertical Accuracy (5m/s @ 50m) +- 3cm

Recommended AGL 50-100m

Weight 1.7kg (with camera) 1.3kg (without camera)

Dimensions 20.8x17x14.2 (cm)

Max Flight Time (DJI M300) 33 Minutes

External Storage (Included) 256GB USB Included

Free Work Flow Videos
