Used Leica Absolute AT960 SR Laser Tracker

Buy Demo Used Leica Absolute AT960 SR Laser Tracker bundle with controller, T-probe III, Ready to go and calibrated by Leica authorized, 12 month Leica extension warranty

The Leica Absolute Tracker AT960-SR (Short Range) is a high-precision, portable laser tracker designed for high-end metrology applications that require high accuracy within a smaller workspace. It is the entry-level model in the AT960 series, optimized for users who don't need the extensive range of the MR, LR, or XR variants but still require 6 Degrees of Freedom (6DoF) functionality.

Core Specifications
Measurement Volume (3D): Up to 12 meters.
Measurement Volume (6DoF): Up to 10 meters in diameter.
Accuracy (Reflector): \(\pm 15 \mu m + 6 \mu m/m\) (Maximum Permissible Error).
Data Rate: Real-time output up to 1,000 points per second.
Portability: Weights less than 14 kg (tracker unit only).
Environmental Protection: IP54 rated for protection against dust and water ingress in harsh industrial environments.

Key Features
All-in-One Design: Integrates all necessary equipment for 6DoF probing, scanning, and reflector measurement into a single unit that fits in one flight case.
Absolute Interferometer (AIFM): Combines the high speed of an interferometer with the accuracy of an absolute distance meter, allowing for rapid measurement of moving targets without a "home point".
PowerLock Technology: Automatically re-establishes an interrupted laser beam within a wide field of view without user intervention.
Battery & Wi-Fi: Supports hot-swappable battery operation and built-in Wi-Fi for completely wireless, cable-free operation.
6DoF Compatibility: Fully compatible with accessories like the Leica T-Probe, Leica T-Scan 5, and the Absolute Scanner AS1 for probing hidden points and high-speed surface scanning.

Leica Absolute AT960 SR Laser Tracker Includes:

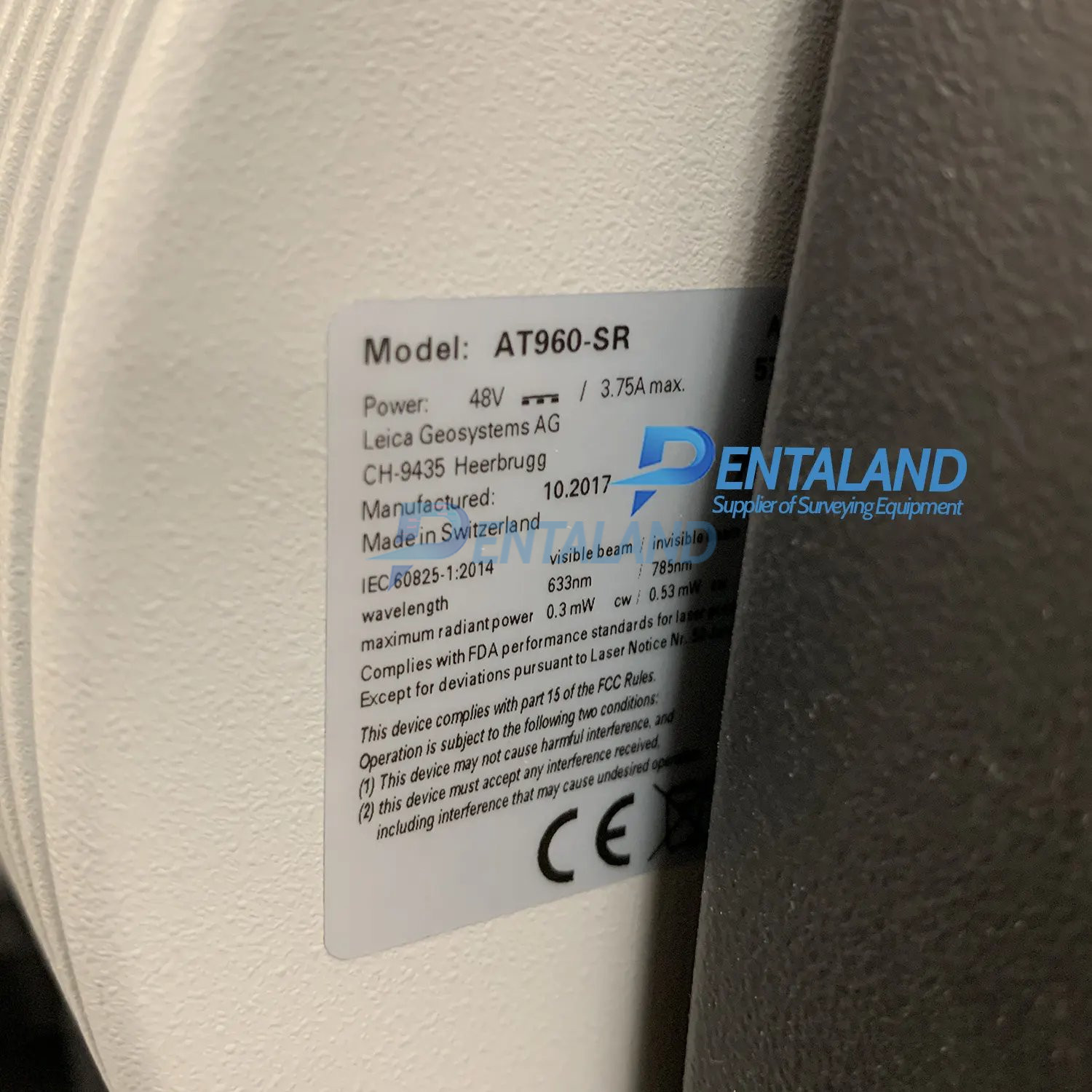

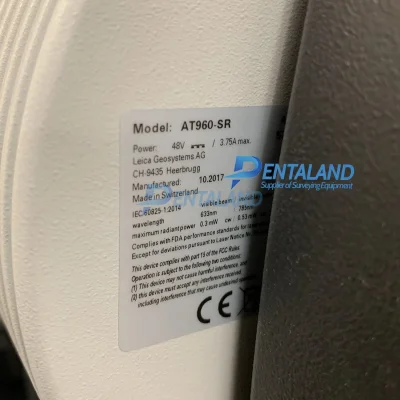

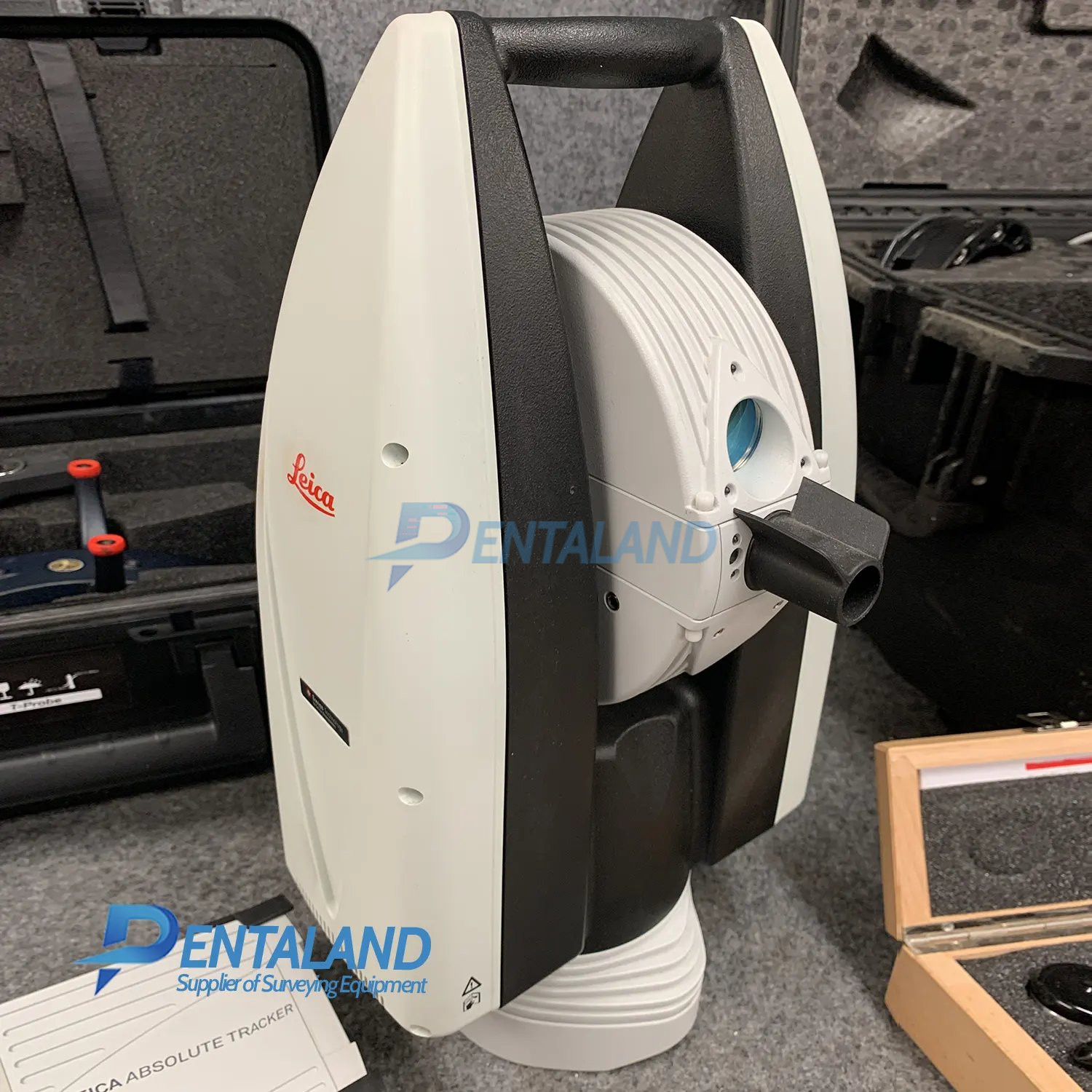

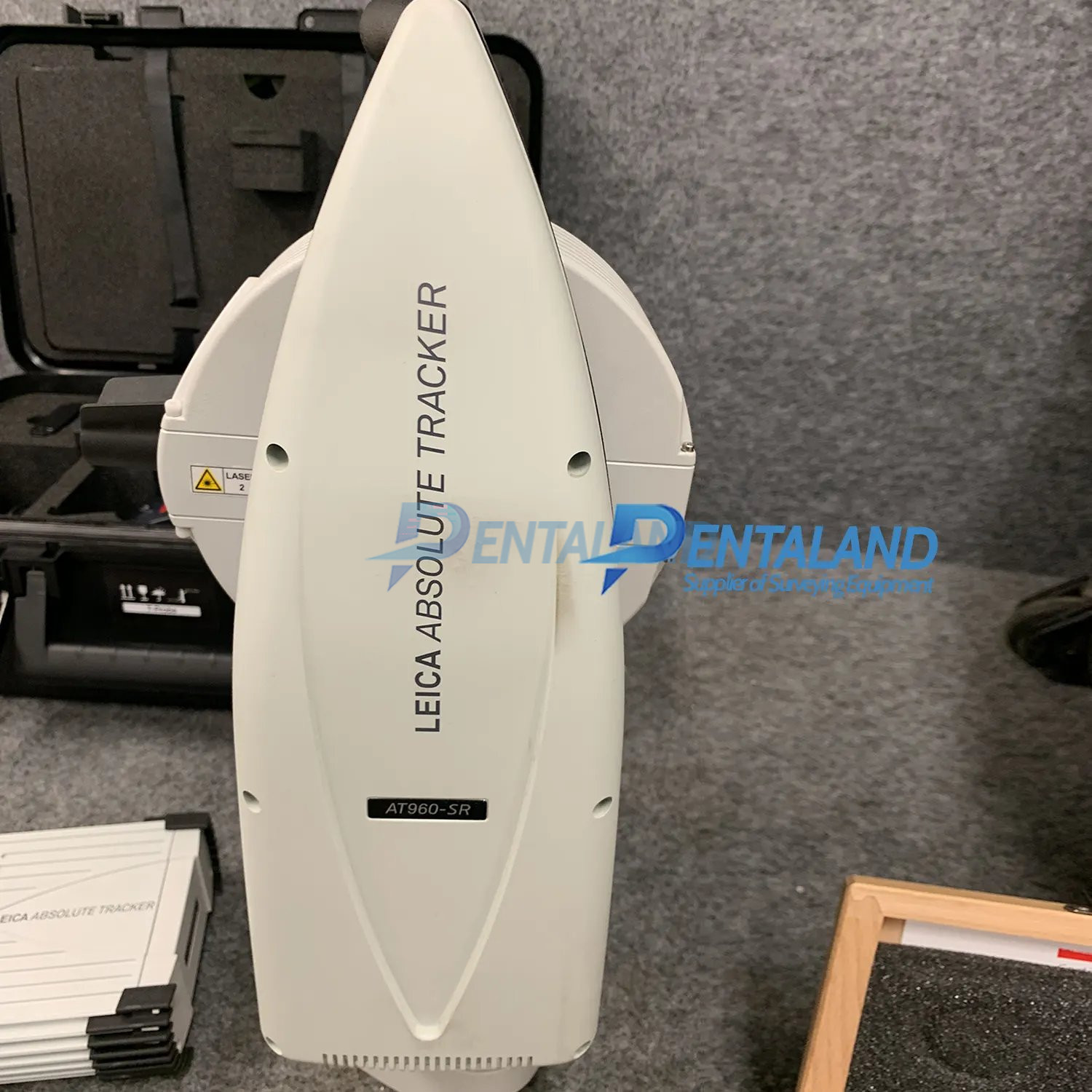

•     Leica AT960-SR Absolute Tracker Scanner

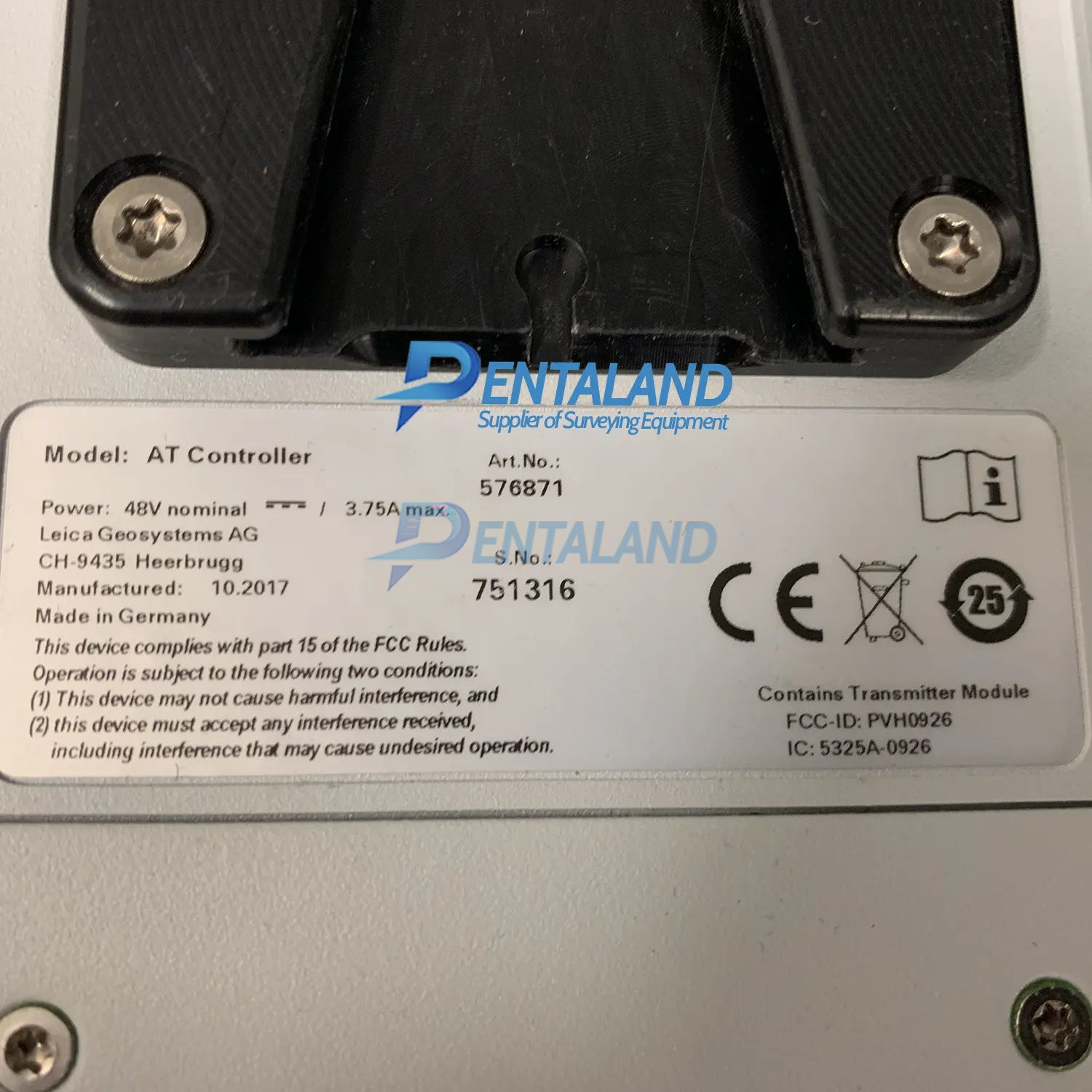

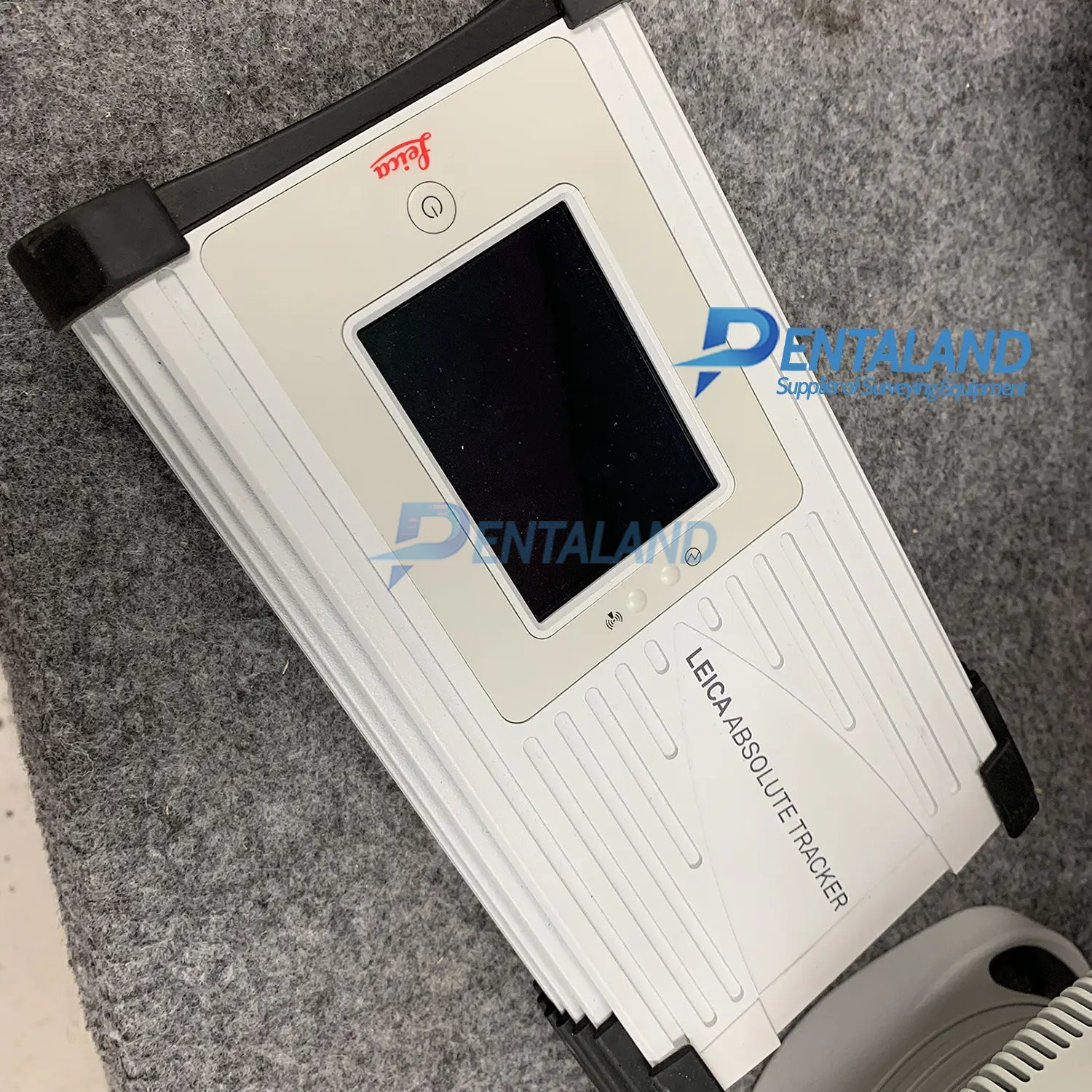

•     controller

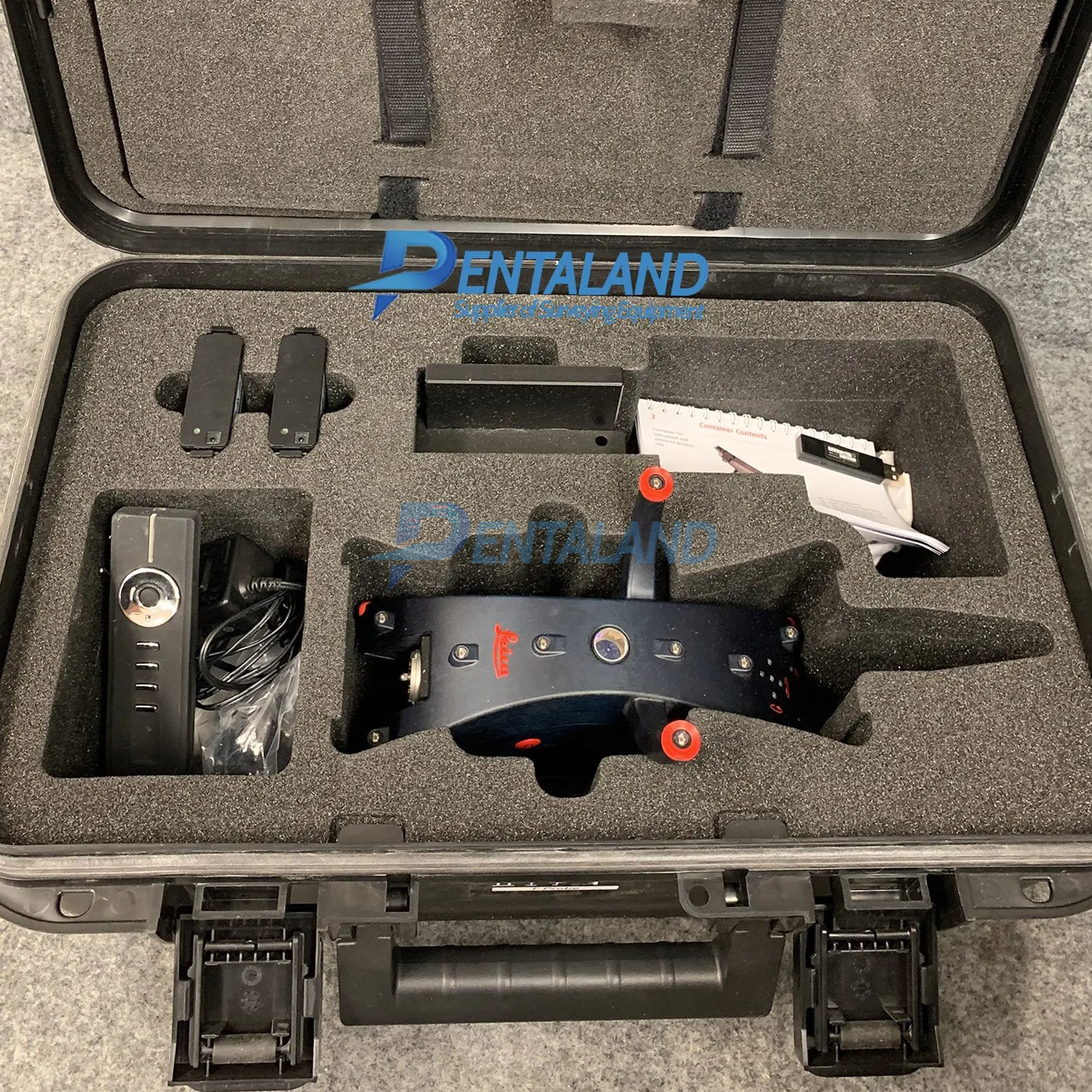

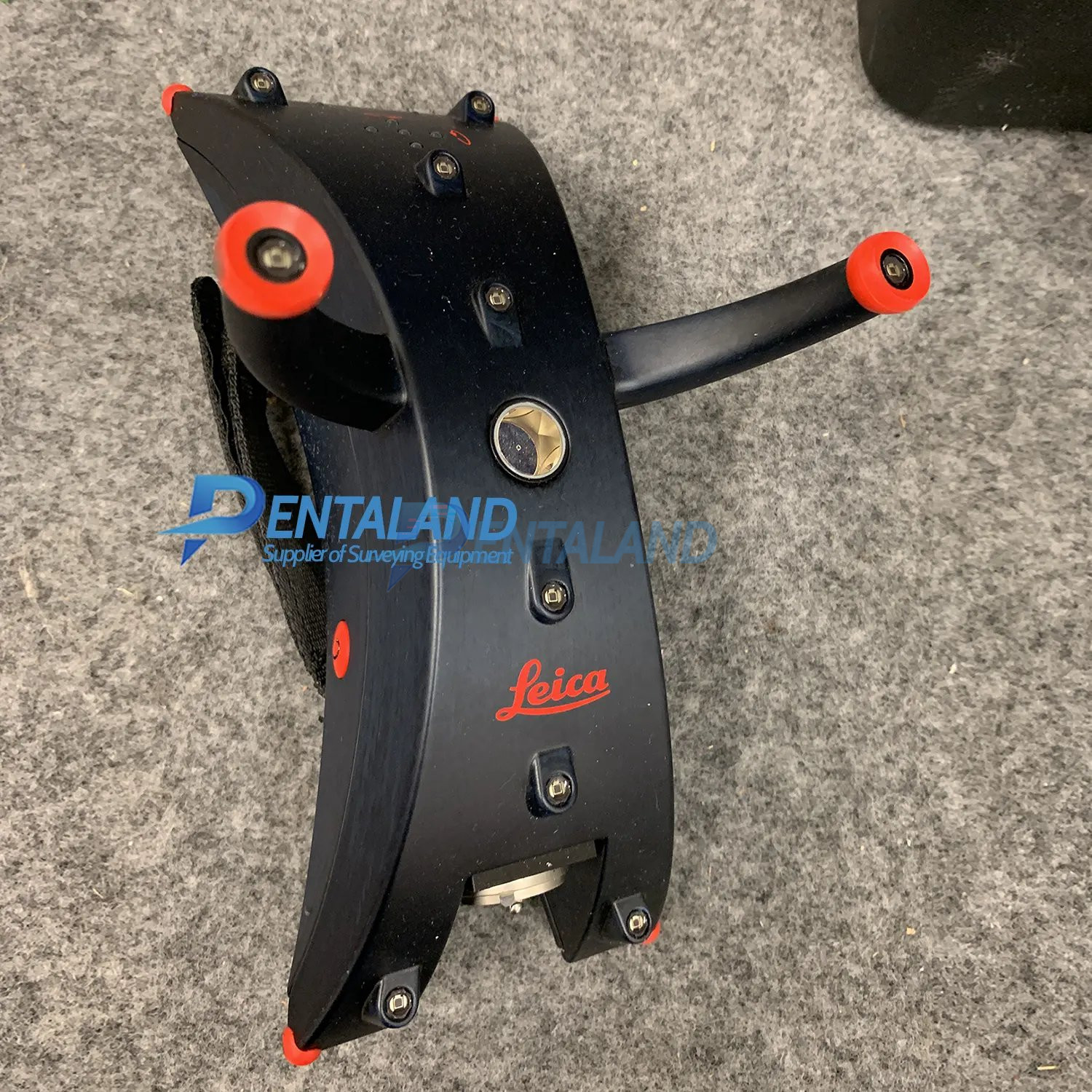

•     T-probe III
•     sensor cable

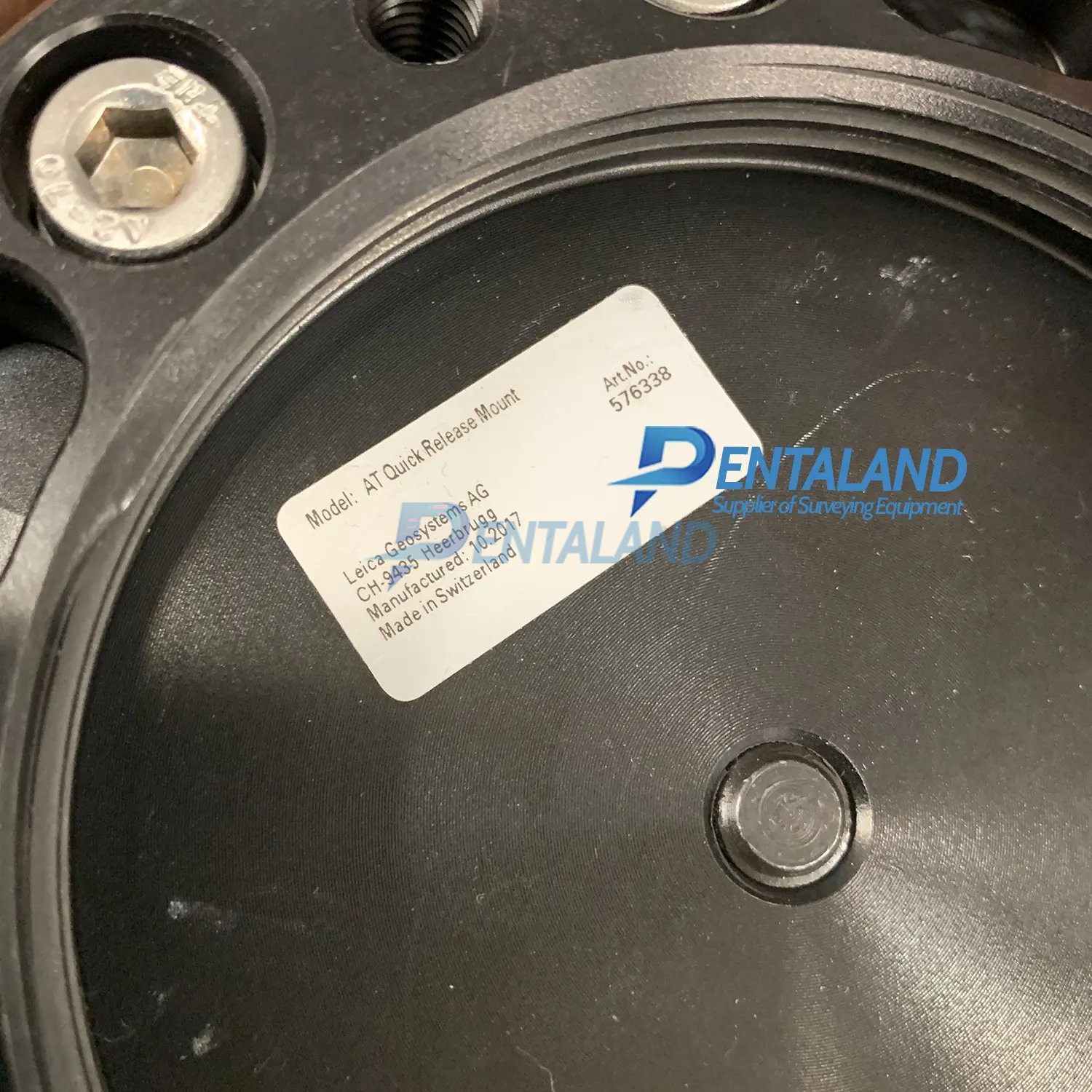

•     AT quick release mount
•     external temperature sensor

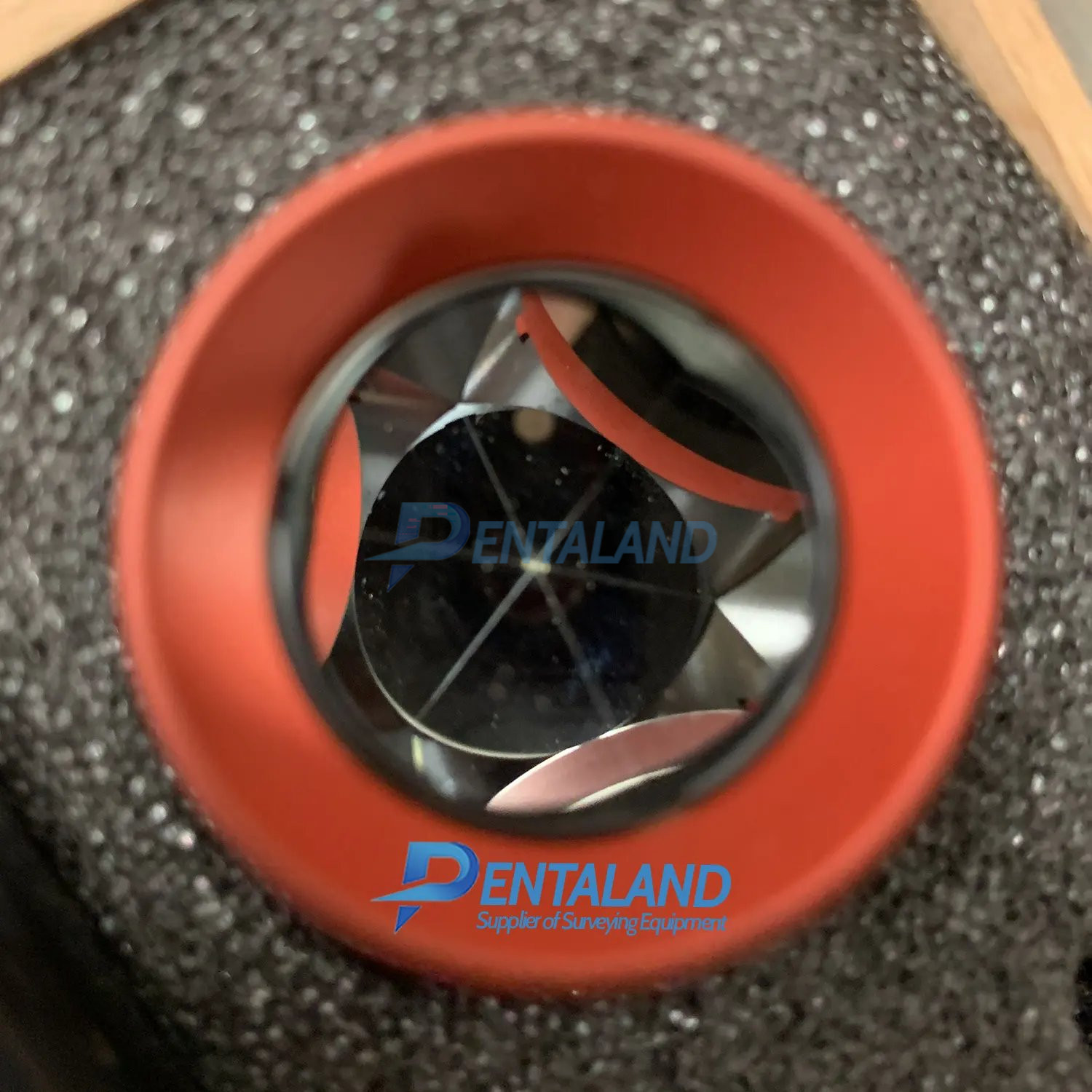

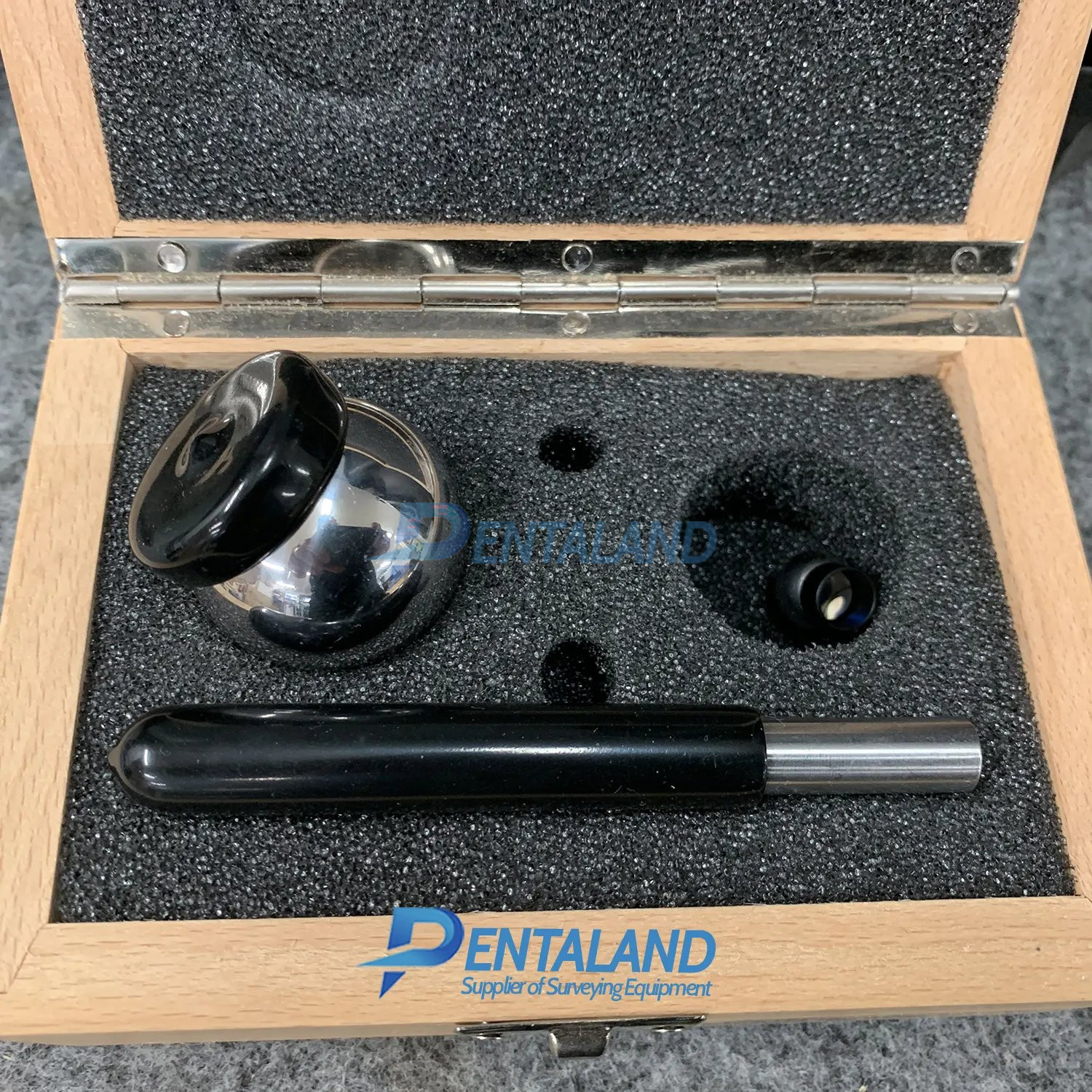

•     red ring reflector
•     reference sphere
•     cleaning kit
•     protective sensor cover
•     User Manual

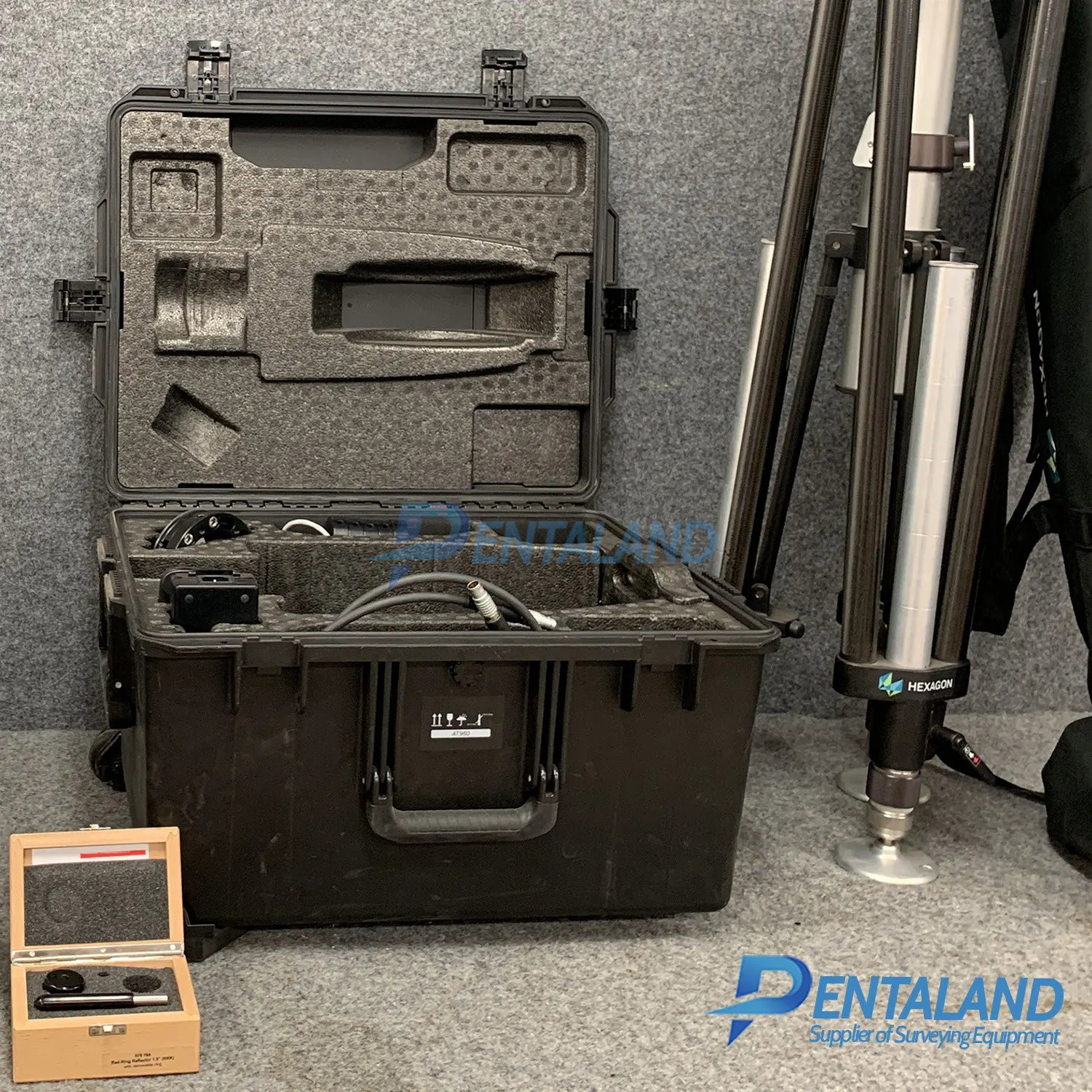

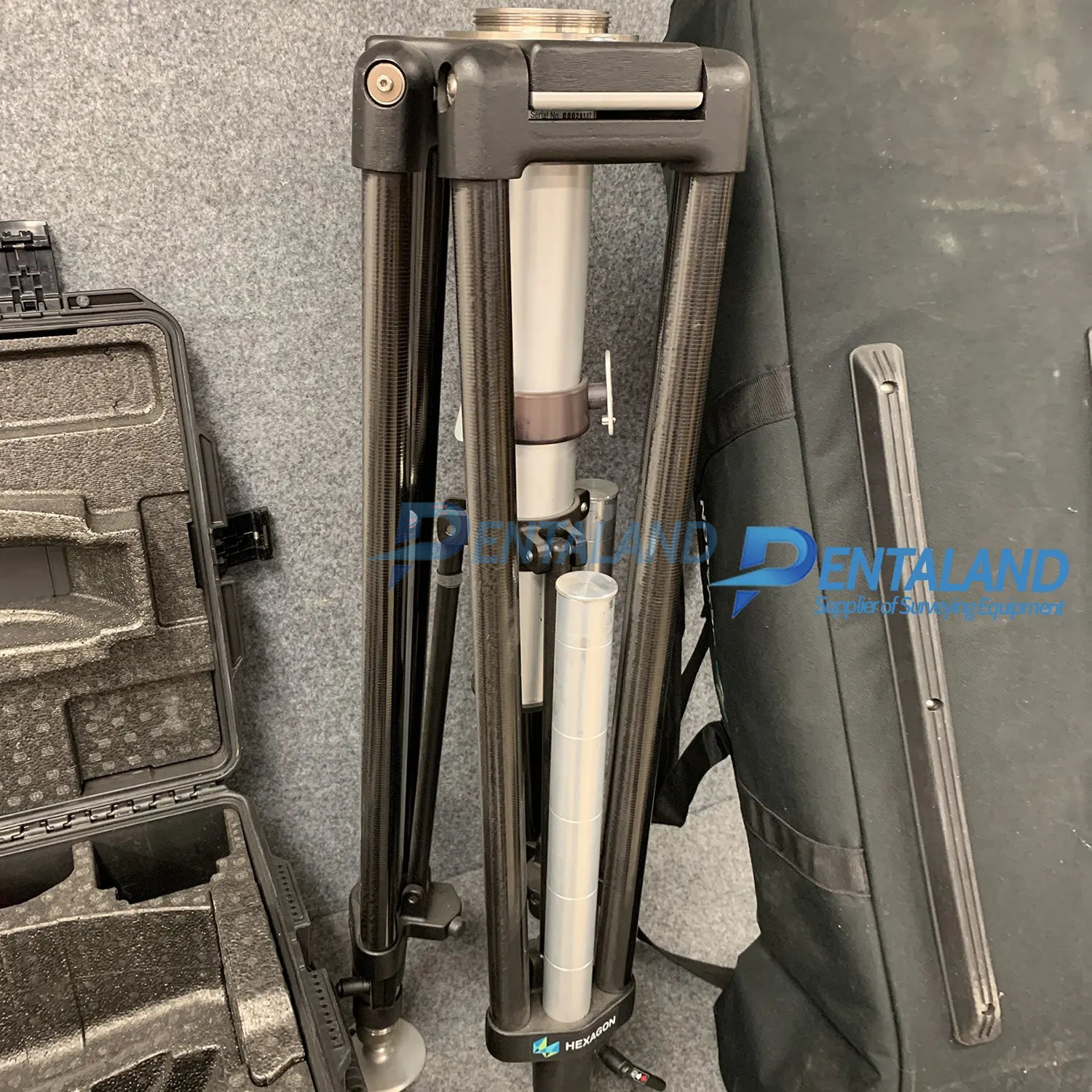

•     Carbon Tripod by Hexagon w/ cover bag

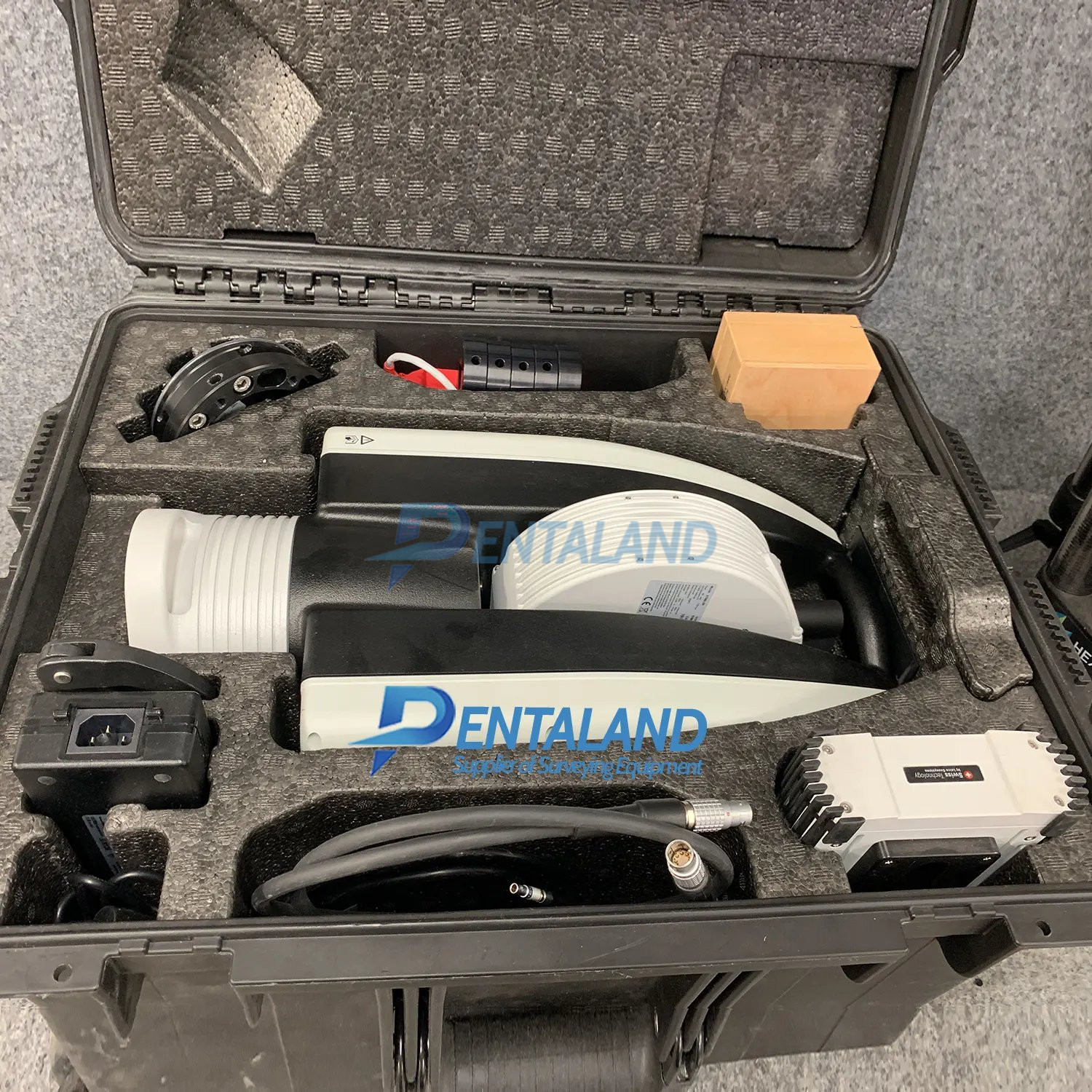

•     2 Hard Case
•     1-year warranty

The Leica Absolute Tracker AT960 is a robust, all-in-one laser tracker that fits in a single flight case. Offering high-speed dynamic measurement as standard, it is a complete solution for six degrees of freedom (6DoF) probing, scanning and automated inspection as well as reflector measurement.

A new generation of portable CMM system based on proven technology, the AT960 brings together the 6DoF functionality introduced with the Leica Absolute Tracker AT901 and the portability and usability delivered by the compact Leica Absolute Tracker AT403. The result is a highly-sophisticated yet easy-to-use large-volume measurement solution weighing less than 14 kilograms.

The AT960 laser tracker can be transported easily, unpacked quickly and powered up in minutes to deliver high-performance measurement almost anywhere. Dynamic features and flexible functionality give users absolute speed, accuracy and portability.

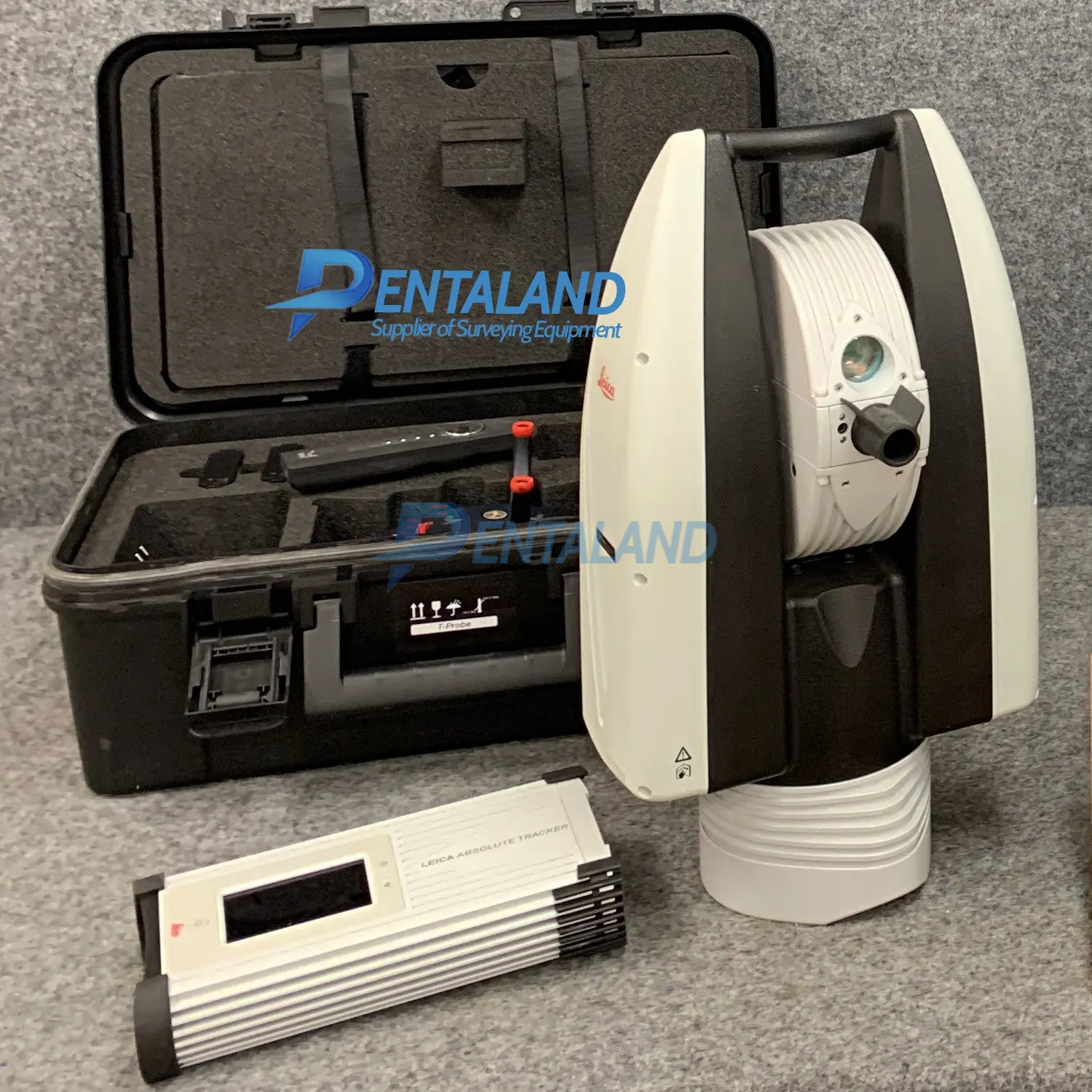

All-in-one design
With all the equipment for measurement to a reflector, Leica T-Probe, Leica T-Scan or Leica T-Mac built in, the compact all-in-one unit is ultra-portable for easy transportation to measure anywhere.

PowerLock
Interrupted line of sight is automatically re-established in a +/-5 degree field of view with no user interaction required for ease of use and exceptional performance in even the most crowded measurement volume

Battery power
Independent hot-swap battery power supply allows a quick and easy cable-free setup in almost any location for better portability, offering a flexible solution that lasts up to a day’s shift – wherever the tracker is needed.

Wi-Fi
Built-in Wi-Fi enables simple setup and communication with the PC for truly wireless operations, also providing remote control options via laptops, tablets or smartphones so the tracker can be operated by a single user.

IP54
The IEC-certified sealed unit guarantees ingress protection against dust and other contaminants, enabling the tracker to measure effectively in even the harshest environments.

MeteoStation
Integrated environmental unit monitors conditions including temperature, pressure and humidity to compensate for changes and ensure accurate measurements regardless of external factors.

Overview camera (OVC)
High-resolution colour OVC enables operators to remotely view the tracker’s field of vision, locating targets to measure to fixed reflectors – including multi-spot handling in a single image – ideal for static hidden point devices or to supplement documentation.

Orient to gravity (OTG)
The OTG function enables users to measure with the Z-axis aligned to gravity, ideal for levelling and alignment tasks such as build and inspect of tool and jig fixturing.

Absolute Interferometer
The Absolute Interferometer (AIFM) single distancing unit combines the accuracy of an absolute distance meter and the speed of an interferometer to give readings quickly and accurately with no need for a home point.

1 kHz data output
Real-time architecture with dynamic performance gives a measurement rate of up to 1 000 points per second, enabling more detailed data capture, more quickly.

Real-Time Feature Pack
Enhance the AT960 with 7DoF data collection to enable the possibilities of real-time machine guidance.

 Integrated mini variozoom
With a constant field of view in any light conditions, mini variozoom provides 6DoF measurement capabilities for accurate probing, scanning and machine control applications.

 Real-Time Asset Management
The AT960/AT930/ATS600 is fully compatible with HxGN SFx | Asset Management, the leading solution for asset performance management in the world of Industry 4.0. Based on data collected in real-time and reported through a centralised user-friendly dashboard, SFx Asset Management has been optimised for the management of laser tracker-based systems and is an essential part of every smart manufacturing strategy.
