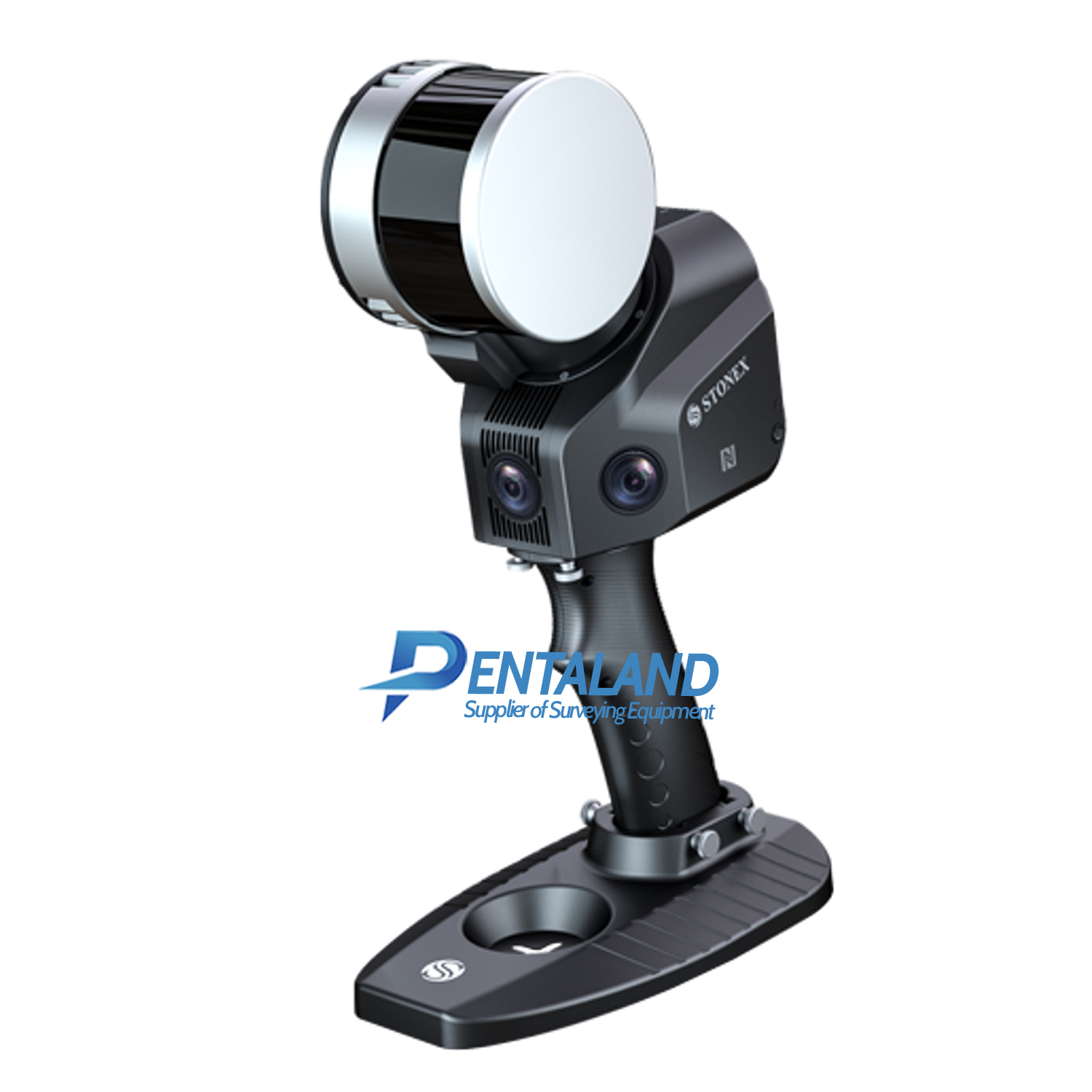

Stonex X120GO SLAM 3D scanner

$15,500

For sale Stonex X120GO SLAM 3D scanner, newest STONEX SLAM technology with Cube3D, Accurate & Versatile, easy and fast capture of 3D models indoor & outdoor spaces

Share on:

Sale Stonex X120GO SLAM 3D scanner, newest STONEX SLAM technology with Cube3D. Powerful scanner allows easy and fast capture of 3D models indoor & outdoor spaces, eliminating the need for complex multi-cloud registrations. Newest STONEX SLAM technology with Cube3D, Accurate & Versatile With 360° rotating head, can generate a 360°x270° point cloud coverage, High-precision three-dimensional point cloud data of the surrounding environment without light and GPS

  • Range: 120 M
  • Relative Accuracy: Up to 6mm
  • Scan Rate: 320.000 pts/sec
  • Point Cloud Coverage:     360°x270°

   Package includes:

  • Stonex X120GO 3D slam Scanner with PointCab Origins
  • Carrying case
  • 4 chargable batteries
  • Charger for batteries
  • EU and US charger
  • CBase for GCP measure
  • 32 GB card
  • USB stick (SD reader)

Cube3D

  • GOapp
  • GOpost
  • USB dongle for GOpost
  • Calibration test
  • USB stick with manual
  • 12-month hardware warranty

Stonex X120GO SLAM Laser Scanner

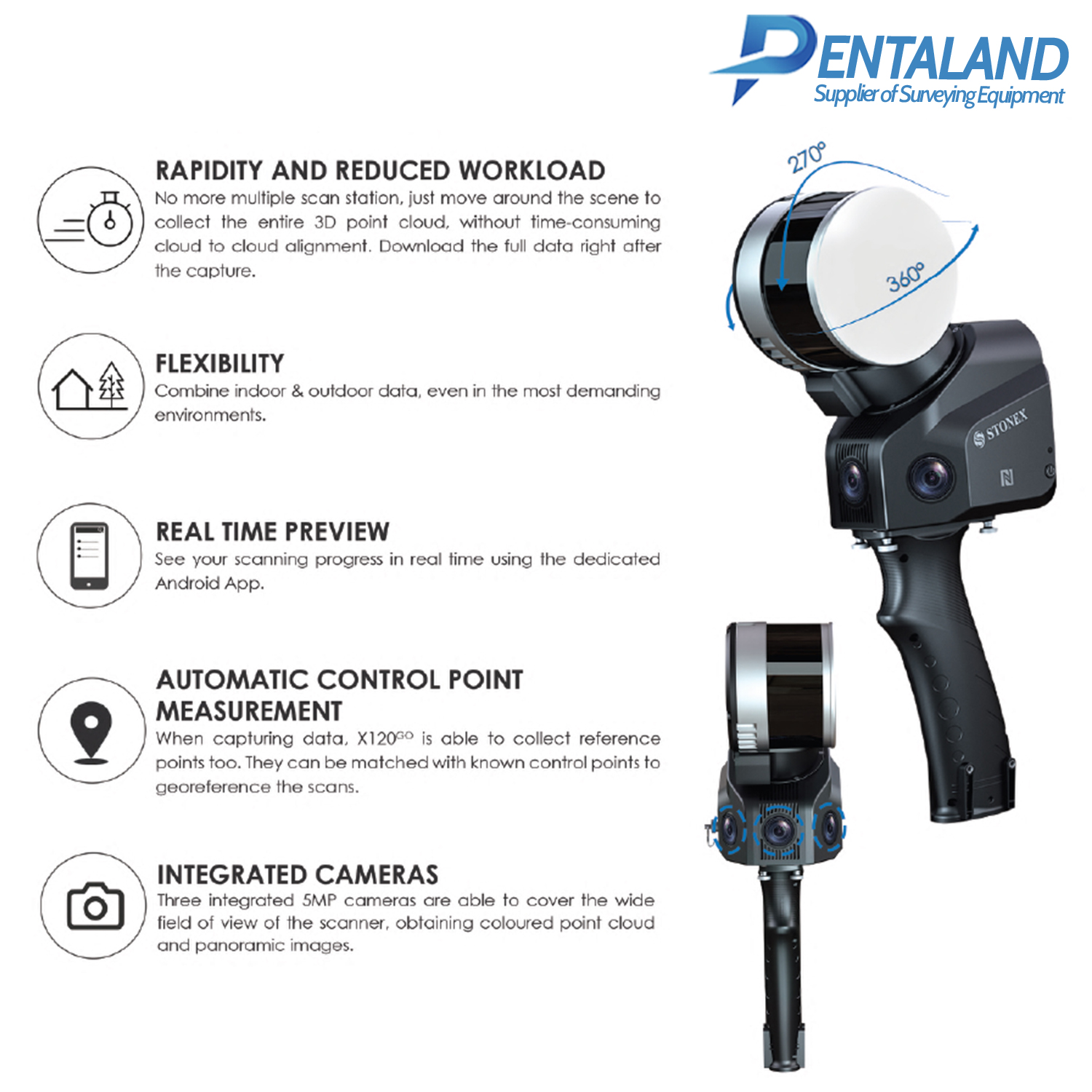

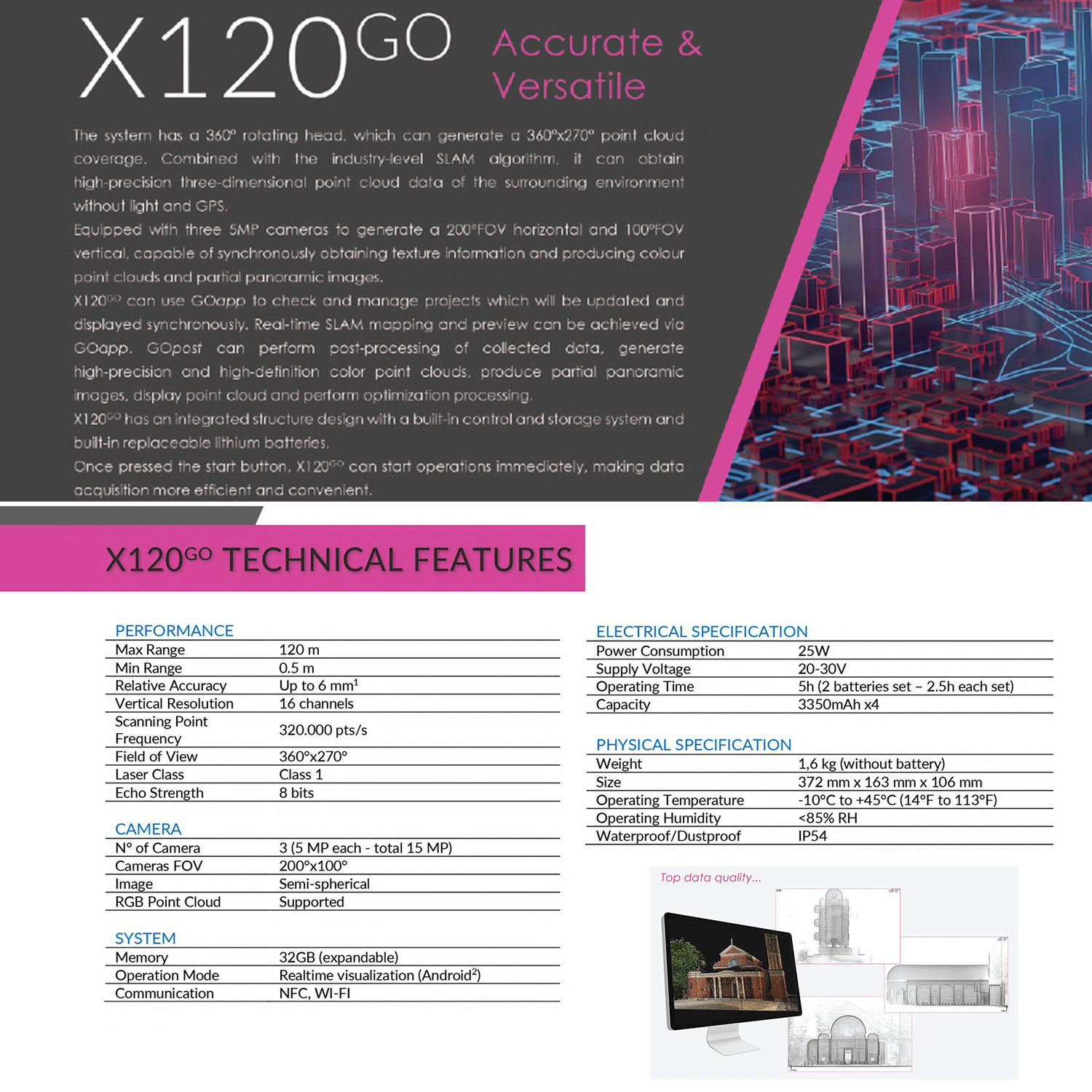

The system has a 360° rotating head, which can generate a 360°x270° point cloud coverage. Combined with the industry-level SLAM algorithm, it can obtain high-precision three-dimensional point cloud data of the surrounding environment without light and GPS. Equipped with three 5MP cameras to generate a 200°FOV horizontal and 100°FOV vertical, capable of synchronously obtaining texture information and producing colour point clouds and partial panoramic images.

X120GO can use GOapp to check and manage projects which will be updated and displayed synchronously. Real-time SLAM mapping and preview can be achieved via GOapp.

GOpost can perform post-processing of collected data, generate high-precision and high-definition color point clouds, produce partial panoramic images, display point cloud and perform optimization processing.

X120GO has an integrated structure design with a built-in control and storage system and built-in replaceable lithium batteries. Once pressed the start button, X120GO can start operations immediately, making data acquisition more efficient and convenient.

You can manage your point clouds in the office with our Cube-3d and Stonex Reconstructor Software or, if you need something different, you can use PointCab. Thanks to the collaboration between Stonex and PointCab, you can process X120GO data with it.

STONEX_X120_GO_CUBE_3D_Slam_Scanner_Brochure

STONEX_X120_GO_CUBE_3D_Slam_Scanner_Accessories
