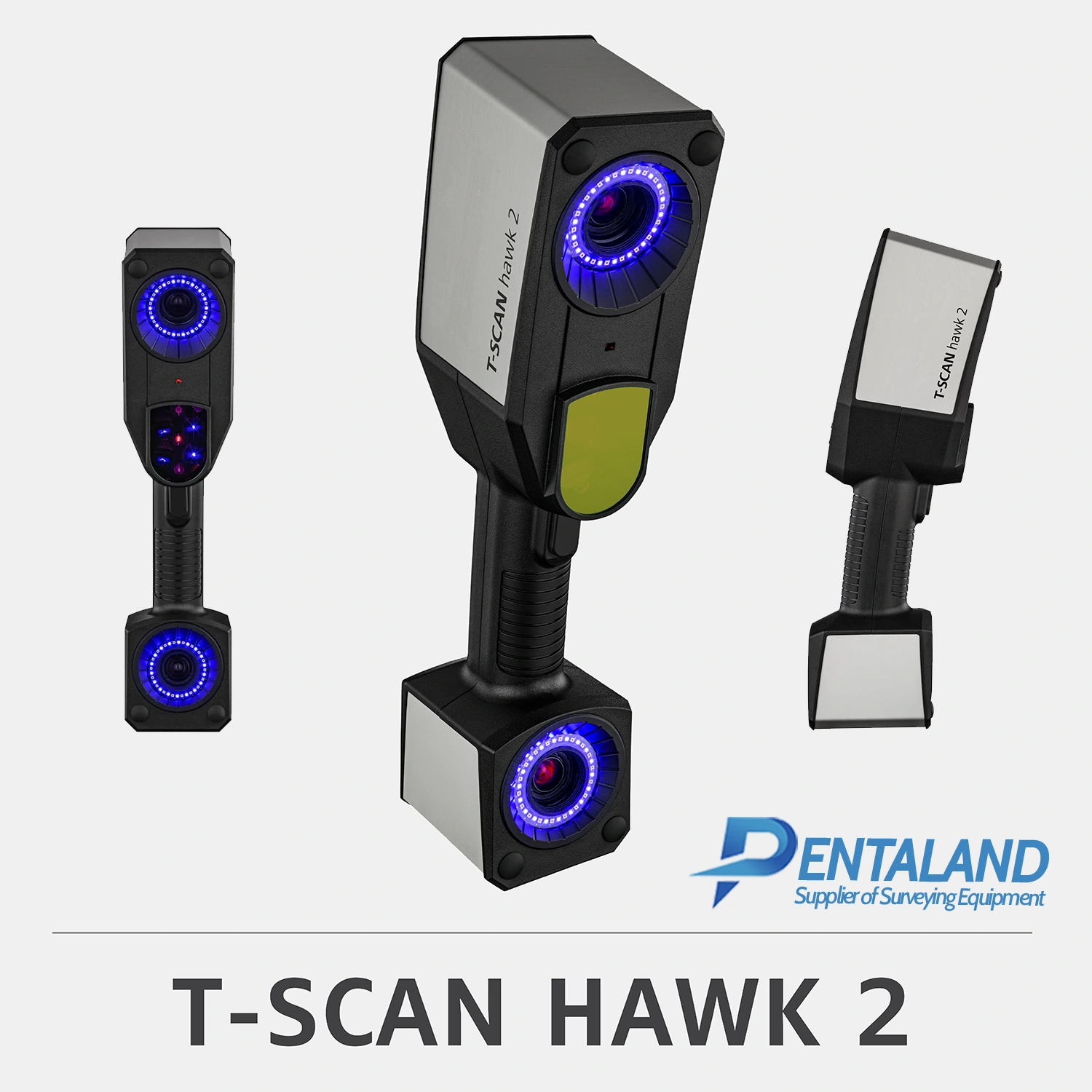

ZEISS T-SCAN hawk 2 3D Scanner

$27,000

ZEISS T-SCAN hawk 2 Portable 3D scanning and inspection for sale, Featuring satellite mode, adaptive workflow, and ZEISS INSPECT software, it tackles diverse applications across industries.

Share on:

ZEISS T-SCAN hawk 2 Portable 3D scanning and inspection for sale, Featuring satellite mode, adaptive workflow, and ZEISS INSPECT software, it tackles diverse applications across industries.

The second generation of the portable solution for 3D scanning and inspection.
The new ZEISS T-SCAN hawk 2 is portable, precise, and designed for users who want to make a difference. The powerful scanning solution with pre-installed GOM Inspect software supports every single work step. From capturing high-quality 3D data to delivering precise results: T-SCAN hawk 2 simplifies processes.

  • Accuracy: 0.02 mm
  • Scan Modes: 2 Modes
  • Resolution: 0.05 mm

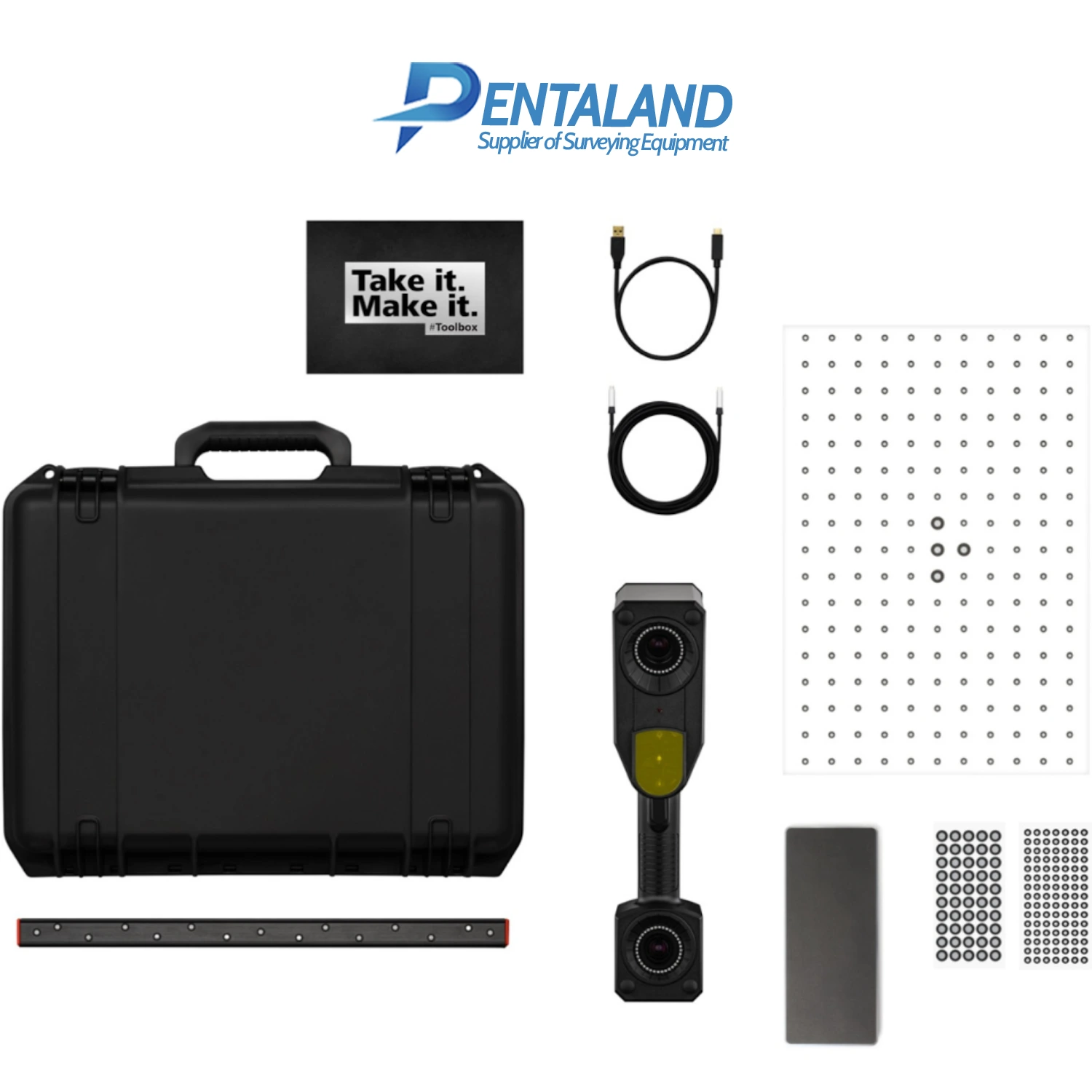

Product Includes:

• T-SCAN hawk 2 Scanner
• Calibration panel
• Hyperscale
• GOM Turn 400
• Toolbox
• Reference points
• 7760 Mobile Computer
• Power delivery hub
• User Manual
• Hard Case
• 2 years Warranty

*System will be provided with most current Sensor Driver

Features:

User-friendly and always ready
As a standalone device, the T-Scan Hawk is ready to go in no time and enables simple and intuitive scanning.

Adapts to your needs
Thanks to two different laser sources, even dark, reflective objects can be captured with all their fine details.

Focus on mobility
Thanks to its compact and lightweight design, the scanner is easy to transport and can be used even in tight and difficult-to-access spaces.

Meets every challenge
Even large and heavy objects can be captured with high precision thanks to integrated photogrammetry

Achieve great things with the new Satellite Mode
The T-SCAN hawk 2 is the first portable laser scanner with the new Satellite Mode for scanning objects up to several meters in length. Traditional built-in photogrammetry with coded markers is no longer required, without compromising accuracy.

Two scanning modes at the touch of a button
The T-SCAN hawk 2 features two different scanning modes for different requirements.
Switching between the modes is possible at the touch of a button, even within a scan job:

  • Laser grid for large areas - For efficient scanning of large areas or for fast 3D reconstruction.
  • Laser line for fine details - Suitable for small components and details or for dark, reflective surfaces.

Push-button operation
The T-SCAN hawk 2 features four buttons that allow you to directly launch and navigate your workflow. There's no need to run the software separately on your laptop. The scanner offers seamless resolution and field of view adjustment. Whether it's small parts, fine details, larger objects, deep pockets, tight spaces, or hard-to-reach areas, this 3D laser scanner gets the job done.

Intelligent Distance Measurement
With the ZEISS T-SCAN hawk 2, measuring the distance to a component is easier than ever before. A built-in laser projects a red crosshair onto the scanning surface, visually indicating the correct distance for the scan. The shape of the crosshair changes depending on the distance to the component.

Strong performance on dark and glossy surfaces
T-SCAN hawk 2 supports scanning on a wide range of materials and surfaces and delivers 3D measurement data with the highest precision.



ZEISS T-SCAN hawk 2 Technical Specifications

High-speed scanning Included (multiple blue laser crosses)
Deep pockets Included (single blue laser line)
Flexible depth of field Included (on-object distance radar)
Detailed scan Included
One-shot sensor recalibration Included (HyperScale)
Large parts

Included (Satellite mode, no coded targets required)

Carbon-fibre lengths standards Certified (DAkks / ILAC)
Volumetric accuracy 0.02mm + 0.015mm/m
Laser class (IEC 60825-1:2014) Class 2 (eye-safe)
Weight < 1kg
Cable 10m (ultra-light)
Software ZEISS INSPECT
Full remote workflow Supported
