Used GSSI PaveScan RDM 2.0 asphalt tool

$13,900

Used GSSI PaveScan RDM 2.0 asphalt assessment tool for sale, bundle with 3X sensor cart system, fully serviced and calibrated by GSSI, everything is in excellent perfect condition

Share on:

Used GSSI PaveScan RDM 2.0 asphalt assessment tool for sale, bundle with 3X sensor cart system. Still like new, fully inspected, serviced and calibrated by GSSI authorized, everything is in excellent perfect condition.

The PaveScan RDM 2.0 is ideal for uncovering inconsistencies that occur during the paving process, including poor uniformity and significant variations in density. By detecting these problems, PaveScan RDM 2.0 helps to avoid premature failures such as road raveling, cracking and deterioration along joints.

Typically used to:
    Non-destructive asphalt compaction testing
    Quality assurance/quality control of new pavements
    Determining pavement non-conformity

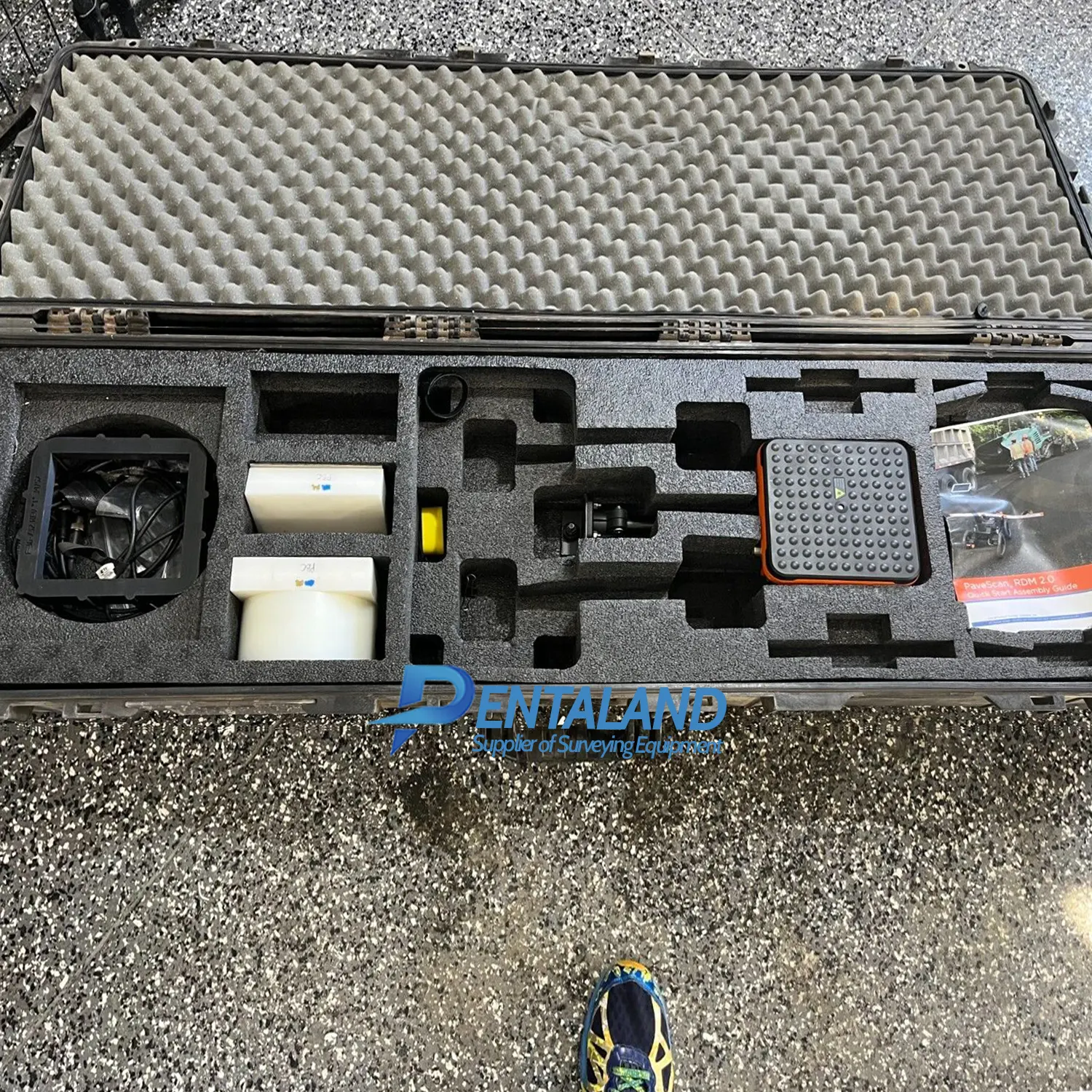

includes:

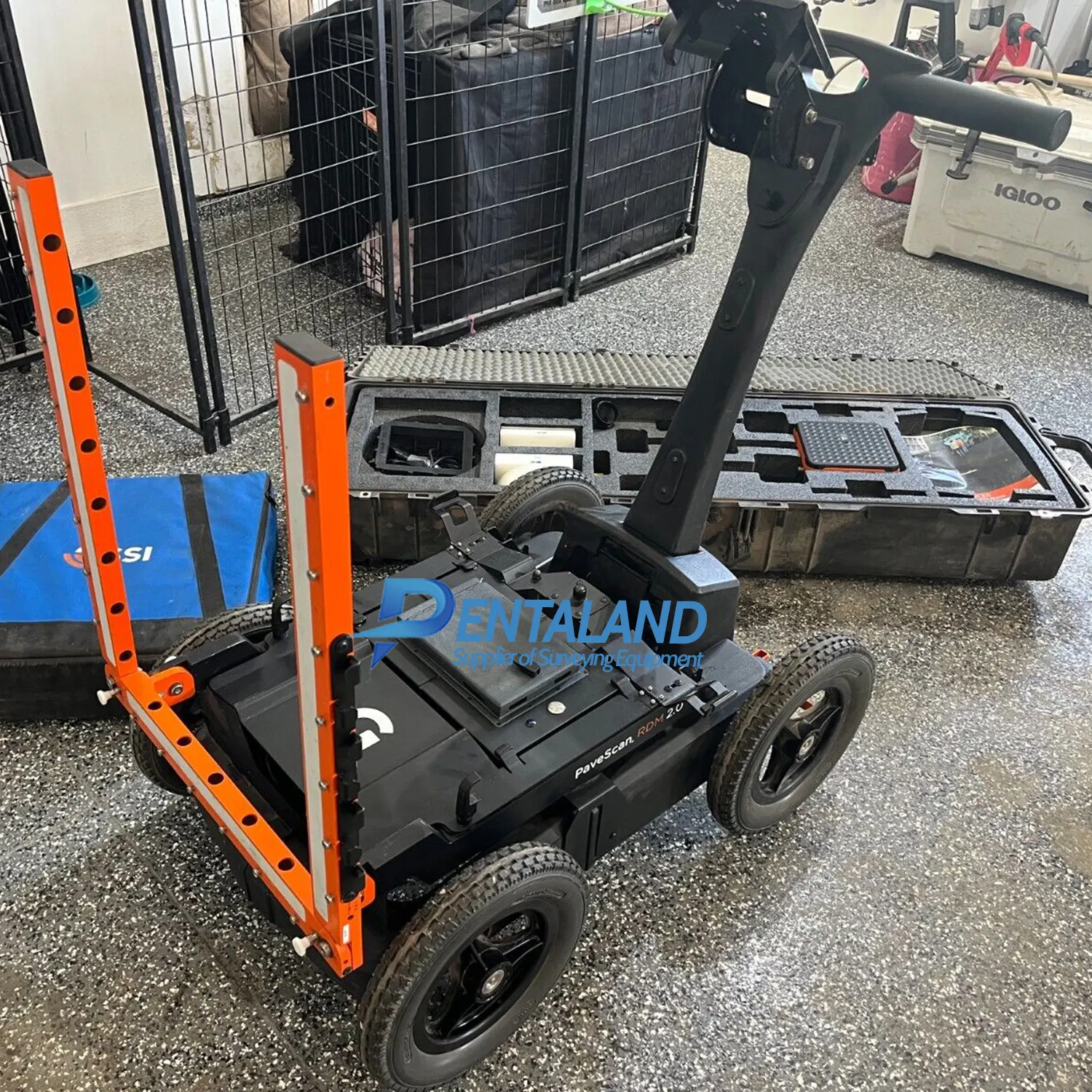

    GSSI PaveScan RDM 2.0 with 3X sensor (2GHz) cart system

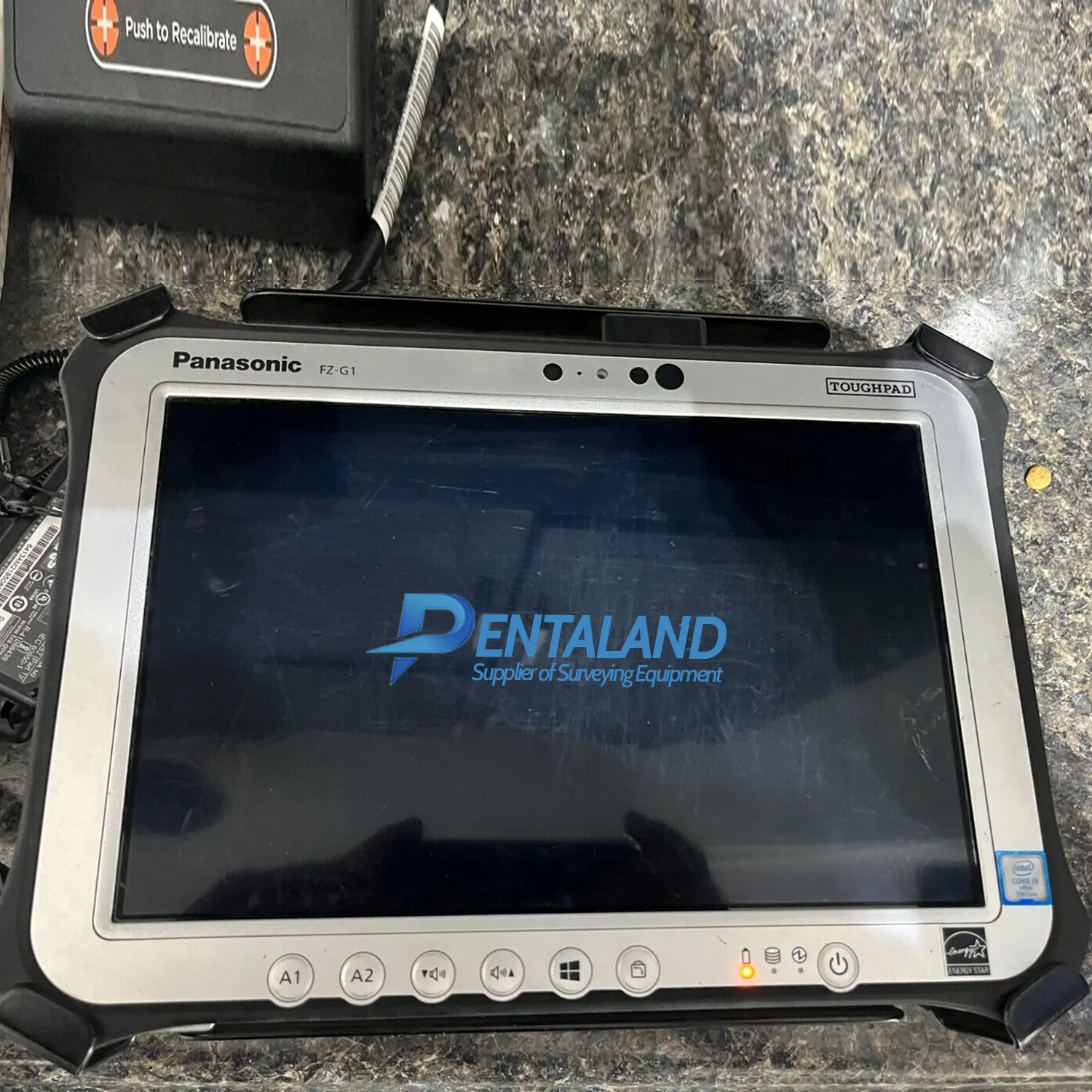

    Panasonic Toughpad G2
    4-wheel cart
    2.1 m digital control cable(s)
    Concentrator box
    Lithium-ion battery (2)
    Dual-bay battery charger
    User Manual
    2-year warranty

Specifications
Tablet Computer
Display 10.1” WUXGA 1920 x 1200 with LED backlighting
Processor Intel® Core i5-10310U vPro
Available Ports Ethernet, USB, HDMI
Battery Li-Ion Battery Pack (10.8 V), 4 hours
Operating Temperature -28°C to 60°C (-18°F to 140°F)
Environmental Rating IP65
Durability MIL-STD-810H

System Specifications
Data Format .csv
Maximum Output Resolution .4 inch (1 cm)
Operating Mode Survey wheel distance based data collection
Power Source 2 x 10.8V 8.2AH batteries
Diagnostic Battery indicator status, hard disk capacity

Measurement Specification
Repeatability (Dielectric) +/- 0.08 (value obtained from HDPE validation blocks)
Accuracy (Dielectric) +/- 0.08 (value obtained from HDPE validation blocks)
Minimum/Maximum Dielectric 2 to 16

Mechanical
Dimensions One sensor cart system – 36.9 kg (81.4 lbs), Three sensor cart system – 42.9 kg (94.6 lbs)
Environmental Rating IP65
Operating Temperature -28°C to 60°C (-18°F to 140°F)
Storage Temperature -55°C to 85°C (-67°F to 185°F)

GSSI PaveScan RDM 2.0 asphalt assessment tool brochure

Modern technology to determine new pavement quality

The PaveScan RDM 2.0 uses the dielectric measurements of new pavement to determine pavement quality and uniformity, a world’s first.
  • Innovative Technology

    PaveScan RDM 2.0 offers an easy and affordable assessment tool to non-destructively determine asphalt dielectric during application. This system is ideal for uncovering inconsistencies that occur during the paving process, including poor uniformity and significant variations in density.

  • Groundbreaking Solutions

    PaveScan RDM 2.0 is the premier asphalt test method to identify areas of non-conformity in new pavement. It can be deployed with two different survey methods; utilizing the dielectric values or percent voids. There are no site hazards or need to close off work areas as is the case with nuclear gauges/radioactive alternatives.

  • Data Visualization

    From technician to engineer, the PaveScan RDM 2.0 is easy to operate. With seamless GPS integration, real-time onscreen data output, and export options, this system is ideal for government transportation agencies and paving contractors alike.
