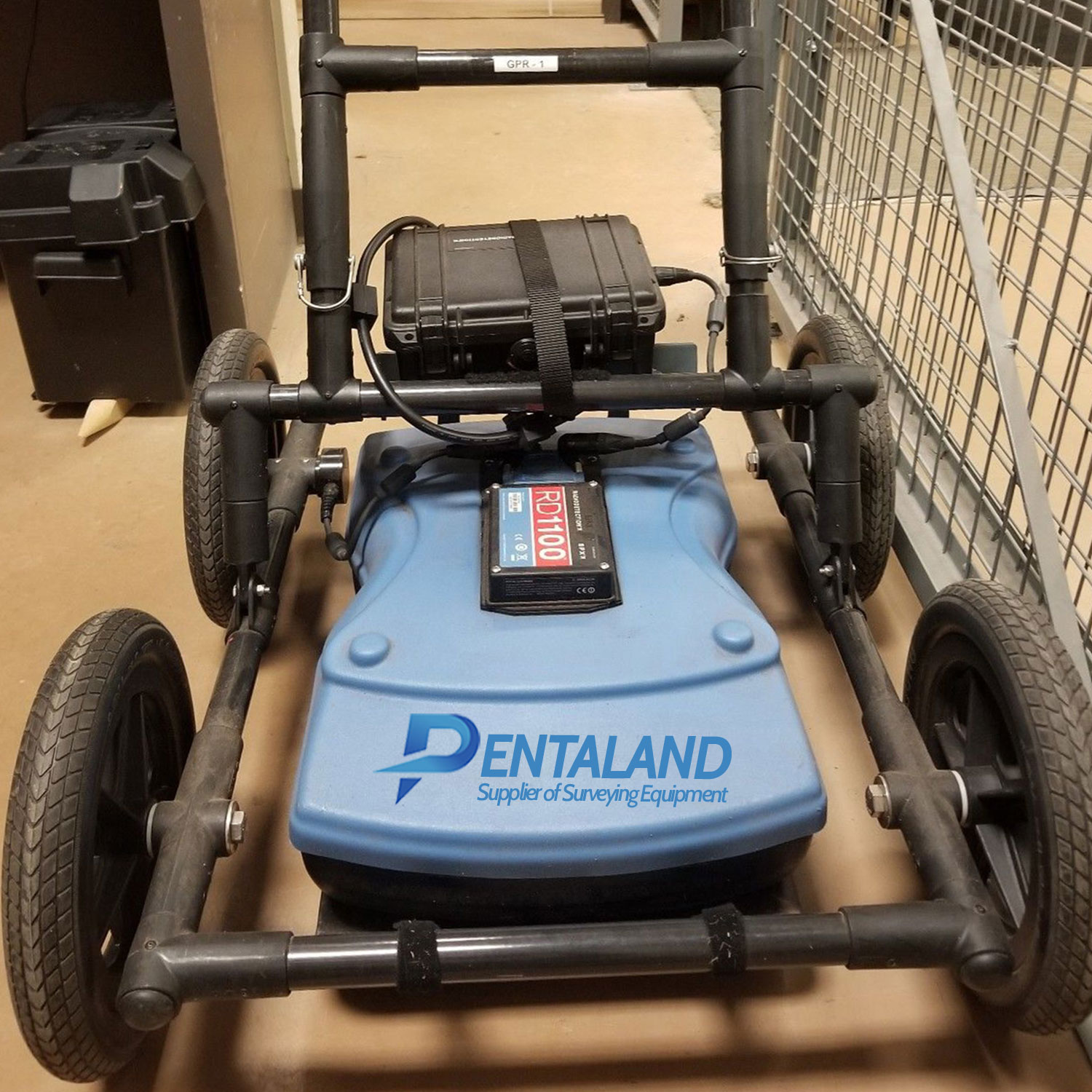

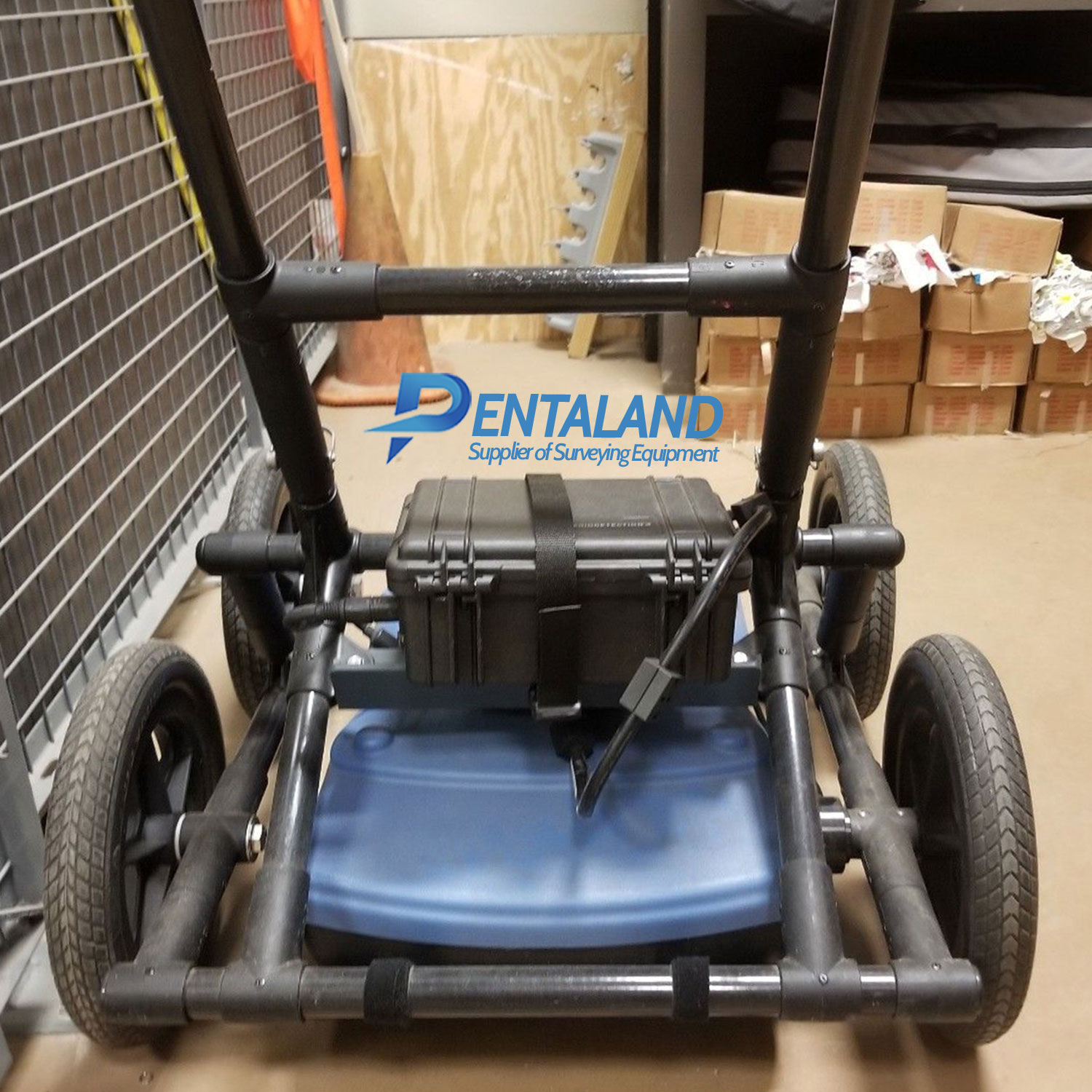

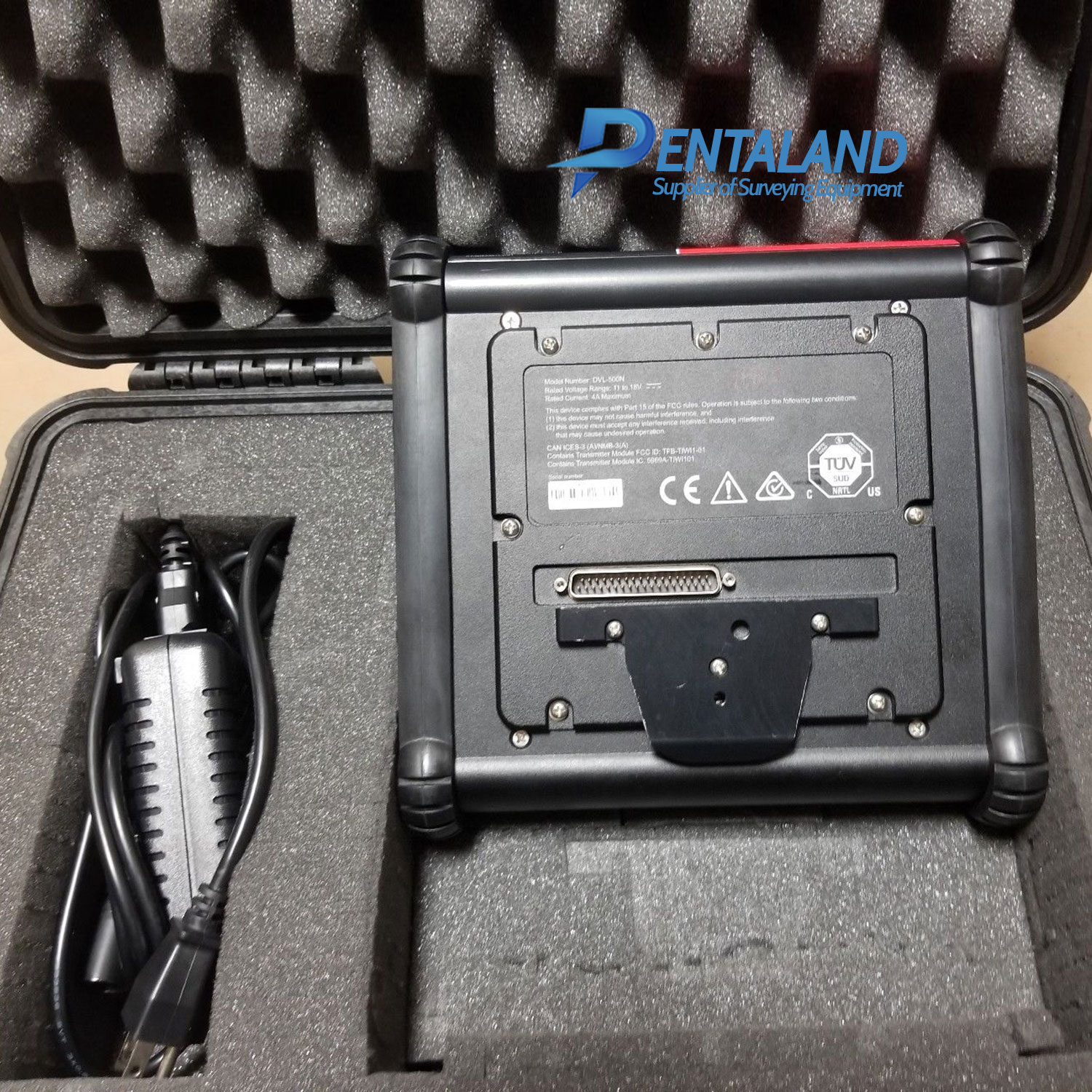

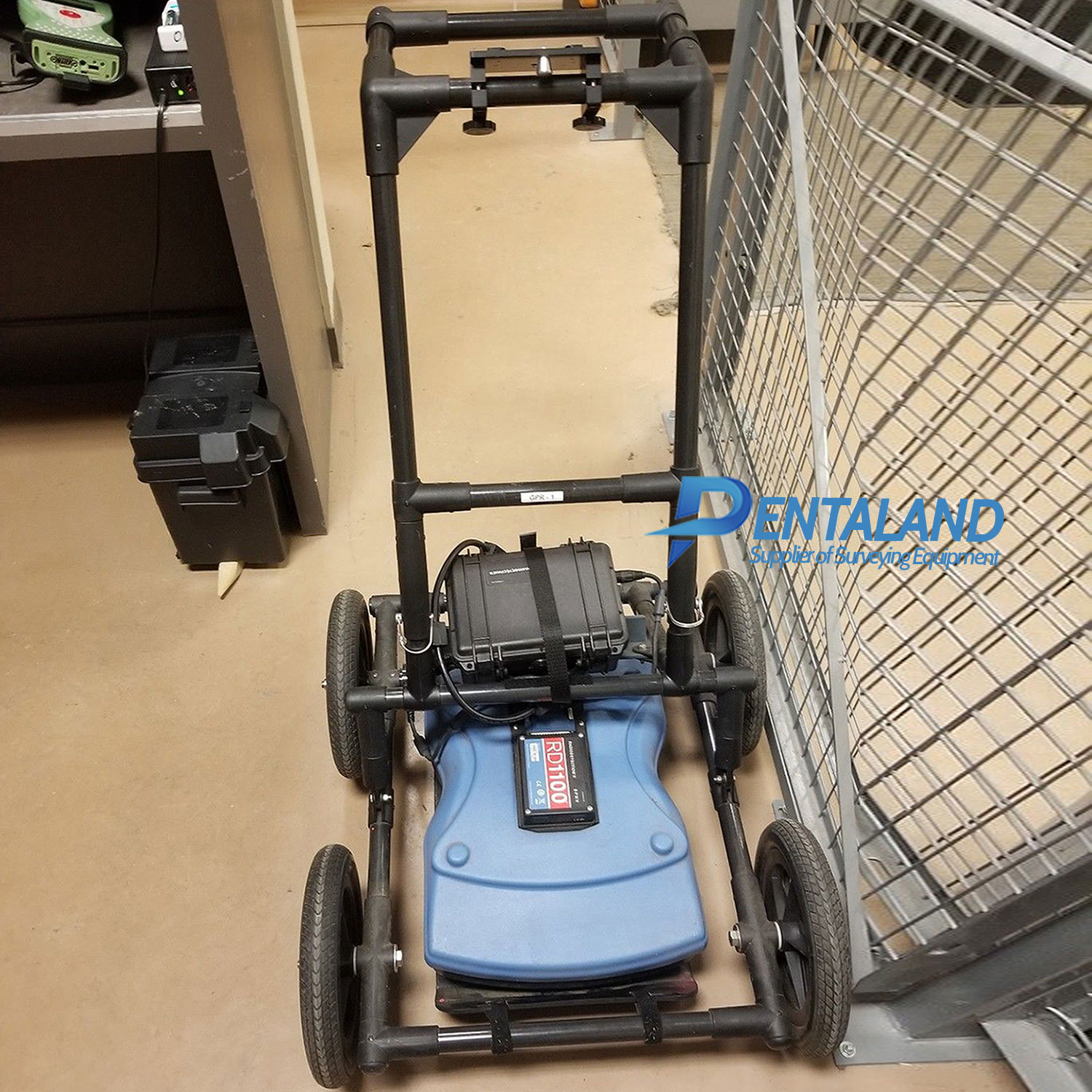

The Radiodetection RD1100 Ground Penetrating Radar detects both conductive and non-conductive underground utilities using wide-band radar technology and features internal GPS, on-board Wi-Fi and a high resolution touch screen.
Typically used to:
Metallic and non-metallic utilities.
Utilities and broken tracer wires.
Undocumented utilities.
Trenches and disturbed soil often associated with utility burial.
Unexpected obstacles or buried structures such as old foundations that can cause problems for excavations or construction
Radiodetection’s RD1100 provides high-performance subsurface imaging for buried utilities in a rugged and competitively priced GPR system. Designed for the utility industry, the RD1100 features a wide-band sensor capable of detecting plastic and ceramic utilities at depths of up to 8m / 27’ deep.

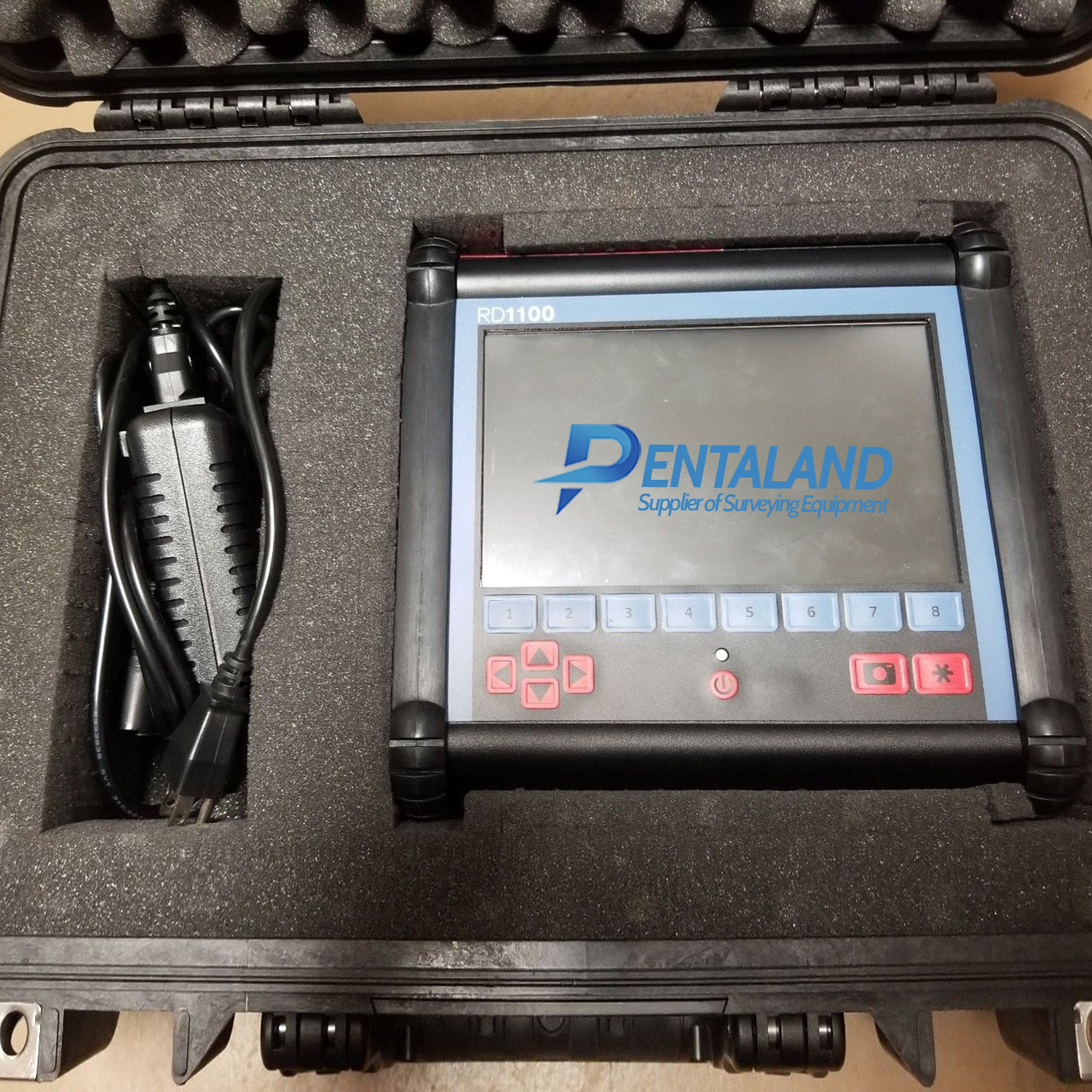

Its high resolution touch screen display adds to its ease of use, including the ability to draw arrows directly on the screen to highlight subsurface features of interest.
Screenshots are taken with a single button press and saved to internal memory as JPGs. These can be exported later to a USB memory stick or emailed by connecting to a Wi-Fi network or by using a cell phone as a hotspot. Instant information, higher productivity!
GPS positioning is captured alongside the Line View data for integrating into geo-referencing packages.
Radiodetection RD1100 Features
Radiodetection RD1100 & RD1500 Ground Penetrating Radar brochure
Radiodetection GPR Family brochure
