Used FARO Quantum S Arm FaroBlu HD LLP

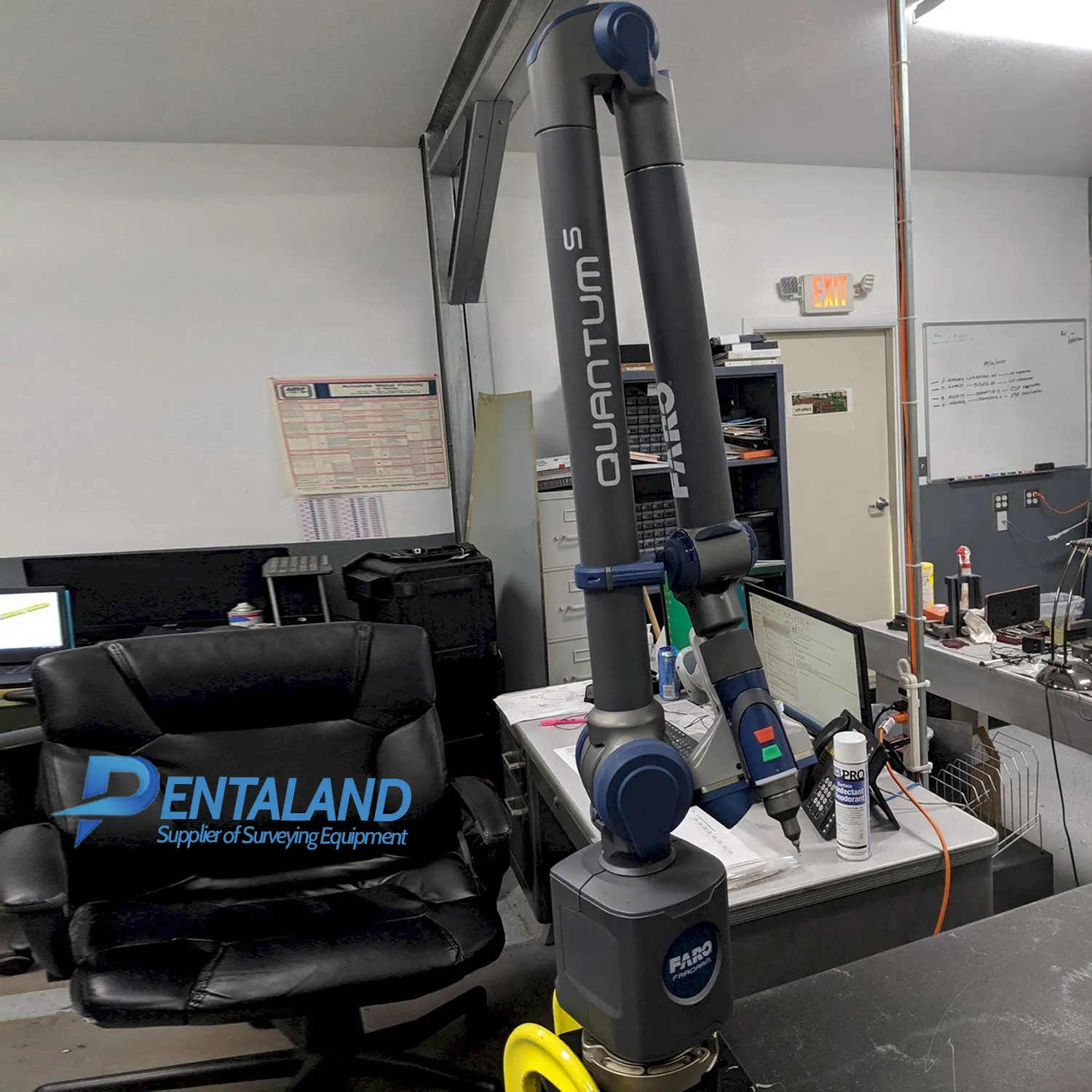

Used FARO Quantum S Arm FaroBlu HD LLP Laser, 3.5m 7 axis. with a CAD Laptop, Poly Works, Dongle. like new, year 2019, fully inspected, serviced and calibrated by FARO authorized, everything is in excellent perfect condition.

Unlock the power of precision measurement with the FARO Quantum S Arm. This state-of-the-art 3D measurement tool is your gateway to unparalleled accuracy and efficiency.

• 7 axis design for maximum flexibility
• FaroBlu HD LLP Laser for high-definition scanning
• 3.5m measurement range to capture even the largest workpieces
• Includes CAD Laptop, PolyWorks software, and FARO dongle

The FAROBlu™ utilizes blue laser technology, a state-of-the-art camera and optics to provide best-in-class scanning capability, enabling fast scanning speed for high productivity. It allows operators to scan challenging surfaces, including dark and reflective materials, and provides users with high resolution and high accuracy.

The extra wide scan stripe and fast frame rate boost productivity by increasing coverage and reducing scanning time. Intricate components can be captured in fine detail — as a result of the 600,000 points per second scan rate and the FAROBlu™ laser featuring noise reduction technology. The cross-hair feature and LED Rangefinder functionality provide real-time scanning feedback thereby allowing users to dramatically reduce required training time.

QuantumS combined with the FAROBlu Features & Benefits
	Blue Laser The FAROBlu™ Laser Line Probe HD leverages an optically-superior blue laser technology. The blue laser has a short wavelength, which delivers improved scanning results with higher resolution thanks to its greater ability to discover small details in an object compared to red laser. The blue laser also provides a 50% reduction in speckle noise compared to red laser.
	Advanced Sensor The FAROBlu™ camera uses the most advanced CMOS technology to deliver fast frame rate (i.e. the number of times per second that the camera gathers new data on the part being scanned) of up to 300 frames per second (fps).
	Custom Optics The FAROBlu™ boasts superior, large-diameter, custom optics that collect more light and more data to deliver better accuracy and sharper and brighter images. Utilizing a larger sweet spot, it supports a wider laser line width that scans a larger area, providing faster, more productive scanning.
	Laser Line Width The FAROBlu™ features laser line width of 150mm. The extensive line width scans a larger area, delivering fast and efficient scanning. Additionally, the Laser Line Probe HD features a solid, blue laser beam generated without the use of moving components which can be sensitive to vibration and risk inducing errors in accuracy and impacting productivity by forcing repeat scans.

This lightly used, fully serviced and calibrated unit is like new, having been meticulously maintained by FARO-authorized technicians. It's the perfect opportunity to bring the power of the Quantum S Arm into your workshop or lab and take your measurement capabilities to new heights.

Includes:

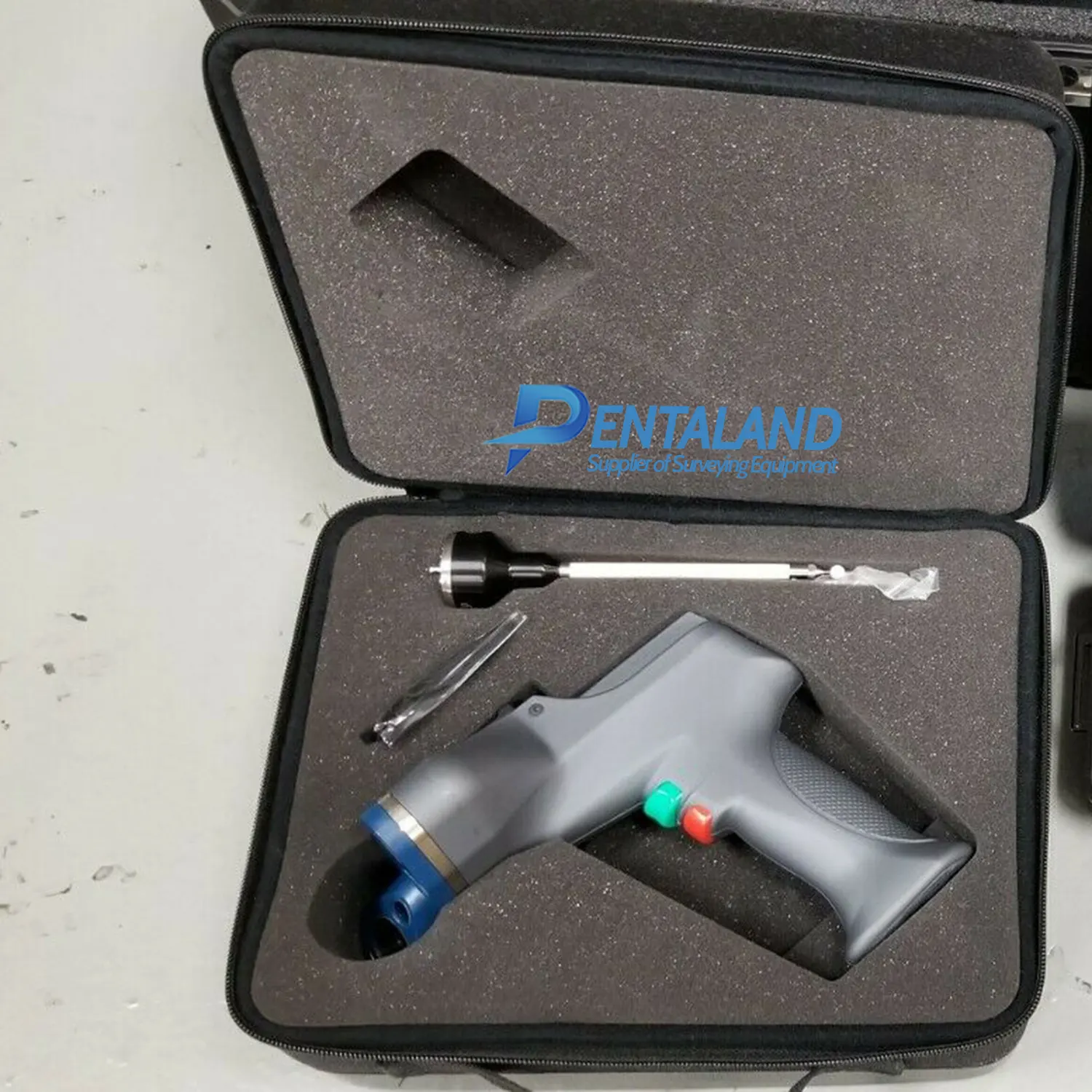

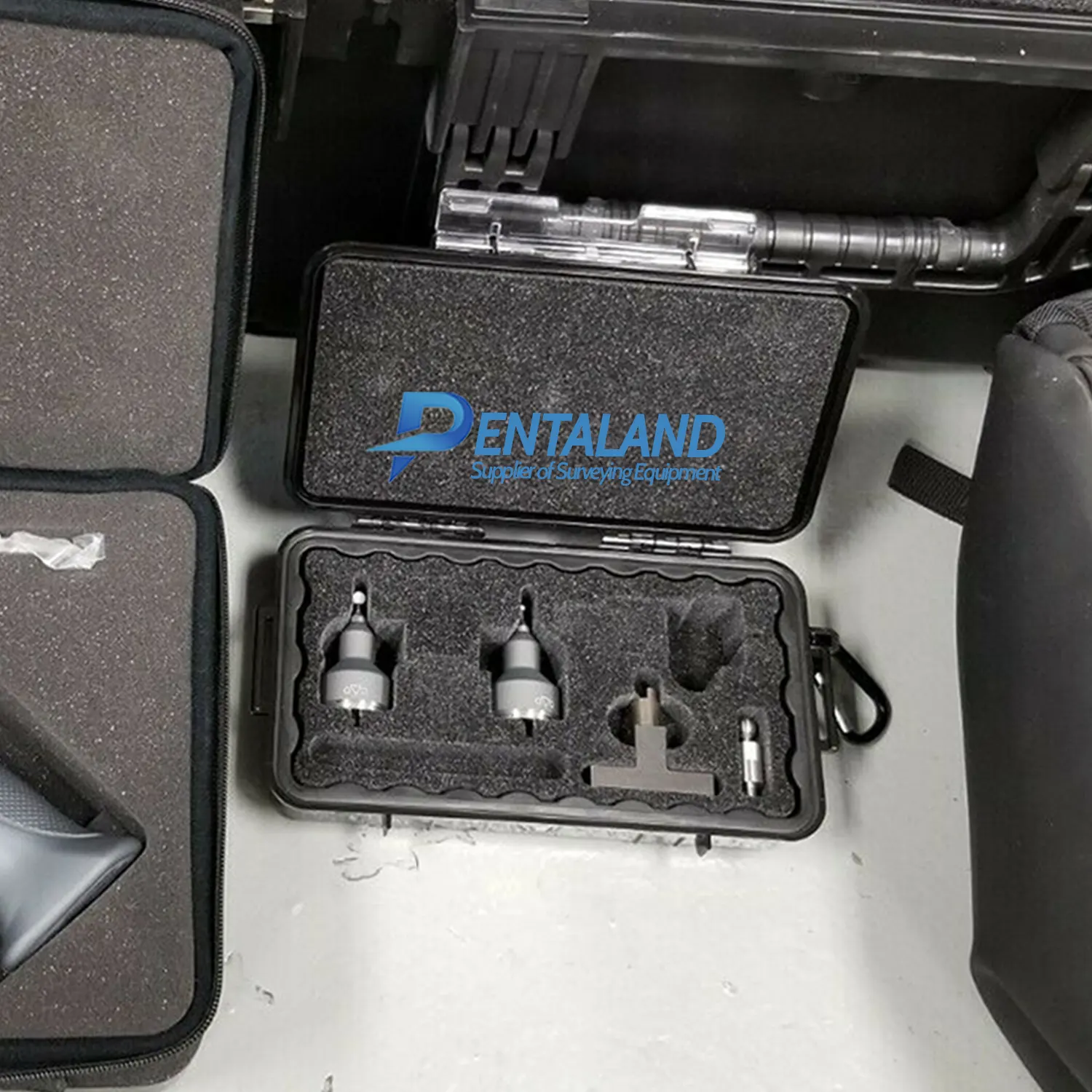

•     Quantum S 3.5 M 7 Axis FaroArm Serial # W35-S5-17-15255. with System: 3.5meter Quantum S Arm, Faro Power Cord, USB Connector Cable, Custom Shipping Case, Portable Storage Case, Probing Handle Attachment, Accessories Case , Probe Case (1x 6mm Probing Tip, 3mm Probing Tip, SPAT Nest, Mounting Plate, LLP calibration Plate, Dust Cover, Faro Heavy Duty Tripod, connecting mount and heavy duty tripod travel case

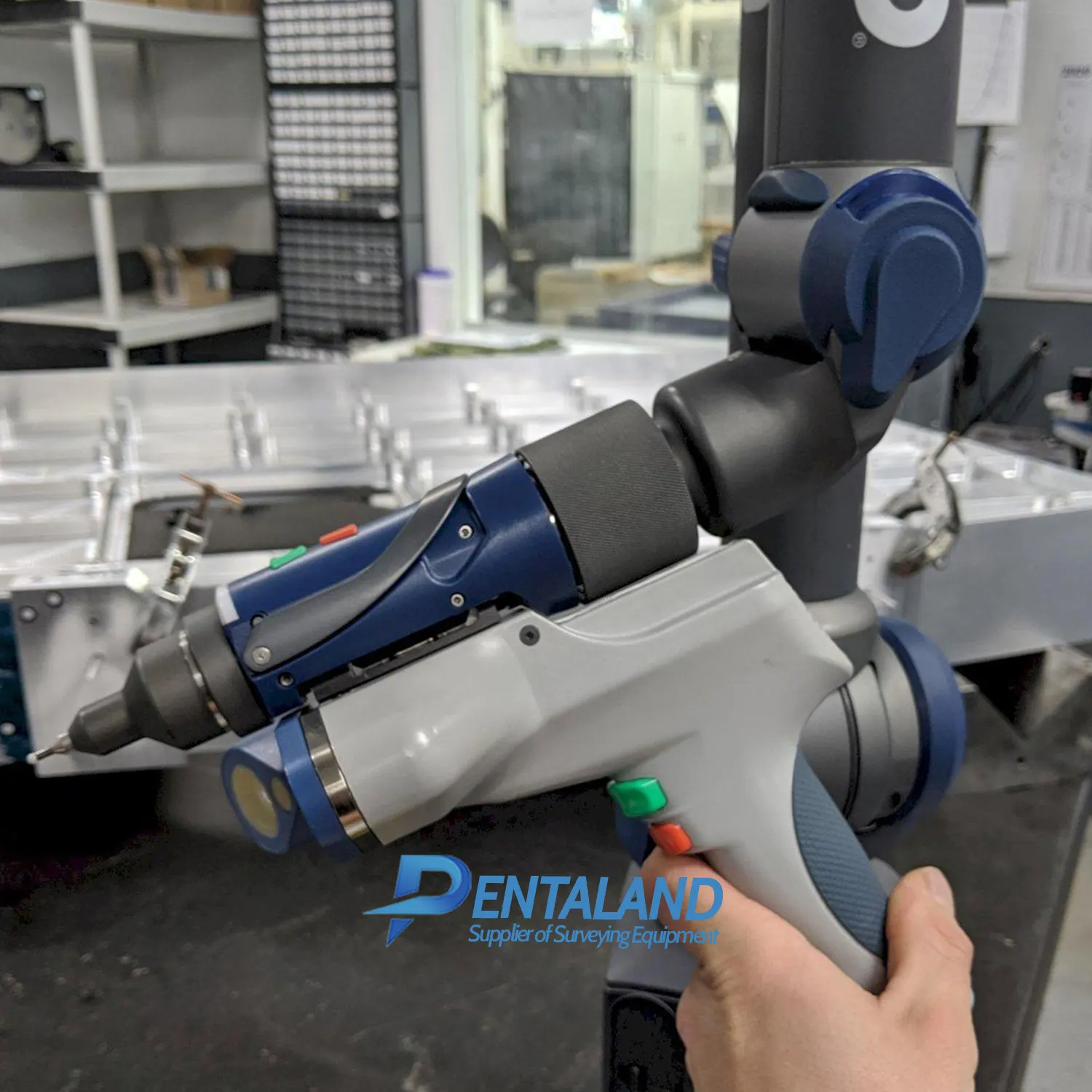

•     FAROBlu HD Laser Line Probe for Quantum
•     HP Z Book Gen 4 Laptop (per FARO Specification)
•     PolyWorks INSP Prem(N), Dongle.

As the first portable CMM arm in the market to be internationally certified to ISO 10360-12 standards, FARO has the ideal inspection tool solution, when accuracy is a must! Designed with consistency and reliability in mind, the FARO 3D measuring arm performs in a wide range of work environments including extreme temperatures, shop floors, and mobile environments.

This flagship arm establishes a new industry performance bar and extends our tradition of maximum measurement consistency and reliability in every working environment. It delivers best-in-class performance for both hard probing and laser scanning applications. The portable CMM helps manufacturers stay ahead of their competitors in an increasingly global manufacturing marketplace, by empowering better quality assurance and ensuring maximum customer confidence in their products and processes.

The FARO Quantum S 7-axis is a portable measurement arm that can be used for dimensional inspection, scanning, and quality control. It's used in many industries, including automotive and aerospace.

Features

• Accuracy: The Quantum S is known for its accuracy and versatility.
• Probe and scan: It can use contact-based probing or non-contact scanning.
• Consistency: The Quantum S is easy to use and ensures consistent operator results.
• Optimize operations: It can reduce scrap, rework, and inspection bottlenecks.
• Improve quality: It can run complex 3D inspections and automatic reports.
• Capture details: It can capture high measurement detail on complex parts and objects.
• Increase throughput: It can increase production rates and reduce verification downtime.

Applications Dimensional inspection, Scanning, Quality control, and Reverse engineering.

Other specifications

• The Quantum S has dual, hot swappable batteries.
• It has robust WiFi, an industrial grade wireless capability.
• It has FARO kinematic smart probes.
• It allows users to quickly and easily switch probes without the need to recalibrate.
