Used Digitrak Falcon F5 HDD for sale, bundle with 15” Transmitter, fully serviced and calibrated by DIGITRAK, like new, everything is in excellent perfect condition
The Falcon F5 is an extension of the classic F5 locating system.
DCI's revolutionary Falcon technology minimizes the effects ofactive interference (noise) on the jobsite with a single wideband transmitter.

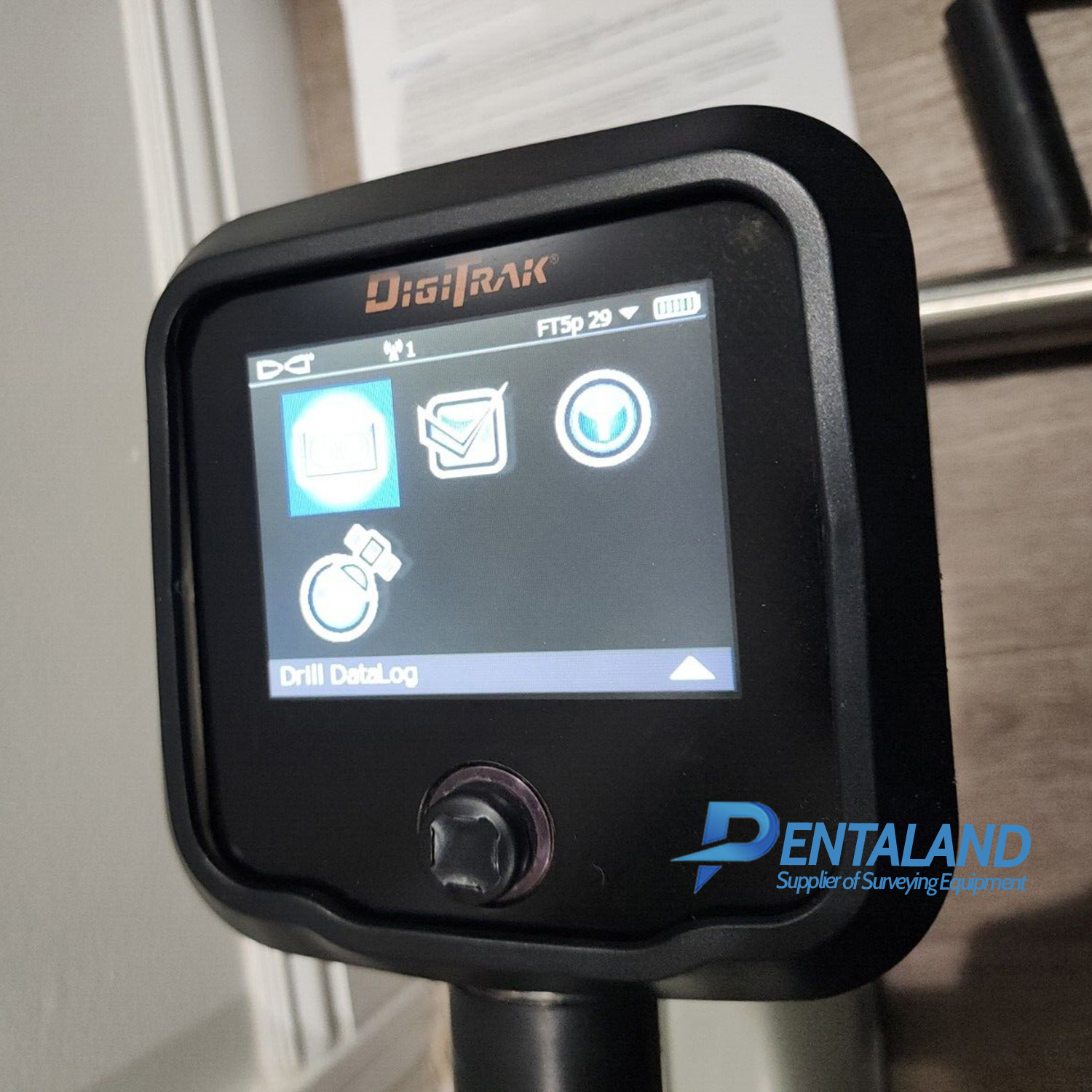

The Falcon F5 combines this new technology with everything a professional contractor values in DCI's flagship F5 locating platform, including superior ease of use, updated DataLog software, and fluid pressure monitoring.

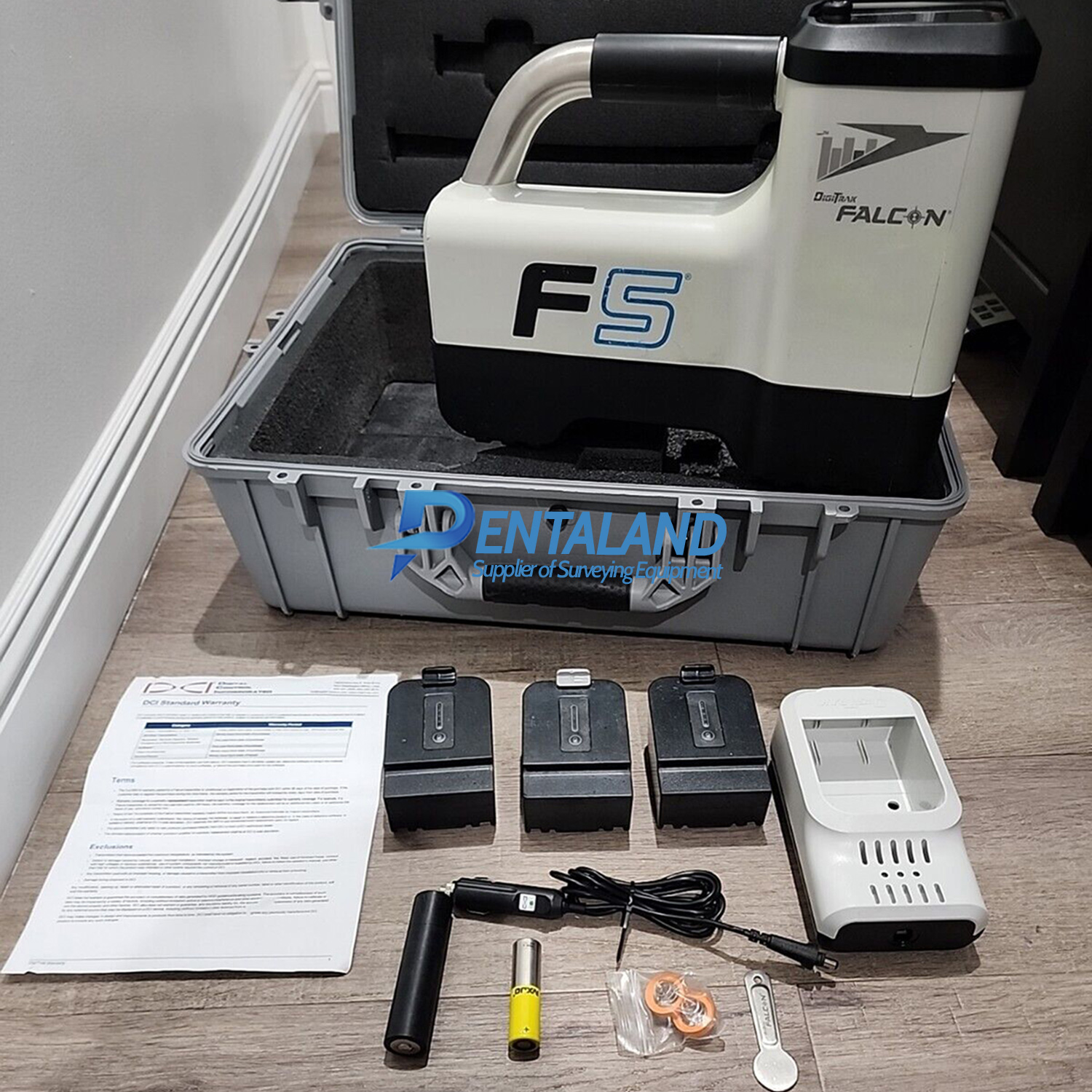

includes:

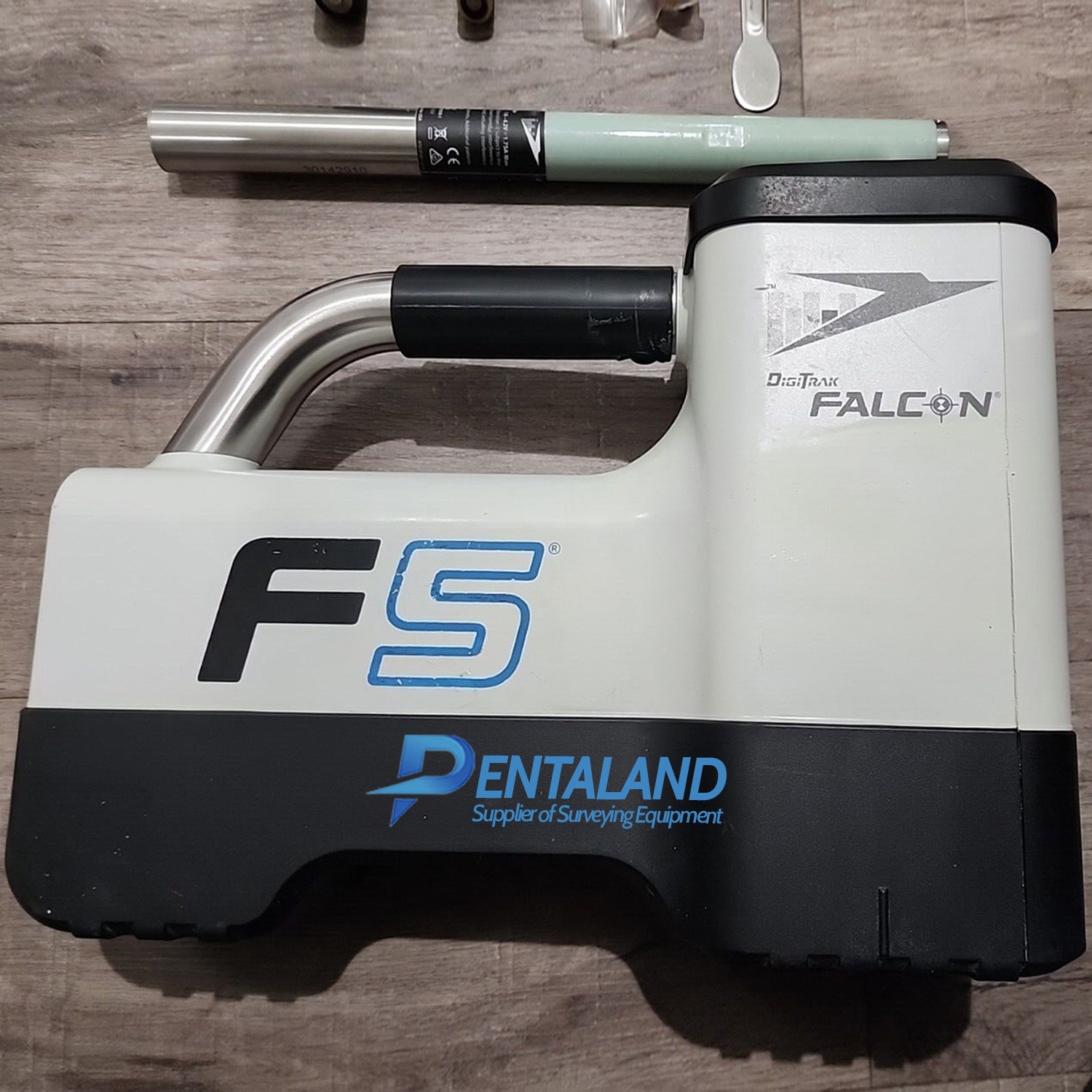

Digitrak Falcon F5 HDD system
3 batteries
Charger

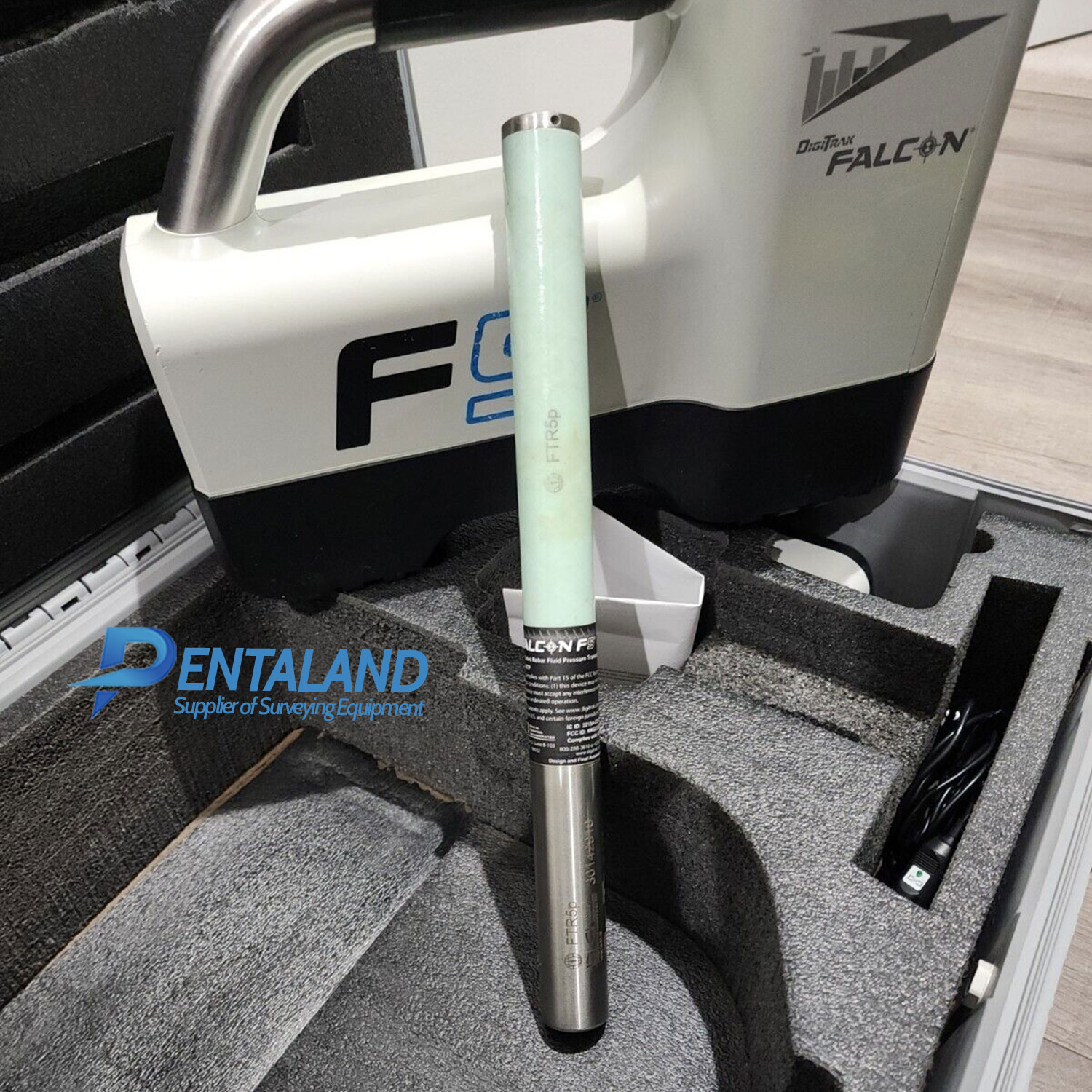

5” sub-k rebar fluid pressure transmitter (model: BTP FTR5P)
User Manual

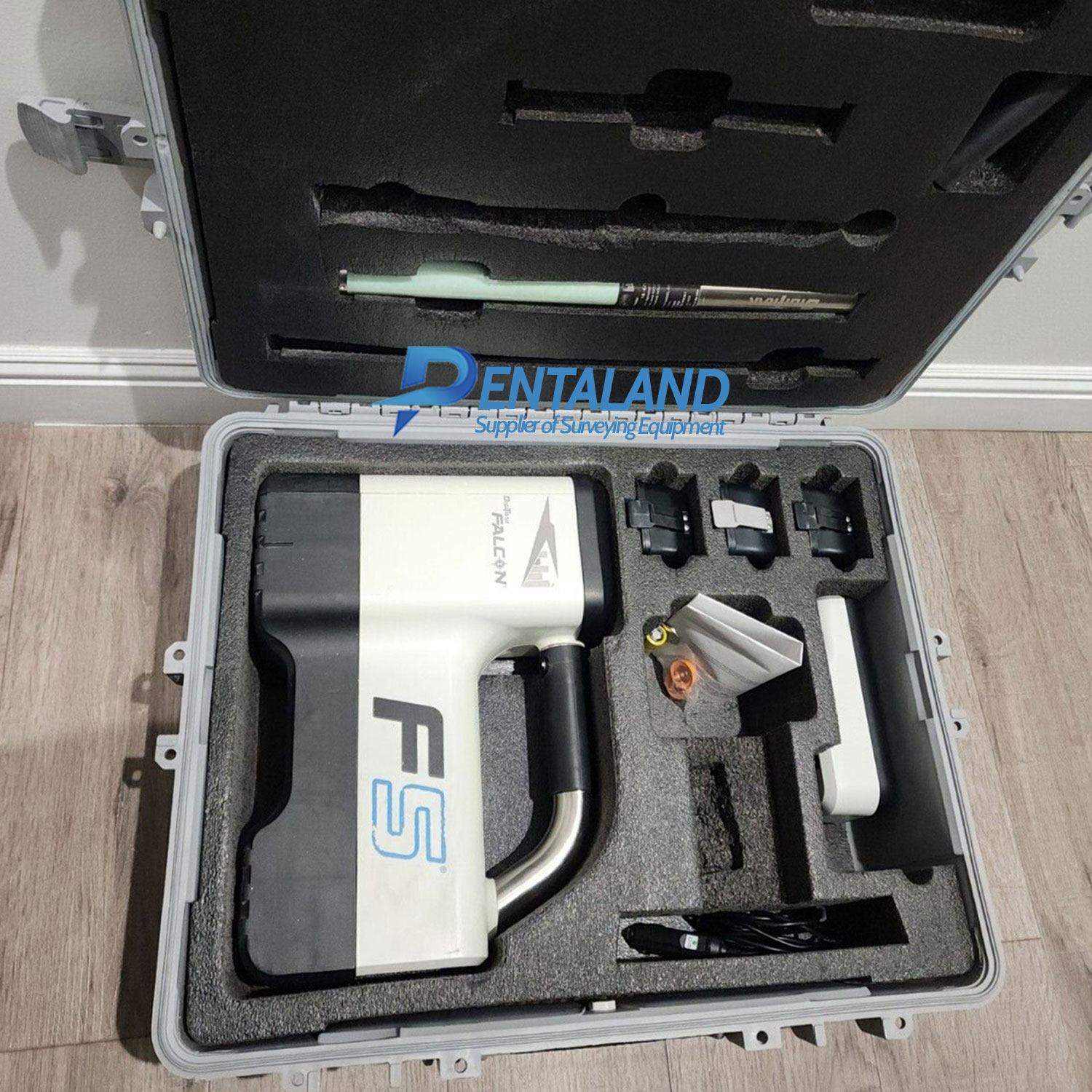

Hard Case
1-year warranty
Digitrak Falcon F5 HDD system Brochure
Specifications:

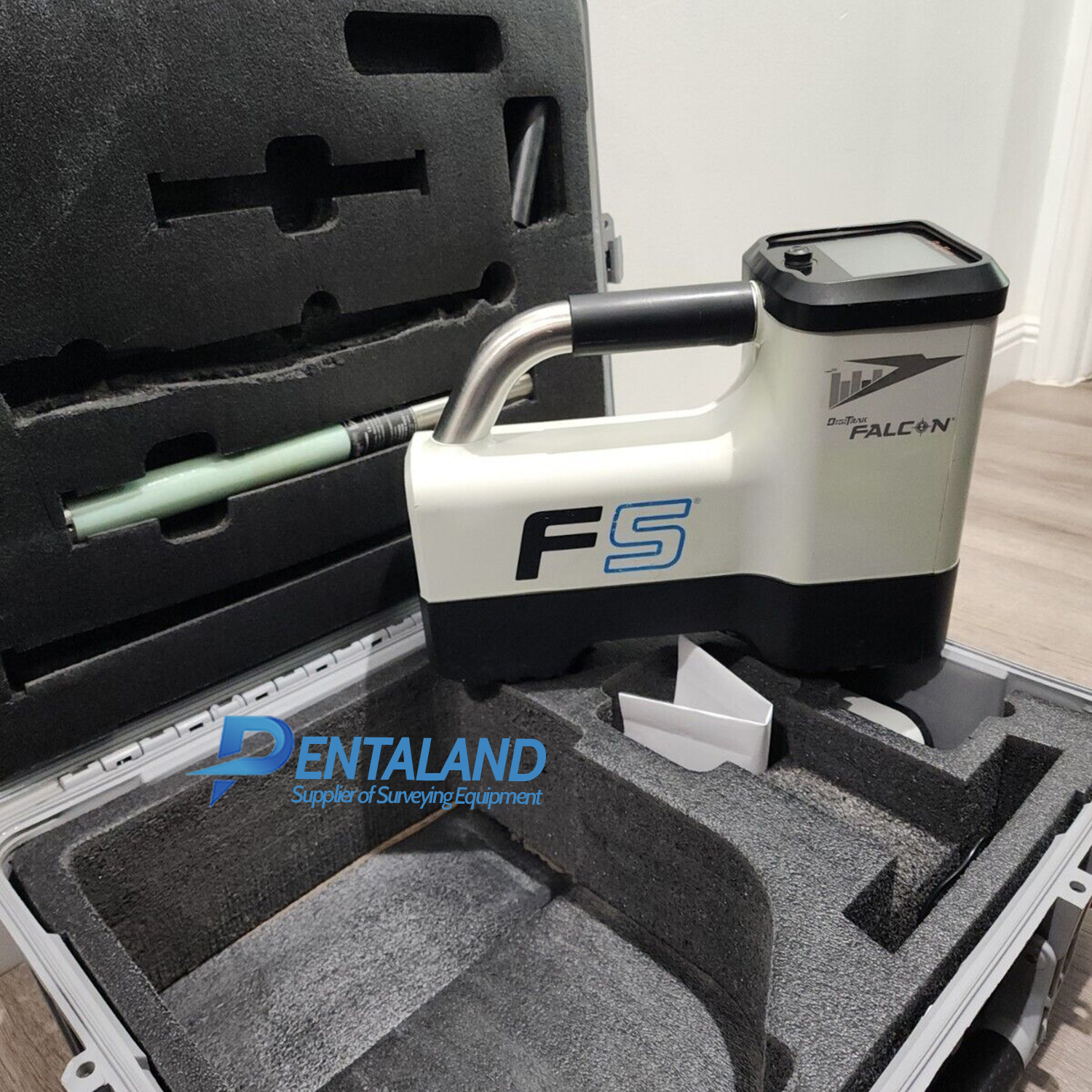

| Receiver Specifications | |
| Product ID | FF5 |
| Model Number | FAR5 |
| Receiving frequencies | 4.5–45.0 kHz |
| Telemetry channels | 4 |
| Telemetry range | defined by remote display |
| Power source | Lithium-ion battery pack |
| Battery life | 8–12 hrs |

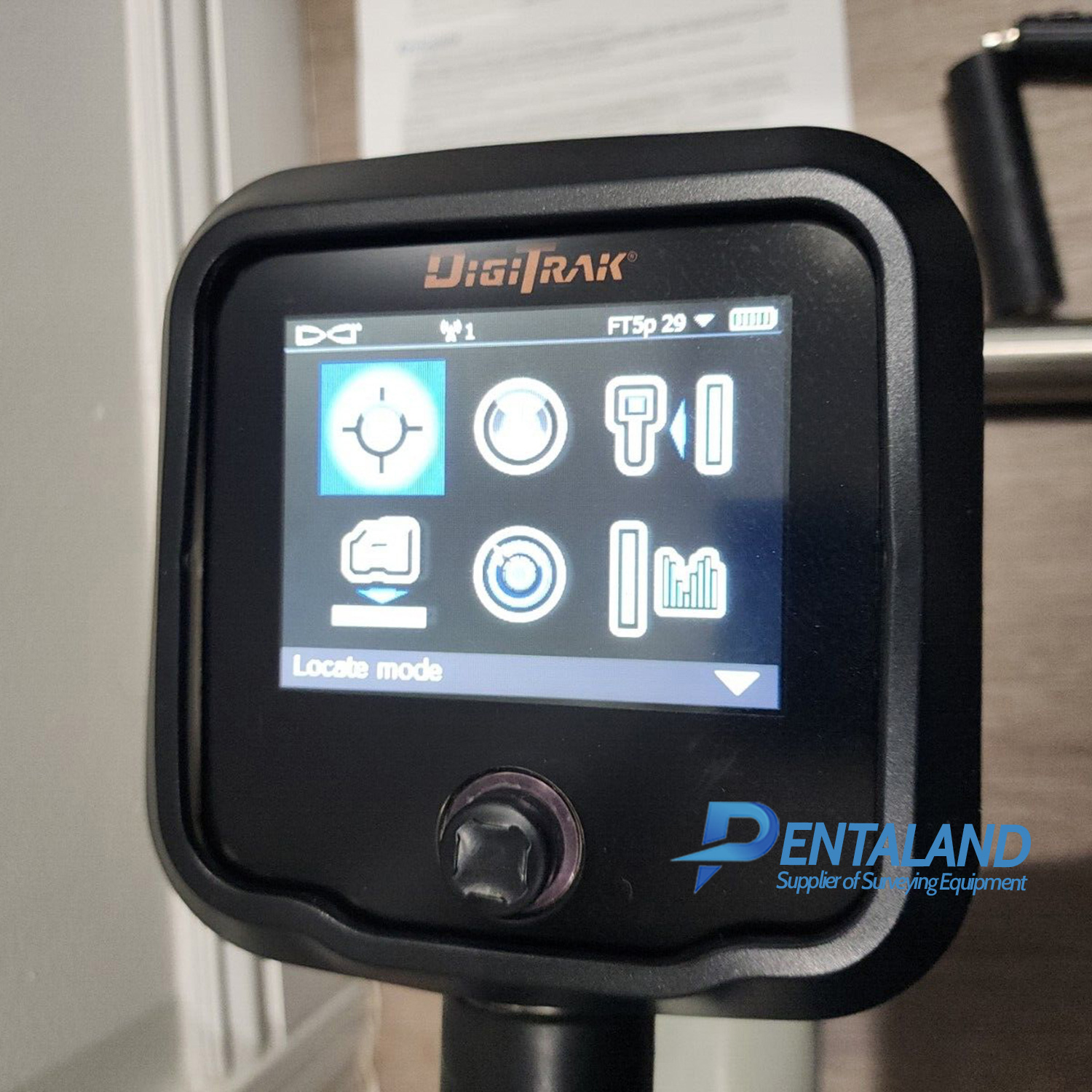

| Functions | Menu-driven |
| Controls | Trigger and toggle switches |
| Graphic display | Full-color LCD |
| Audio output | Beeper |
| Operating temperature | -4 to 140° F |
| Accuracy | ±5% |
| Voltage | 14.4 VDC nominal |
| Current | 390 mA max |
| Dimensions | 11 x 5.5 x 15 in. |
| Weight (with battery) | 8.5 lb |
| Transmitter Specifications | |
| Product ID | FT5p |
| Model number | BTP |
| Transmitting frequencies | .4.5–45.0 kHz |
| Pitch resolution | ±0.1% at level |
| Data range | 125 ft |
| Depth range | 100 ft. |
| Battery life | up to 20/70 hrs alkaline/SuperCell |
| Voltage | 1.2–4.2 VDC nominal |
| Current | 1.75 A max |
| Weight (without batteries) | 1.7 lb |
| Length x diameter | 15 x 1.25 in. |
| Aurora Touchscreen Display Specifications | |
| Product ID/Model number | AF10 |
| Power source - cabled | 10–28 VDC |
| Current | 2.1 A maximum |
| Controls | 10.4 in. touchscreen |
| Graphic display | LCD |
| Audio output | Speaker |
| Telemetry range | 1800 ft. |
| Telemetry channels | 4 |
| Operating temperature | -4 to 140° F |
| Dimensions | 11.5 x 9.3 x 2.3 in |
| Weight | 6.4 lb |
