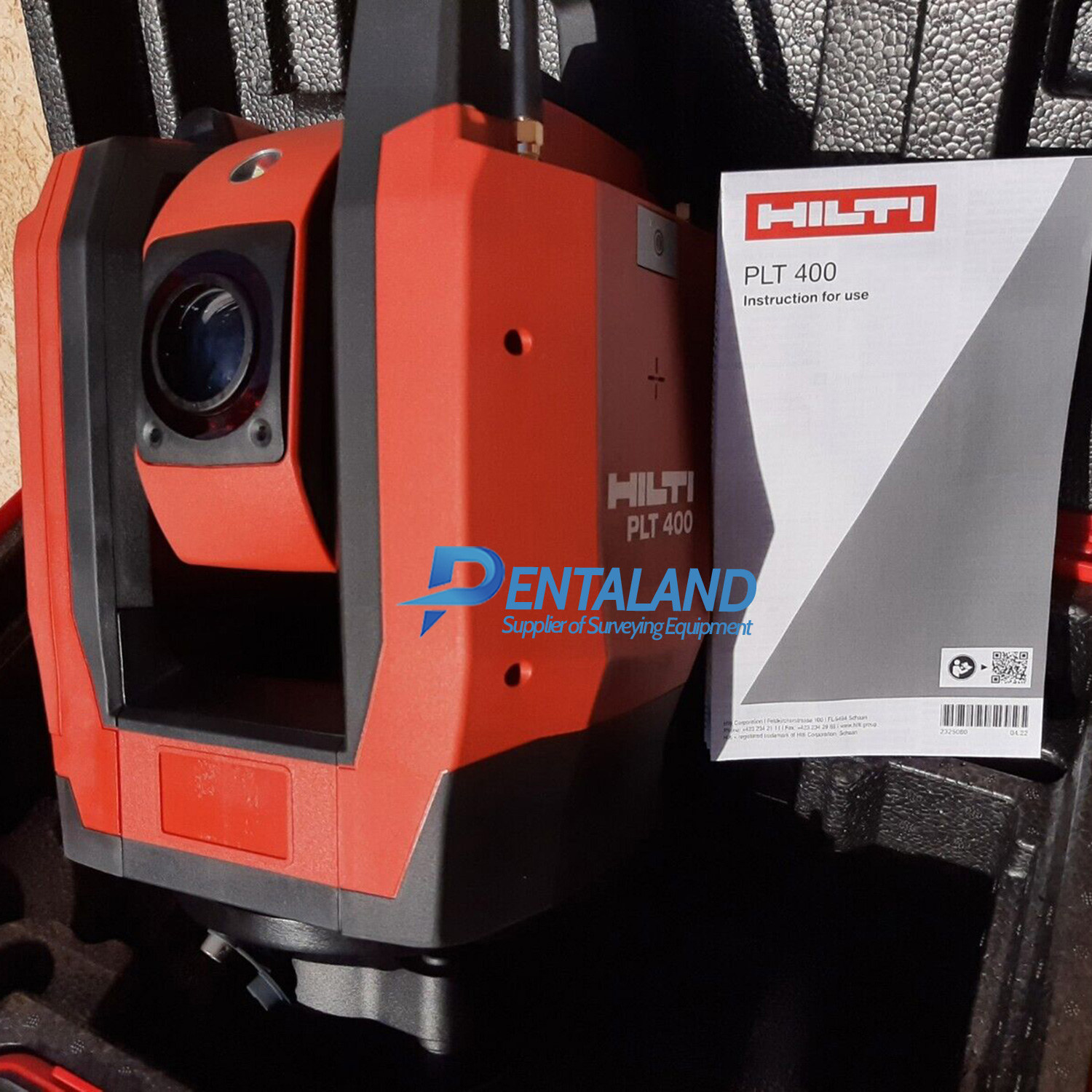

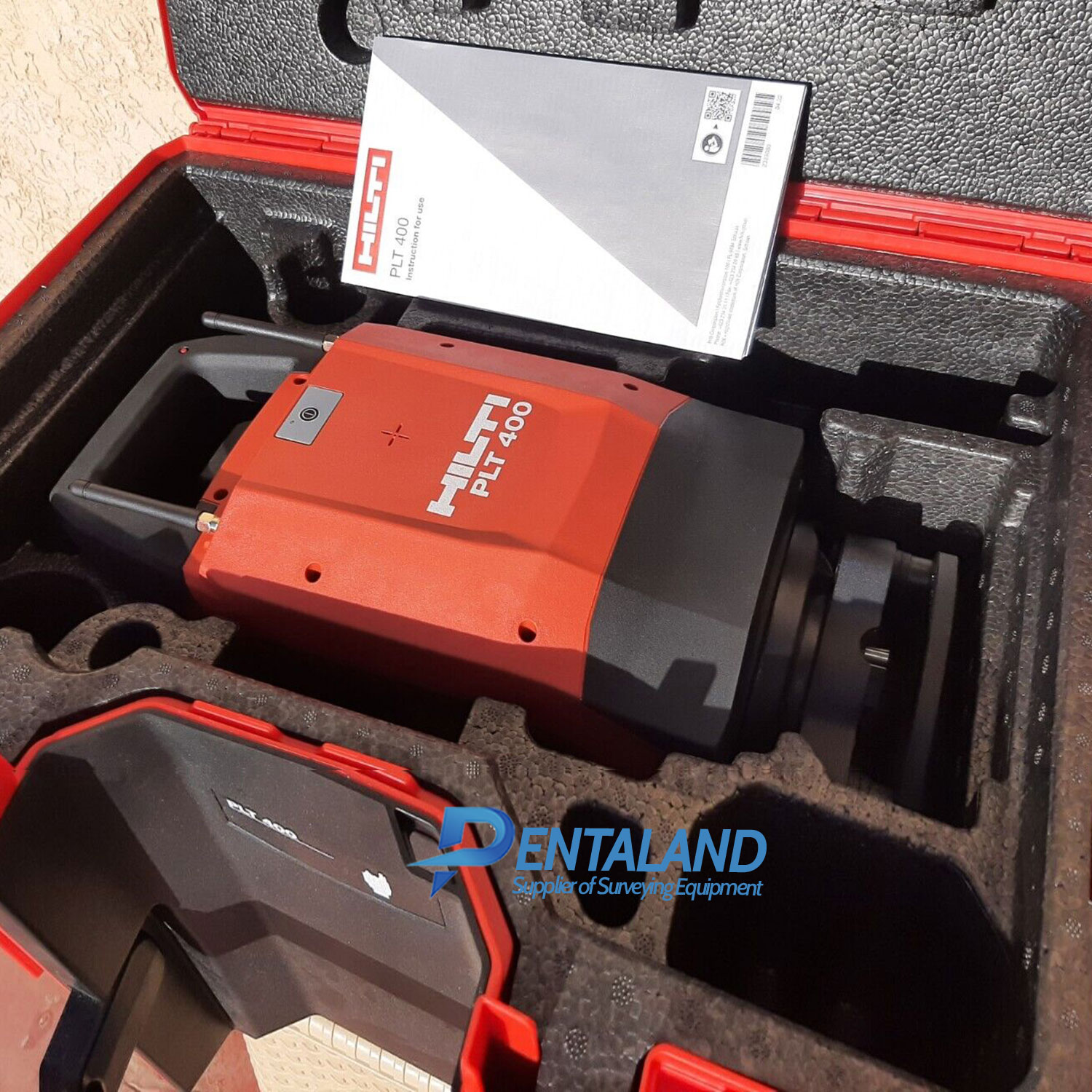

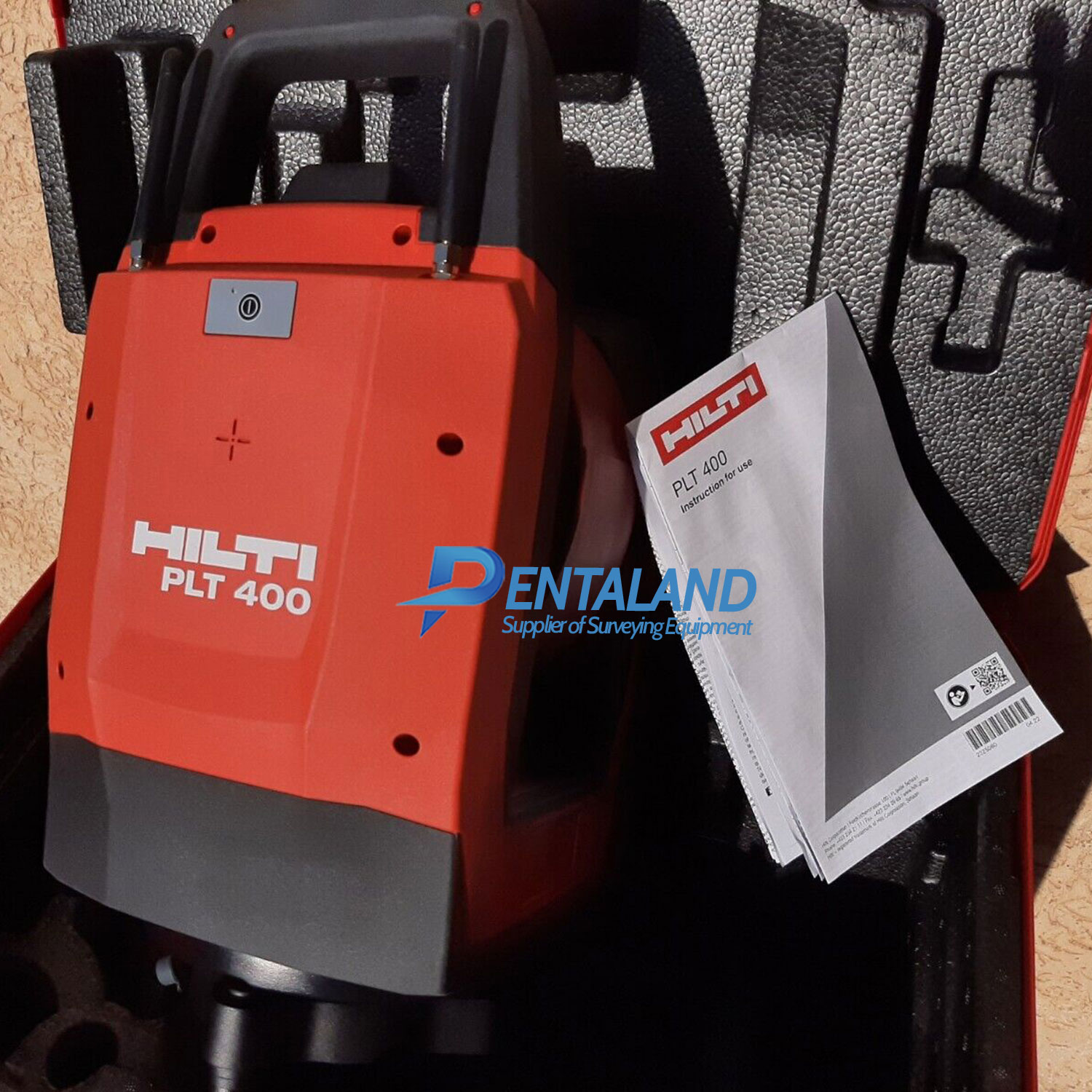

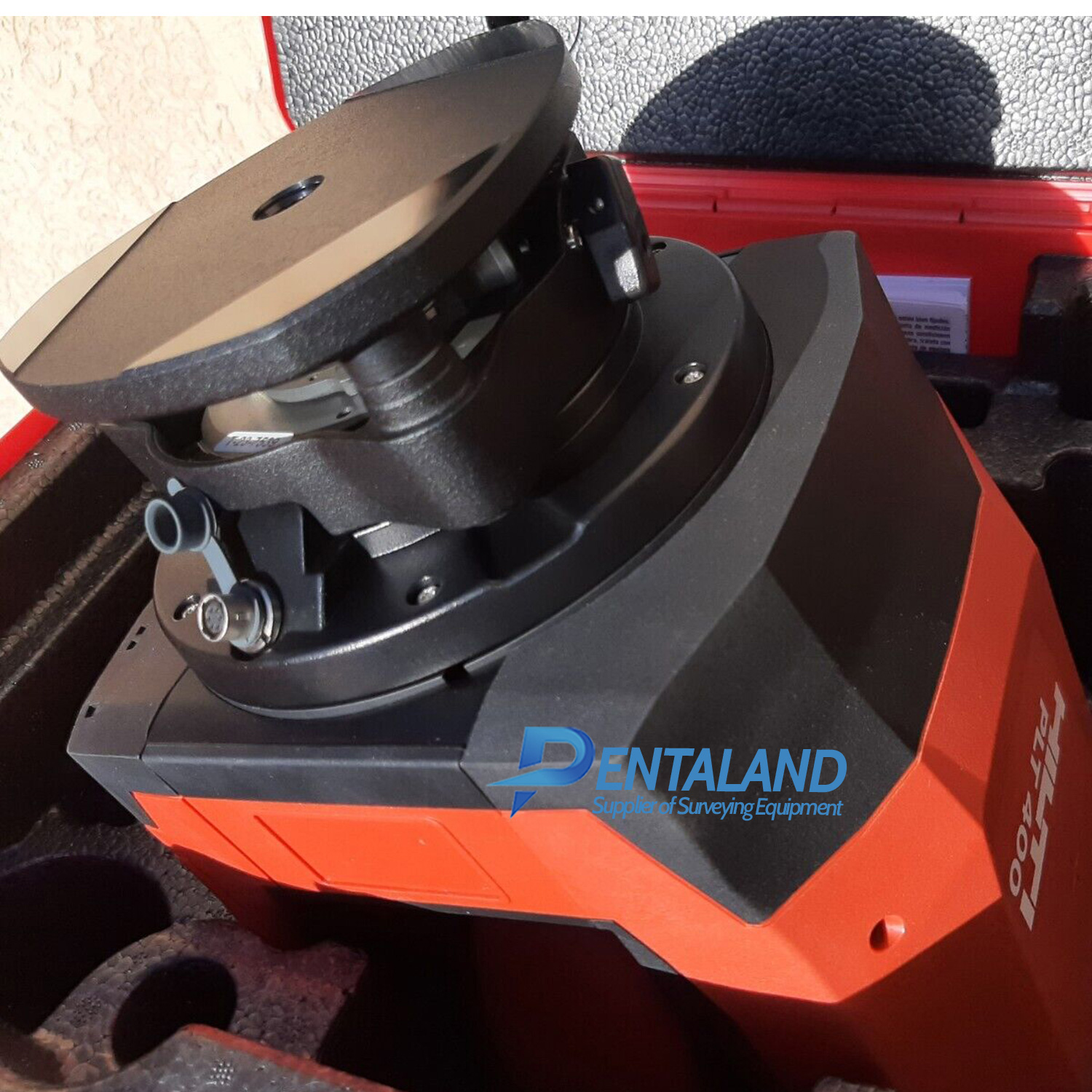

Used Hilti PLT 400 Digital Layout Total Station

$17,600

Used Hilti PLT 400-2 Digital Layout Total Station for sale, 2” angle measurement accuracy, like new, year 2023, fully serviced and calibrated by Hilti, everything is in excellent perfect condition

Share on:

Used Hilti PLT 400-2 Digital Layout Total Station for sale, 2” angle measurement accuracy, like new, year 2023, fully inspected, serviced and calibrated by Hilti authorized, everything is in excellent perfect condition.

Versatile and easy-to-use construction layout tool for one-person operation, with 2” angle measurement accuracy and extended range for faster stake out of positions on the jobsite

  •     Distance measurement accuracy: ±2 mm + 2 ppm
  •     Operating distance range – of remote control (diameter): 7 - 656 ft
  •     IP protection class: IP 55 (EN 60529)

Includes:
    1x HILTI PLT 400-2 #3832020 Layout tool

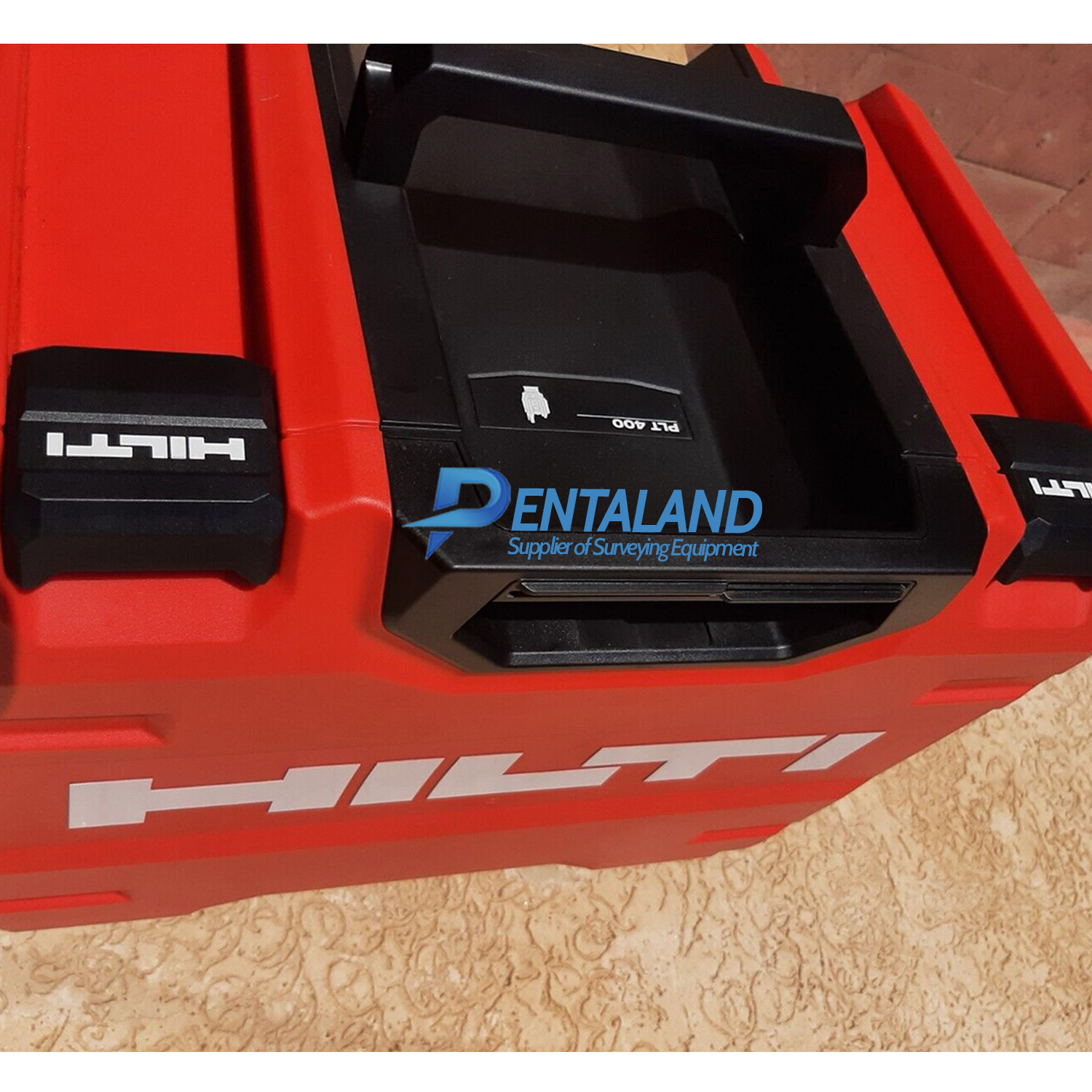

    1x PLT 400 Tool case assy
    1x C 4/36-90 100-127V Battery charger
    1x B 22/4.0 Battery pack
    1x POA 128 Backpack
    1x CFB1 Carry belt

Features:
  • Your one-for-all solution – ease of use combined with higher range, accuracy and versatility for all construction site layout and measuring tasks
  • Save time and labor – digital construction layout tools make staking out a much faster, one-person job by enabling direct access to your CAD/BIM elements without time-consuming preparation work
  • Highest flexibility – zoom camera for simpler long-range targeting, including fully automatic search for optional lock-on prisms or other targets
  • Extended working distance – up to 200 m diameter range as standard
  • Accurate for every point – the first construction layout tool worldwide with self-calibration and automatic diagnostics to help ensure more accurate work every time
Applications:
  • Staking out 2D and 3D positions on the jobsite
  • Layout and verification of foundations, underground plumbing, formwork and other important construction elements
  • Layout of fastening points, penetrations and sleeves on floors and ceilings
  • Setup via grid lines, ground control points, reflectors, prisms or existing elements like walls and columns
  • As-built measurements for documentation, calculation and quality control

Technical Data HILTI PLT 400 HEAD UNIT #3832020

  • Distance measurement accuracy: ±2 mm + 2 ppm
  • Operating distance range – of remote control (diameter): 7 - 656 ft
  • IP protection class: IP 55 (EN 60529)
  • Maximum operating time: 6 h
  • Battery type: Li-Ion B 22/4.0
  • Charging time: 0.25 h
  • Laser class: Class 2 (EN 60825)
  • Operating temperature range: -4 - 122 °F

Hilti PLT 400 Digital Layout Brochure
