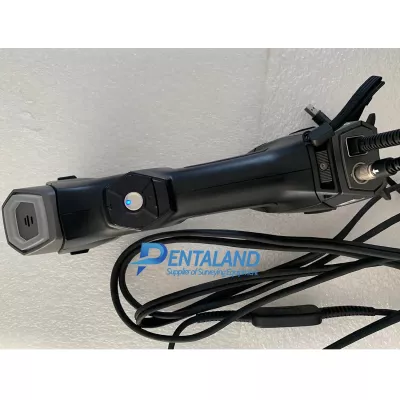

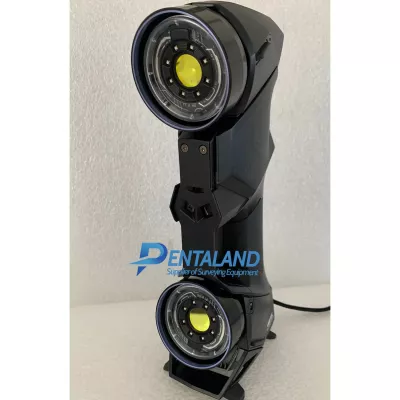

This Creaform HandySCAN BLACK Elite Used for normal job, has been carefully inspected and is in very good condition., this 3D measurements scanner regularly fully upgrade and calibrated by Creaform authorized to be ready to working and works flawlessly with CREAFORM working standards.
This Creaform HandySCAN BLACK Elite sale covering with 1 year CREAFORM extension warranty for both parts and labour and 30-day money back guarantee.
The Creaform HandySCAN BLACK Elite 3D Scanner, Faster 3D Scanning Process.
BLACK Series is the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere.
Multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file!
Product Includes:
HandySCAN Black Elite Series Portable 3D Laser Scanner
VXelements Software suite License (usb license dongle)
Carrying Case
4 Meter Custom USB Cable
Power Supply
Calibration Plate
2,000 Reflective Adhesive Scanning Targets
Interactive E-learning Subscription
12-month Customer Care Program
The brand new new HandySCAN BLACK Elite LIMITED also available for sale at our shop
Simplicity and Versatility
With its user-friendly interface and ergonomic design, this 3D measurement solution is easy-to-use and has a short learning curve. Its versatility gives the opportunity to scan various object sizes and surface types in real time—all with the same device.
VXelements
The HandySCAN 3D comes with VXelements, which powers our entire suite of 3D scanning and measurement technologies. It combines all the essential tools you need from data acquisition to CAD Software, in a user-friendly, simplified and sleek working environment.
Accuracy: 0.025mm (0.0009”)
Light Source: 11 blue laser crosses (+ 1 extra line)
Color Capture: No
Accuracy Certification: ISO 17025
Scanning Speed: 1,300,000 measurements per second
Scanning Area: 11 laser crosses
TECHNICAL SPECIFICATIONS:
| Version |
HandySCAN BLACK |
HandySCAN BLACK Elite |
Accuracy |
0.035 mm (0.0014 in) |
0.025 mm (0.0009 in) 0.012 mm (0.0005 in) with Limited Edition |
| Volumetric accuracy | 0.020 mm + 0.060 mm/m (0.0008 in + 0.0007 in/ft) |
0.020 mm + 0.040 mm/m (0.0008 in + 0.0005 in/ft) 0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft) with Limited Edition |
| Volumetric accuracy with MaxSHOT Next Elite | 0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) | |
| Measurement resolution | 0.025 mm (0.0009 in) | |
| Mesh resolution | 0.100 mm (0.0039 in) | |
| Measurement rate | 800,000 measurements/s | 1,300,000 measurements/s |
| Light source | 7 blue laser crosses | 11 blue laser crosses (+ 1 extra line) |
| Laser class | 2M (eye-safe) | |
| Scanning area | 310 x 350 mm (12.2 x 13.8 in) |
|
| Stand-off distance | 300 mm (11.8 in) |
|
| Depth of field | 250 mm (9.8 in) |
|
| Part size range (recommended) | 0.05–4 m (0.15–13 ft) |
|
| Software | VXelements | |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf | |
| Compatible software | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) | |
| Weight | 0.94 kg (2.1 lb) | |
| Dimensions (LxWxH) | 79 x 142 x 288 mm (3.1 x 5.6 x 11.3 in) |
|
| Connection standard | 1 X USB 3.0 | |
| Operating temperature range | 5-40 °C (41-104 °F) |
|
| Operating humidity range | 10-90% | |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE | |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X | |
